DC/DC Converter 120W 24V 5A | PRO DCDC

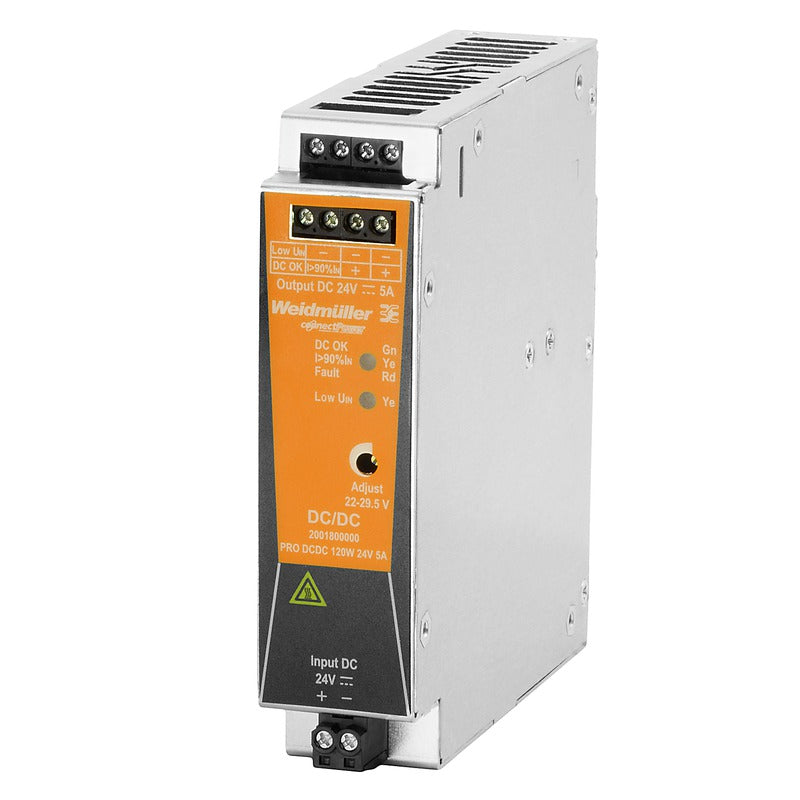

The Weidmüller PRO DCDC 120W 24V 5A is a DIN-rail DC/DC converter that takes a nominal 24 V DC supply and produces a regulated, galvanically isolated 24 V DC output at up to 5 A. It is used to decouple an instrument or safety-related circuit from the main 24 V rail, or to restore voltage at the far end of a long DC run, in a housing only 32 mm wide.

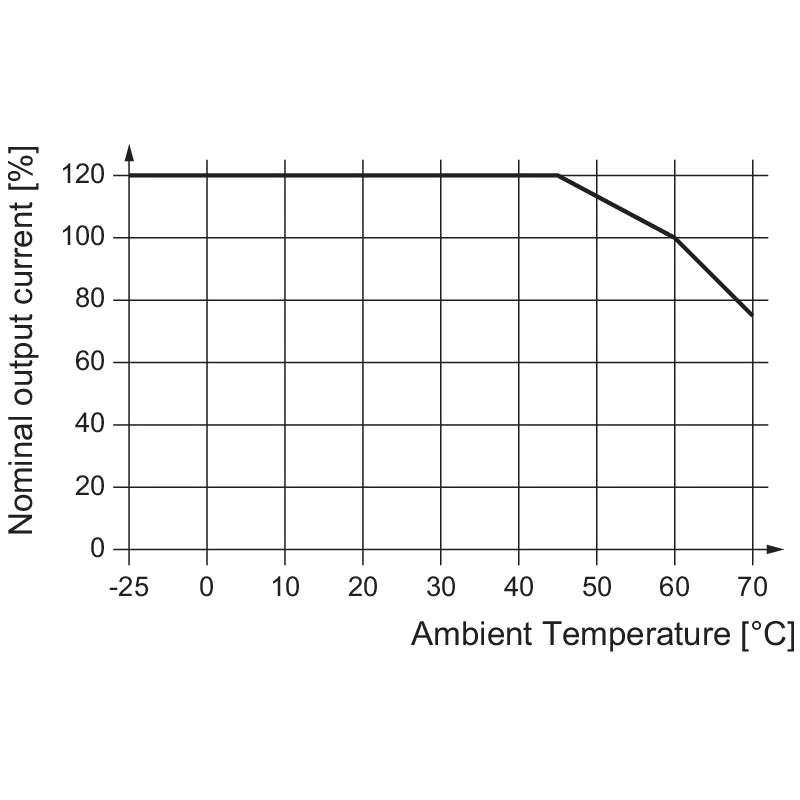

• Output: 24 V DC ± 1 %, 5 A at 60 °C (6 A maximum), potentiometer adjustable
• Continuous power: 120 W

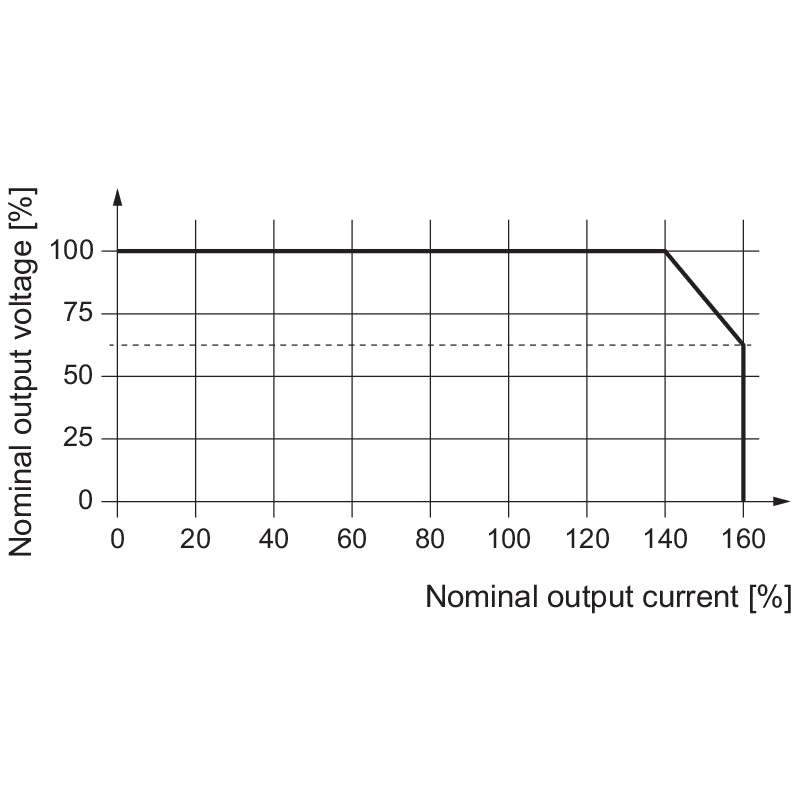

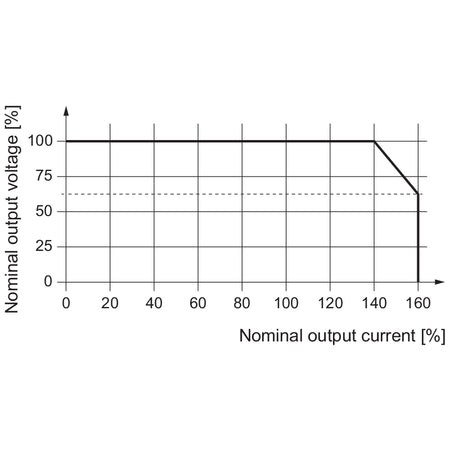

• Peak capability: 150 % for 5 s, 200 % for 200 ms, 300 % for 100 ms, 600 % for 20 ms
• Input: 14-32 V DC in operation, 18-32 V DC required to start
• Efficiency: Typically 92 %
• Isolation: 1.5 kV input to output, protection class III for earth-free systems
• Connection: Screw terminals, reverse-polarity protected on input and output
• Operating temperature: -25 °C to +70 °C, horizontal on TS 35 DIN rail
• Dimensions: 32 x 130 x 120 mm (W x H x D), 656 g
