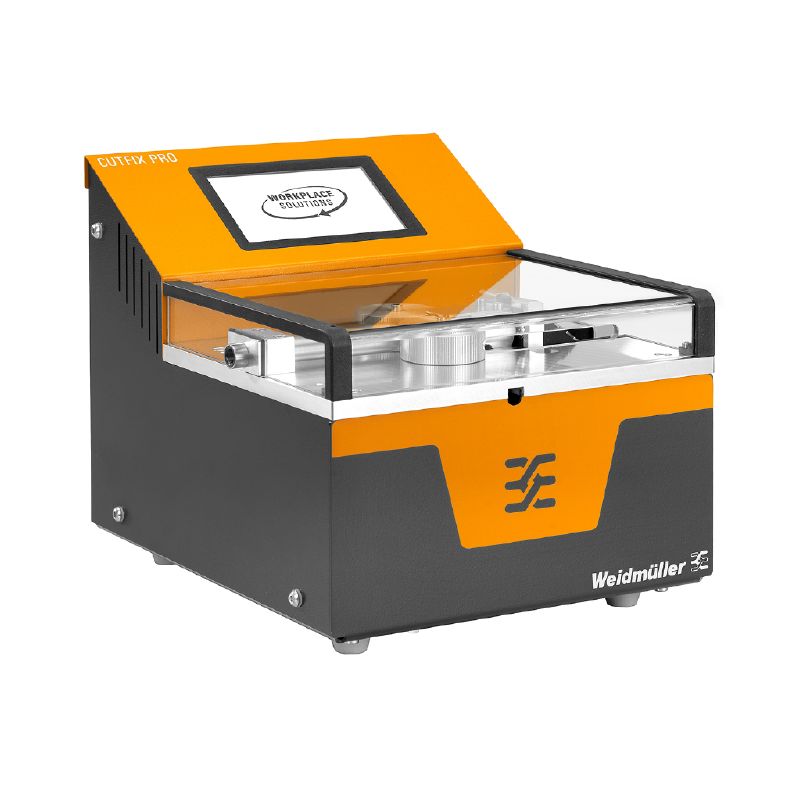

Cutfix Pro Semi-Automatic Cable Cutting Machine
Ask an expert!
Automate your cutting workflow with software-driven precision.
The CUTFIX PRO is a semi-automatic cutting machine designed to bridge the gap between manual cutting and fully automated processing centres. It is engineered for panel builders and switchgear manufacturers who need to process flexible conductors (up to 10mm²) and solid conductors (up to 6mm²) with high repeatability and zero waste.
Unlike standard benchtop cutters, the CUTFIX PRO integrates directly with your planning software. It accepts cutting jobs via USB or Ethernet, allowing you to import project data directly from CAE systems (like EPLAN or Weidmüller Configurator). This eliminates manual data entry errors and ensures every wire is cut to the exact millimetre required by the schematic.
Key Benefits:
- Data Integration: Reads CSV cutting lists and project files directly, removing the need for manual keypad entry.
- Precision & Speed: High-speed drive ensures consistent lengths, reducing material scrap common with manual measuring.
- Versatility: Handles a wide range of PVC-insulated cables, from fine 0.08mm² control wires to 10mm² power cables.
- User Interface: Features a 5-inch touch display for easy job management and machine status monitoring.
Technical Specifications:
- Flexible Conductor Capacity: 0.08mm² – 10mm²
- Solid Conductor Capacity: 0.08mm² – 6mm²
- Feed Rate: Adjustable for delicate insulation.
- Interface: USB, Ethernet.
- Power Supply: 100–240 V AC.
