Current Measuring Transducer, Limit Value Monitoring, Input : 0…5/10 A, Analogue & Relay Output - ACT20P-CMT-10-AO-RC-S

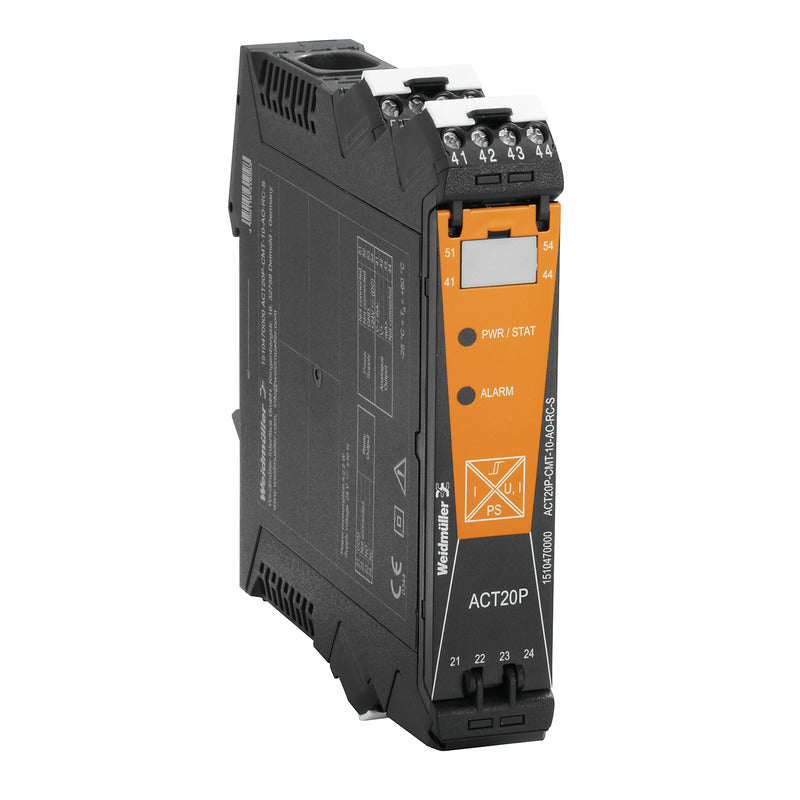

The Weidmüller ACT20P-CMT-10-AO-RC-S is a DIN rail mounted current measuring transducer with limit value monitoring, converting an AC or DC current of up to 10 A into a standard analogue signal. It covers the low-current end of the ACT20P-CMT range where the 40/50/60 A version would give poor resolution, and the relay changeover contact provides an independent overcurrent or undercurrent alarm alongside the analogue output.

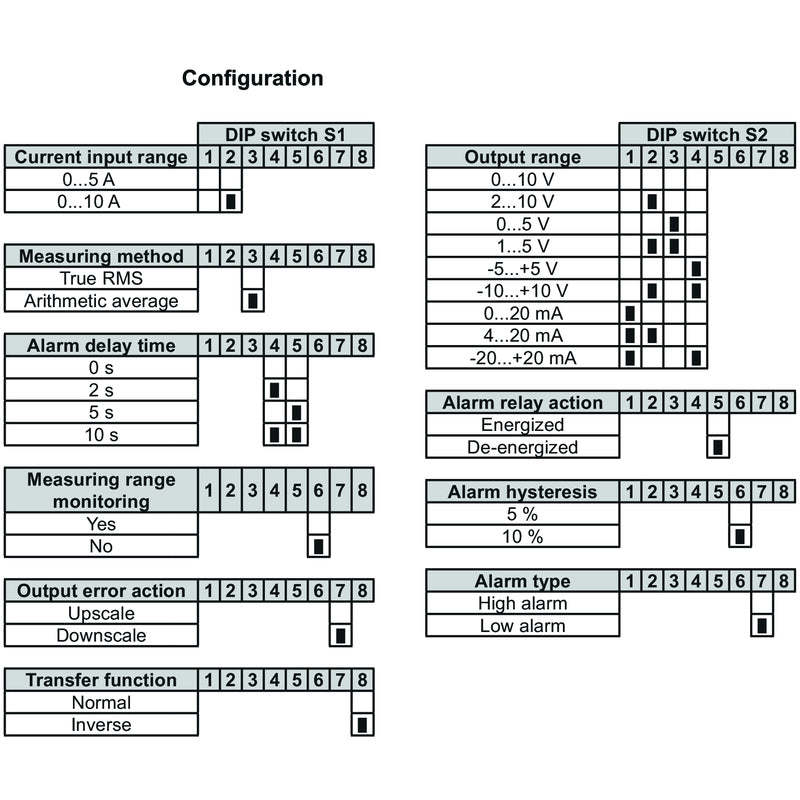

• Measuring ranges: configurable 0…5 A or 0…10 A, AC (RMS) or DC; AC 15…700 Hz true RMS
• Analogue output: 0…10 V, 2…10 V, 0…5 V, 1…5 V, ±5 V, ±10 V, or 0…20 mA, 4…20 mA, ±20 mA
• Relay output: 1 changeover contact, normal or inverse, 6 A rated switching current, max. 250 V AC

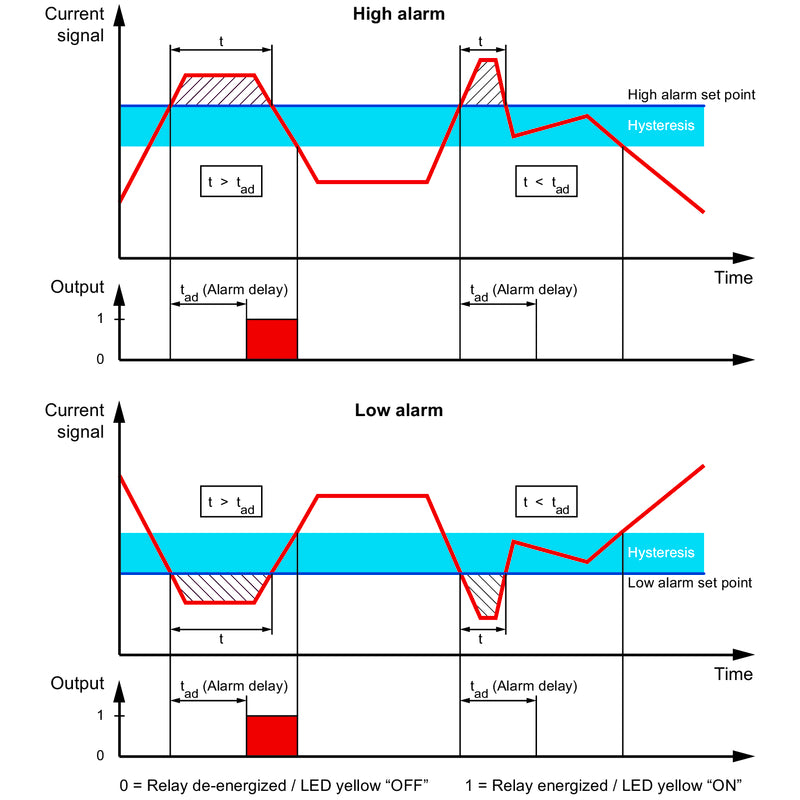

• Limit value monitoring: overcurrent and undercurrent, alarm limits 2–105 %, hysteresis 5 % or 10 %, delay 0…10 s
• Accuracy: <0.75 % FSR
• Response time: ≤300 ms true RMS, ≤60 ms arithmetic averaging
• Supply voltage: 16.8…31.2 V

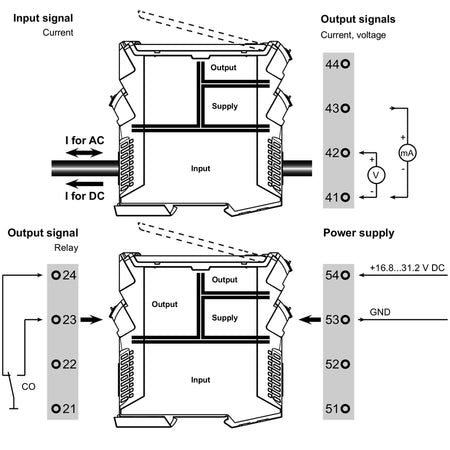

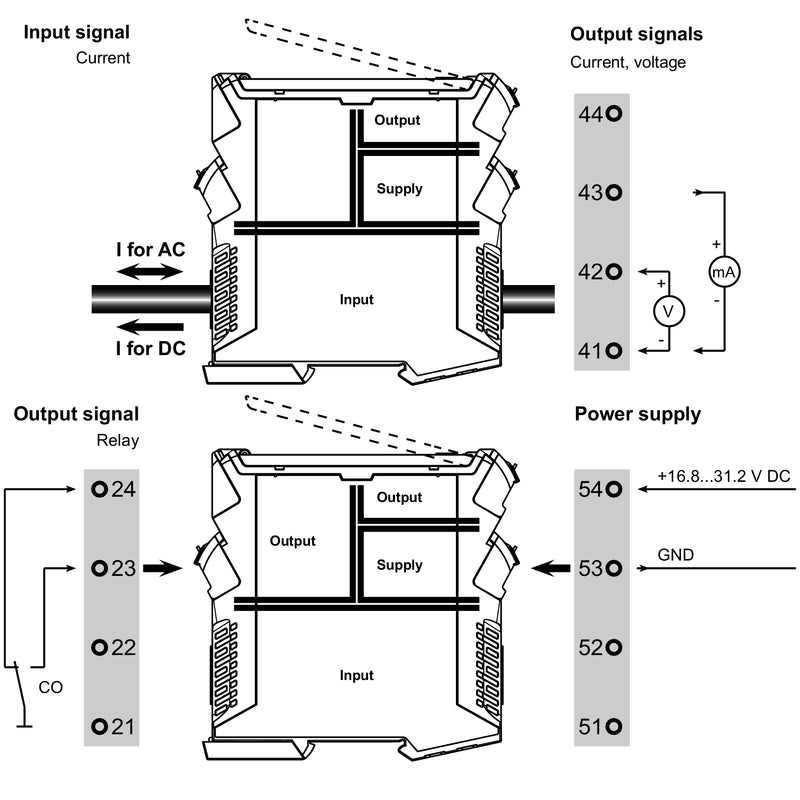

• Isolation: 4-way between input, output, supply and relay

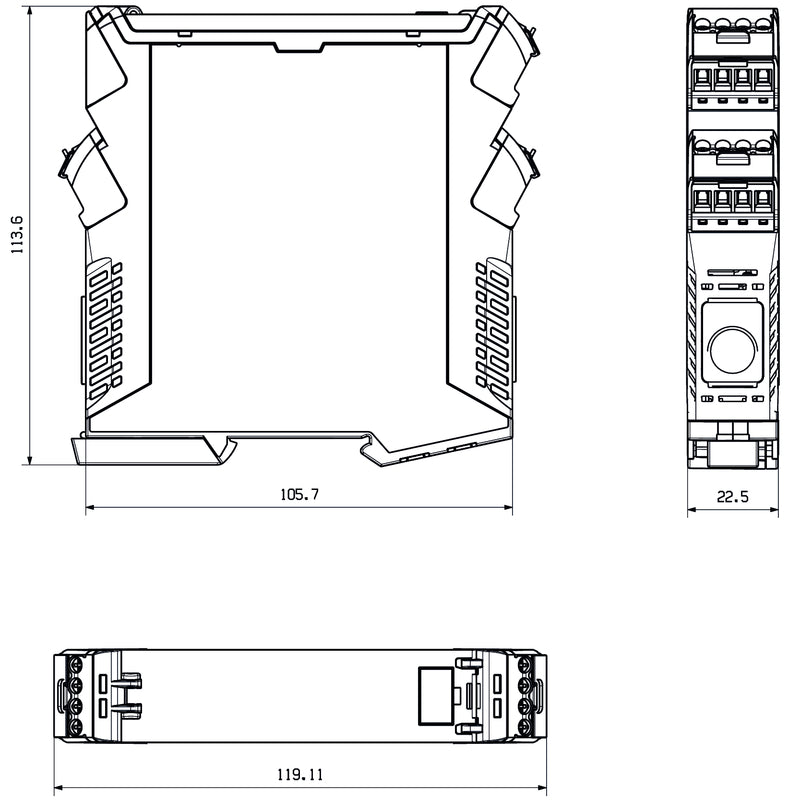

• Mounting: TS 35 DIN rail, 22.5 mm wide
