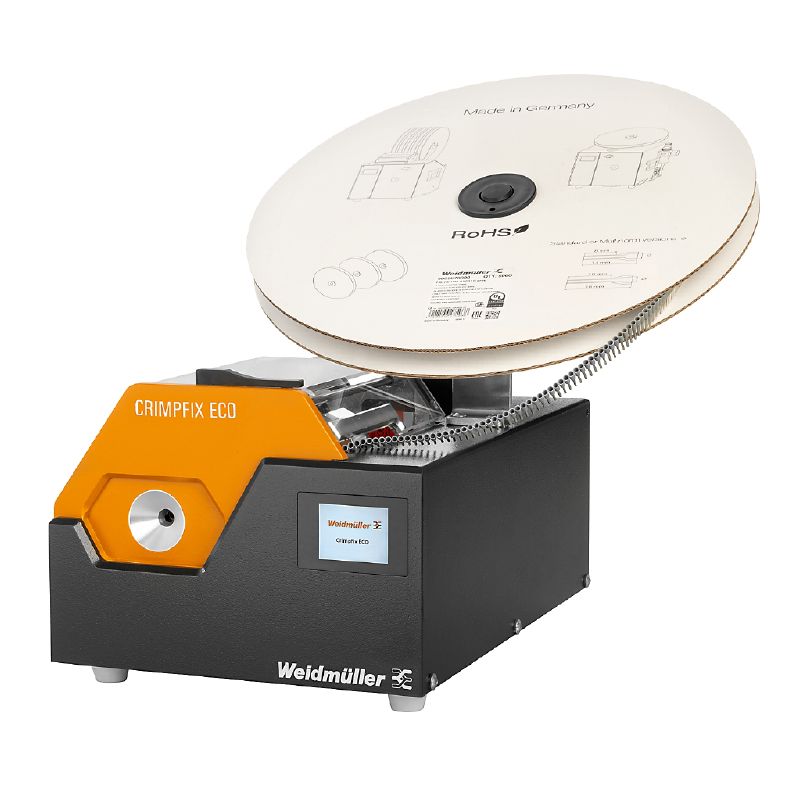

Crimpfix Eco Automatic Crimping Machine
Ask an expert!
All-electric automatic stripping and crimping.
The CRIMPFIX ECO is an automated solution for stripping and crimping loose wire-end ferrules (bootlace ferrules) onto flexible conductors. Designed for efficiency and sustainability, it utilises a purely electric drive system, eliminating the need for loud, energy-intensive compressed air supplies.
This machine is ideal for workshops requiring rapid changeovers. It handles cross-sections from 0.5mm² to 2.5mm² without complex re-tooling. By automating the strip-and-crimp cycle, it significantly reduces operator fatigue (RSI risk) associated with high-volume manual crimping, while guaranteeing a consistent gas-tight connection every time.
Key Benefits:
- Electric Drive: Plug-and-play operation (230V) with no pneumatic maintenance or air leaks.
- Process Reliability: Automated cycle prevents "under-crimping" or insulation damage.
- Compact Footprint: Small enough for standard workbenches; lightweight (13kg) for portability.
- Fast Payback: Drastically reduces processing time per wire compared to hand tools.
Technical Specifications:
- Crimping Range: 0.5mm² – 2.5mm².
- Cycle Time: Approx. 1.5 seconds.
- Crimp Shape: Trapezoidal.
- Consumables: Loose wire-end ferrules with plastic collars.
Crimping Tools
2903690000 | PZ 2.5 S Crimping Tool
Category: Crimpers & Pliers
Description: Compact crimping tool for bootlace ferrules up to 2.5mm². The PZ 2.5 S features a reduced handle opening width (30% smaller than standard), making it the optimal choice for technicians with smaller hands or for repetitive work where grip fatigue is a factor.
- Range: 0.14mm² – 2.5mm².
- Profile: Trapezoidal crimp.
9006120000 | CTI6 Crimping Tool
Category: Crimpers & Pliers
Description: Heavy-duty tool for insulated lugs and connectors (Red, Blue, Yellow). The CTI6 utilises a double-crimp profile that secures both the conductor and the insulation simultaneously, ensuring mechanical stability and vibration resistance.
- Range: 0.5mm² – 6mm².
- Mechanism: Ratchet lock guarantees full crimp cycle.
