Chrome Quarter Turn Lock Keyed for Electrical Enclosures — IP Enclosures
IP-L047 - image 2
Chrome Quarter Turn Lock Keyed for Electrical Enclosures — IP Enclosures
IP-L047 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

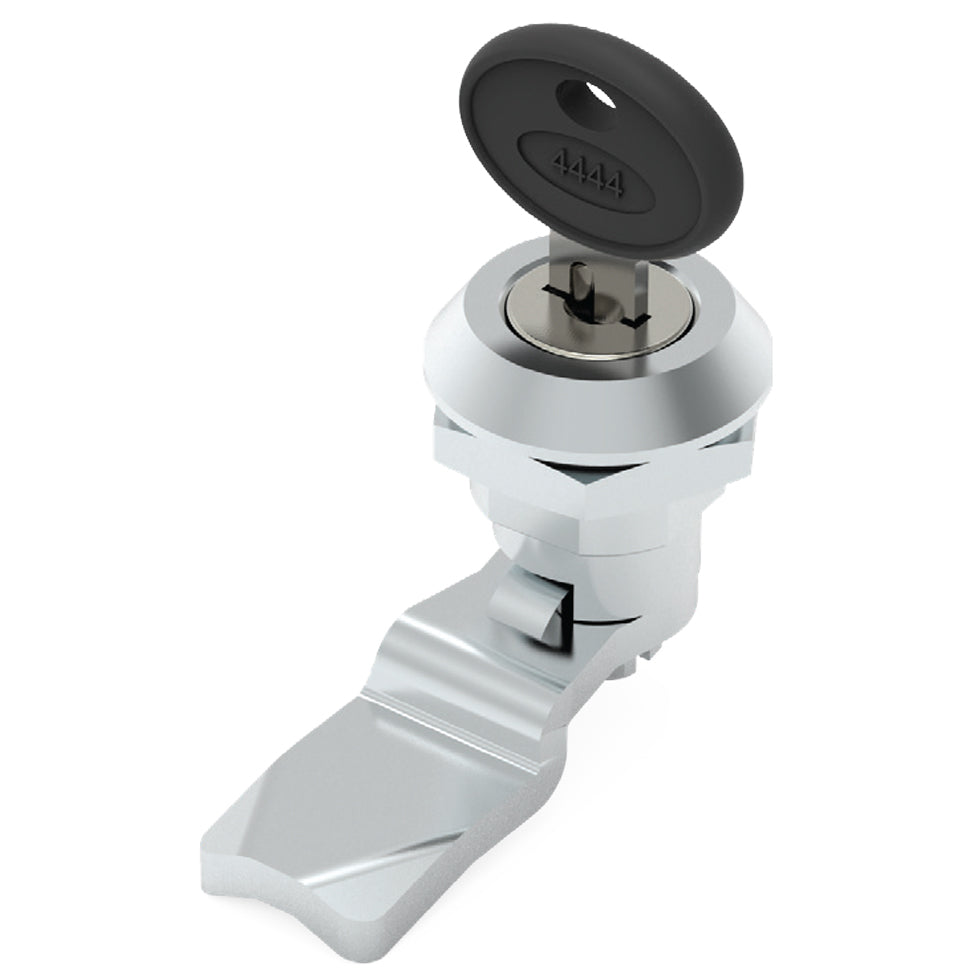

Chrome Quarter Turn Lock Keyed for Electrical Enclosures

SKU
$13.55 ex. GST $14.91 inc. GST
In stock
344 in stock across 2 warehouses
  • Type Quarter Turn
  • Material Chrome
  • Colour Chrome
  • IP Rating IP66

Standards & certifications

IP66Dust-tight · powerful jets

Chrome Quarter Turn Lock Keyed for Electrical Enclosures

FEATURES

- IP66

– Cam does not rotate beyond quarter turn due to stop lip.

MATERIAL

HOUSING: Zamak DIN-EN 1774-ZnAl4Cu1
DRIVER: Zamak DIN-EN
CAM: Steel
GASKET: Rubber
FINISH: Chrome
IP RATING: IP66

DRIVERS

IP-L047: Keyed Alike

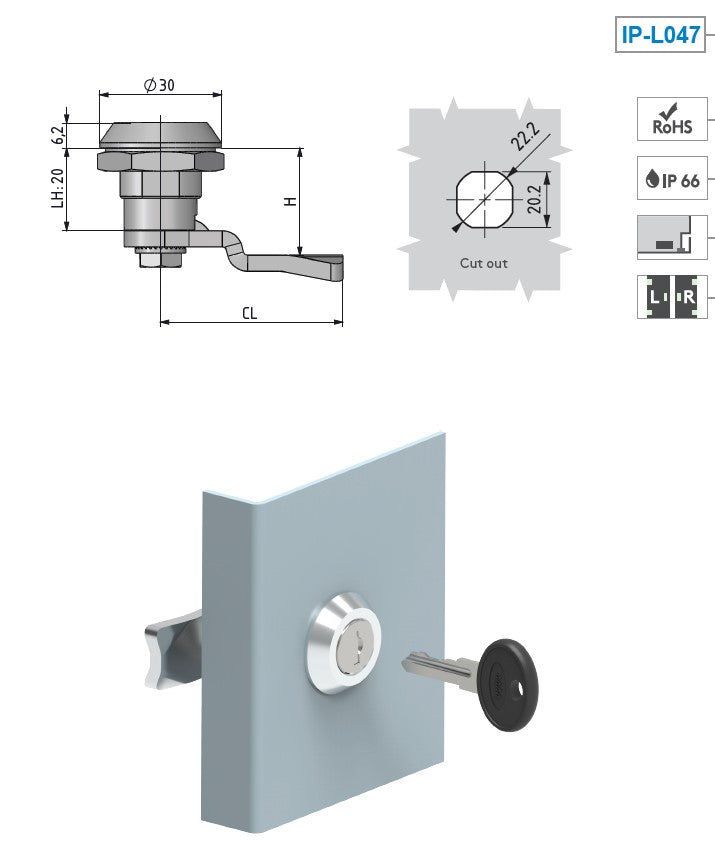

DIMENSIONS

H=27mm

CL=49mm

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
