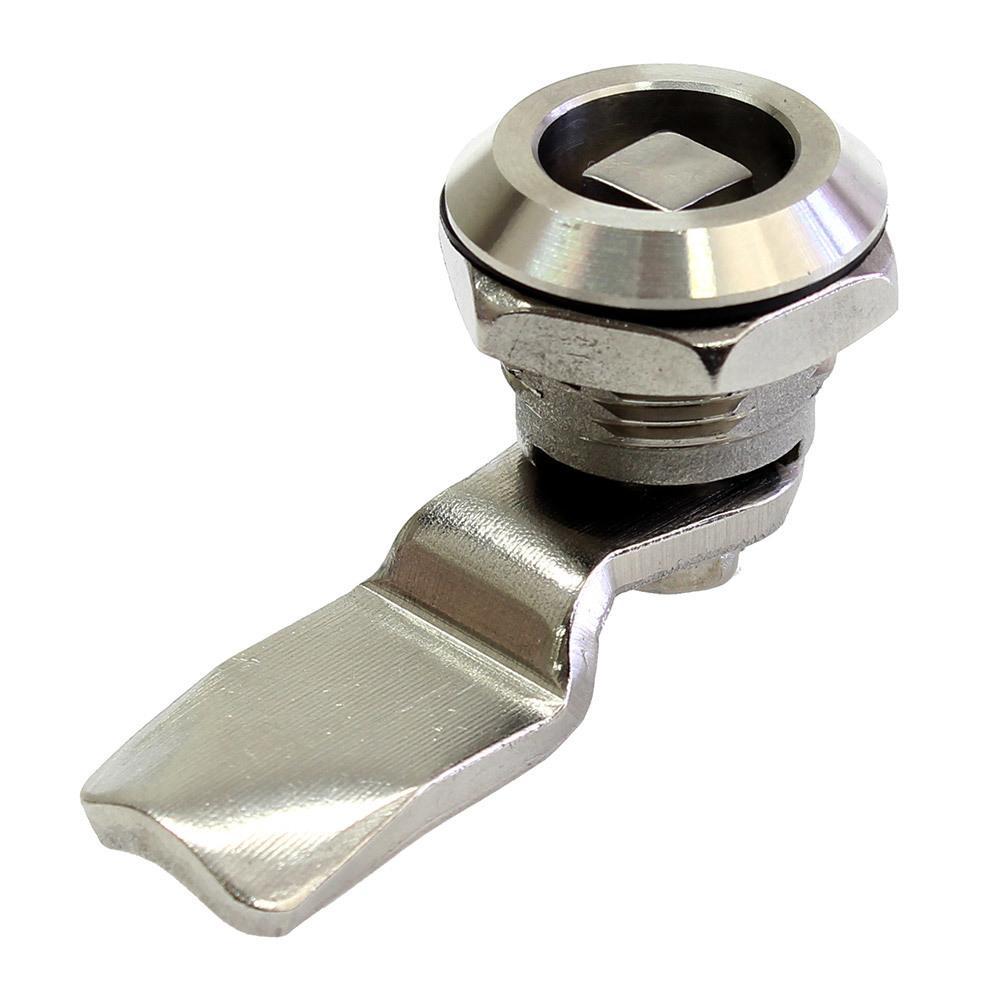

Chrome Quarter Turn 8mm Square Lock for Electrical Enclosures

SKU
In stock
Stock on hand
NSW WarehouseAuburn, NSW 2144
8 in stock
QLD WarehouseBells Creek, QLD 4551
160 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated 1 minute ago
Shipping & pickup →
$10 ex. GST $11 inc. GST
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Material Chrome
  • Colour / Finish Chrome
  • IP Rating IP65

Chrome Quarter Turn 8mm Square Lock for Electrical Enclosures

FEATURES

– Specially designed internal spring provides 1.5 mm of compression.
– Cam does not rotate beyond quarter turn due to stop lip.

MATERIAL

HOUSING: Zamak DIN-EN 1774-ZnAl4Cu1 (Optional Polyamide PA6 GFR 30)
DRIVER: Zamak DIN-EN
CAM: Steel
GASKET: Rubber
FINISH: Chrome (Optional Black)
IP RATING: IP65

DRIVERS

IP-L002: 8mm Square

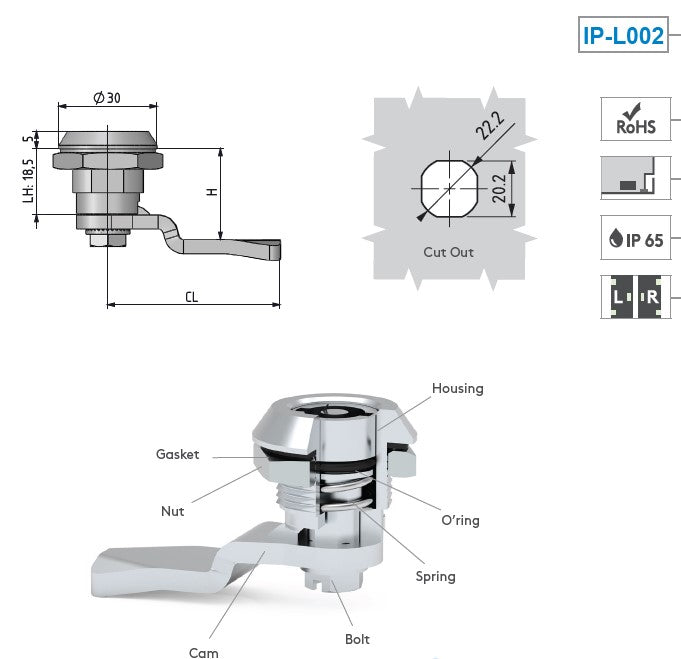

DIMENSIONS

H=25.5mm

CL=49mm
