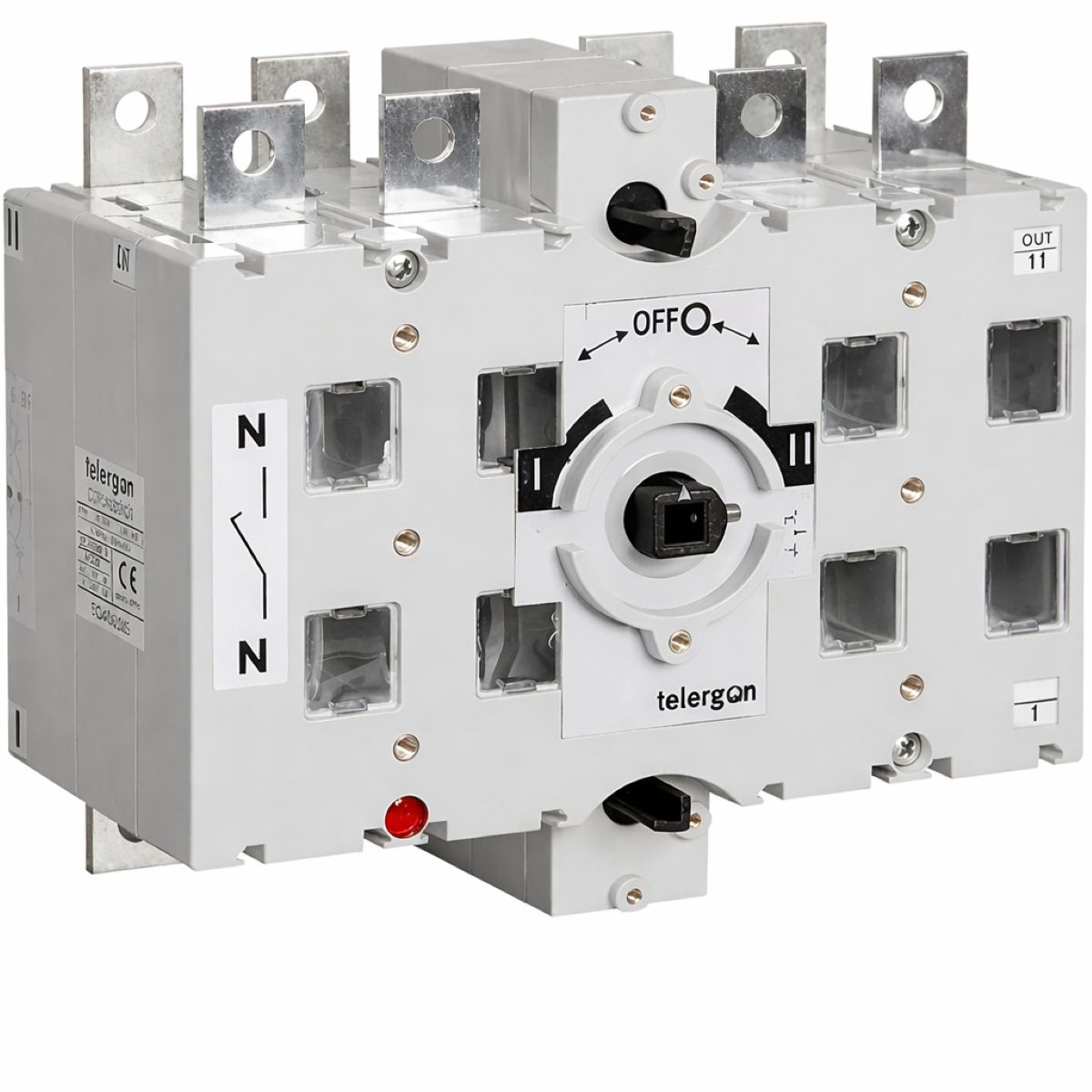

Changeover Switch CCF 1000A 3P+N (HANDLE ORDERED SEPARATELY) — Telergon
Changeover Switch CCF 1000A 3P+N (HANDLE ORDERED SEPARATELY) — Telergon

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Telergon

Changeover Switch CCF 1000A 3P+N (HANDLE ORDERED SEPARATELY)

SKU
$2,242.48 ex. GST $2,466.73 inc. GST
In stock
4 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Weight (kg) 25
  • Voltage 400V
  • Current 1000A
  • Poles 4 Pole

Standards & certifications

AUST Austrian Institute of Technology IEC/EN 609471 · 609473 Tested standards
Product Datasheet PDF
Engineered for heavy-duty industrial power transfer, these manual changeover switches provide a reliable '1-0-2' operation for switching between two independent power circuits. Built to withstand the rigours of the Australian climate, they are the standard for high-frequency switching under full load. Designed with high thermal and dynamic resistance to ensure contact integrity during short-circuit events. The 4-pole (3P+N) design ensures the neutral is switched, maintaining system safety in complex distribution networks. For detailed technical data, please view the datasheet.
