BZCT Series Current Transformer/Toroid 210mm — Broyce Control
BZCT Series Current Transformer/Toroid 210mm — Broyce Control

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Broyce Control

BZCT Series Current Transformer/Toroid 210mm

SKU
$343.67 ex. GST $378.04 inc. GST
In stock
30 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722

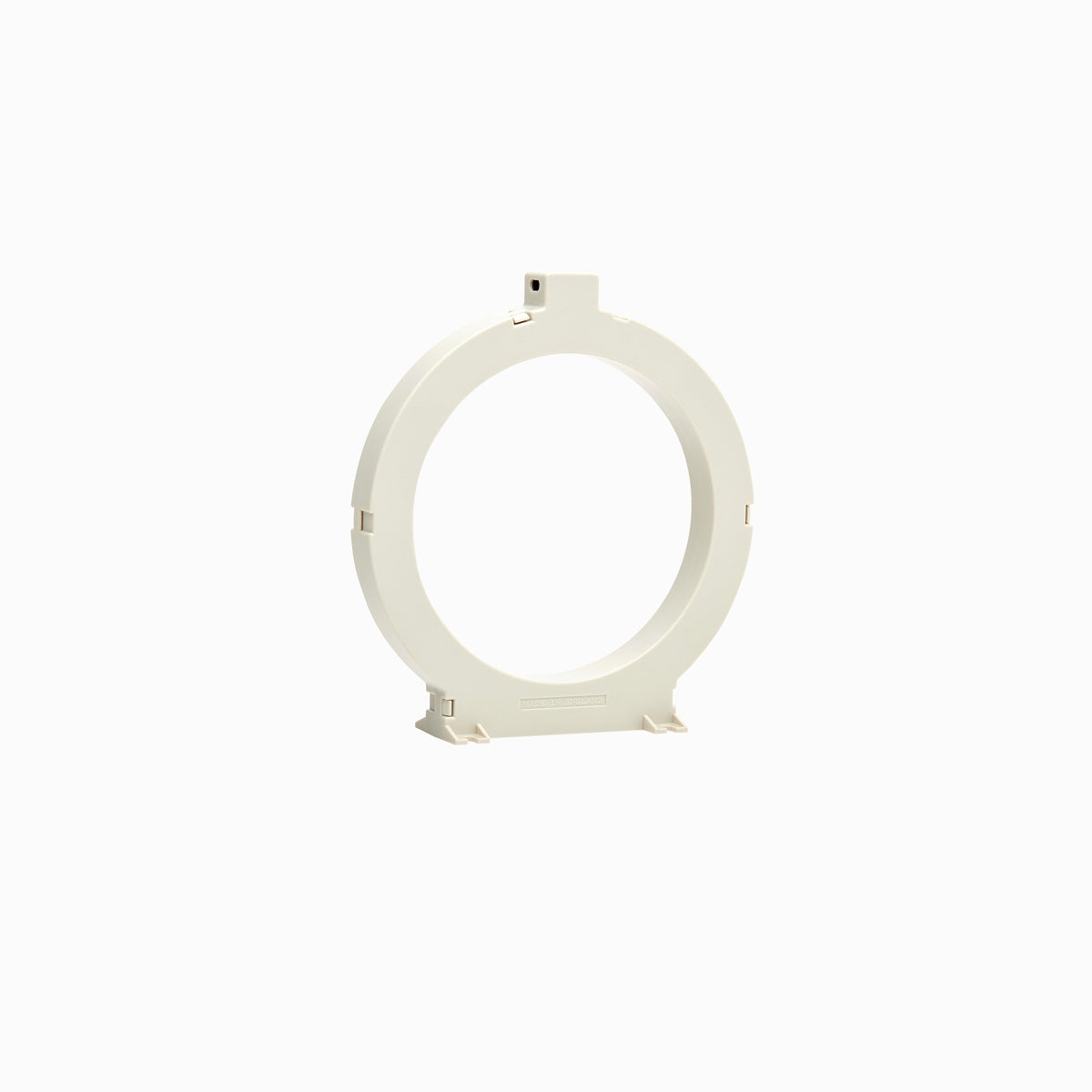

BZCT Series Current Transformer/Toroid 210mm

A Core Balance Current Transformer (CBCT)/Toroid designed for use in conjunction with all Broyce “Type A” Earth Leakage Relays that require an external sensing means.

  • Aperture diameter: 210mm
  • Rated system voltage: 720VAC
  • Min. ELR IΔn setting: 300mA
  • Dimensions (mm): W:149 x H:304 x D:60 (exc. feet)
  • Product standard(s): IEC 61869-1/-2

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
