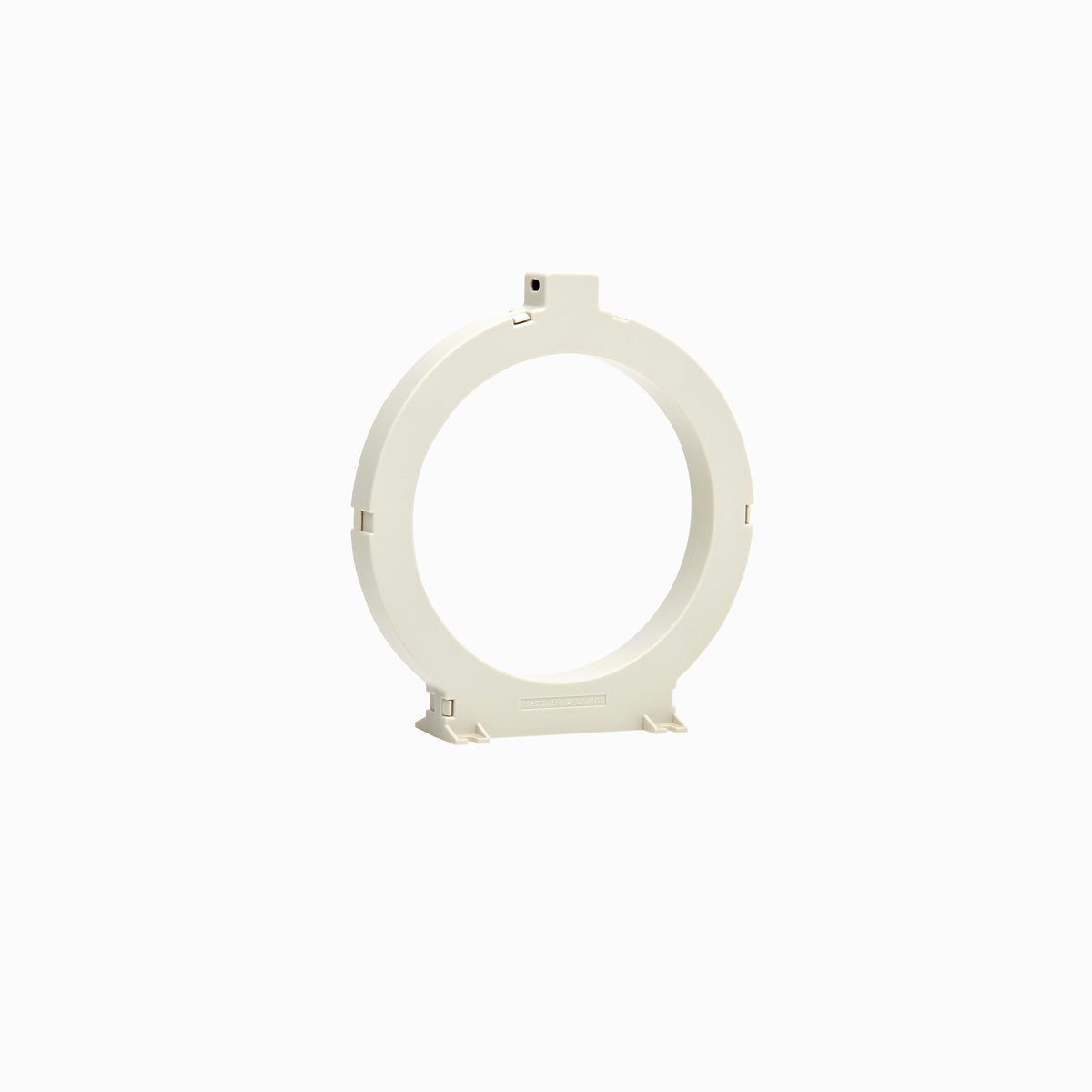

BZCT Series Current Transformer/Toroid 160mm

A Core Balance Current Transformer (CBCT)/Toroid designed for use in conjunction with all Broyce “Type A” Earth Leakage Relays that require an external sensing means.

  • Aperture diameter: 160mm
  • Rated system voltage: 720VAC
  • Min. ELR IΔn setting: 300mA
  • Dimensions(mm): W:150 x H:253 x D:60 (exc. feet)
  • Product standard(s): IEC 61869-1/-2
