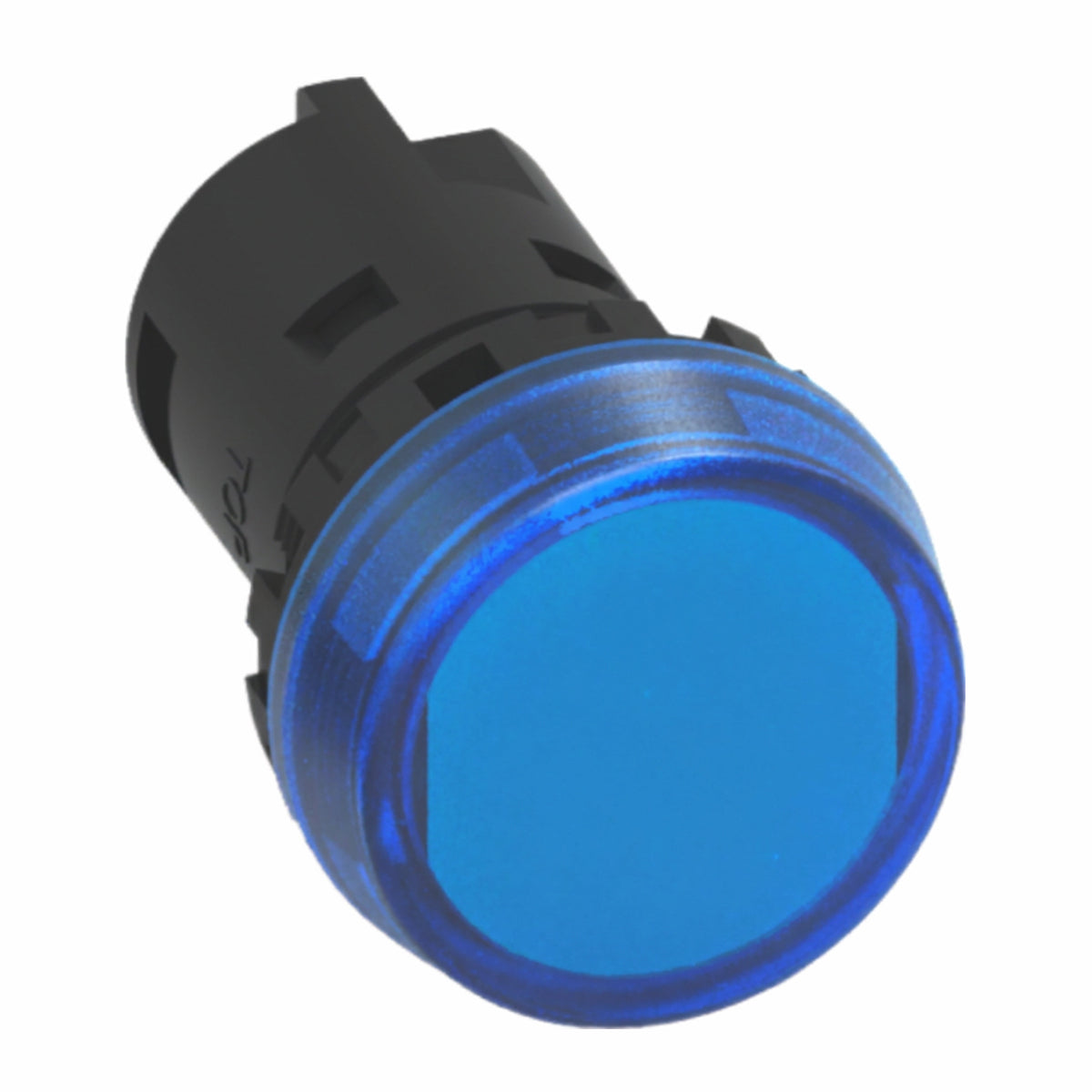

Blue LED Pilot Light 22mm 24V AC/DC IP65

SKU
$4.23 ex. GST $4.65 inc. GST
In stock
66 in stock across 2 warehouses
  • Type LED Pilot Light
  • Series LA1
  • Panel Cut-Out Ø22.3mm ±0.2 (M22×1)
  • Mounting Panel Mount
  • Material PC lens, PA66 housing
  • Colour Blue
  • IP Rating IP65
  • Operating Temp -20°C to +60°C
  • Standards
    • IEC 60947-1
    • IEC 60947-5-1
  • Certifications
    • CE
    • RoHS
    • IP65
  • Voltage 24V AC/DC

Standards & certifications

IP65Dust-tight · water jets CEEU conformity RoHSHazard-free IEC/EN 60947-1 · 60947-5-1 Tested standards
Product Datasheet PDF Product Brochure PDF Declaration of Conformity PDF

Blue LED Pilot Light 24V AC/DC, 22mm Flat

The LA1AI00B024 is a flat-lens blue LED pilot light operating at 24V AC/DC, mounting into a standard 22mm panel cut-out. Solid-state LED illumination draws minimal current and removes the lamp-replacement maintenance that filament indicators carry.

Features and Specifications

Protection: IP65. Operating range -20°C to +55°C.

Standards (& Conformities): IEC 60947-1, IEC 60947-5-1, CE, RoHS.

Mounting:

Panel cut-out: Ø22.3mm ±0.2 (M22×1)
Panel thickness: 0.8–6 mm

Materials:

PC lens, PA66 housing

Manufacturer: Telergón, S.A.U. — European-engineered, CE marked to the Low Voltage (2014/35/EU) and RoHS (2011/65/EU) Directives.
