Blue Cat.6A Patch Cable 5.0M — Weidmuller
1165900050_2
1165900050_3
Blue Cat.6A Patch Cable 5.0M — Weidmuller
1165900050_2
1165900050_3

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Weidmuller

Blue Cat.6A Patch Cable 5.0M

SKU
$22.37 ex. GST $24.61 inc. GST
In stock
10 in stock across 2 warehouses
  • Type Straight
  • Colour Blue
  • IP Rating IP20
  • Size 5.0M

Standards & certifications

IP20Ingress protection

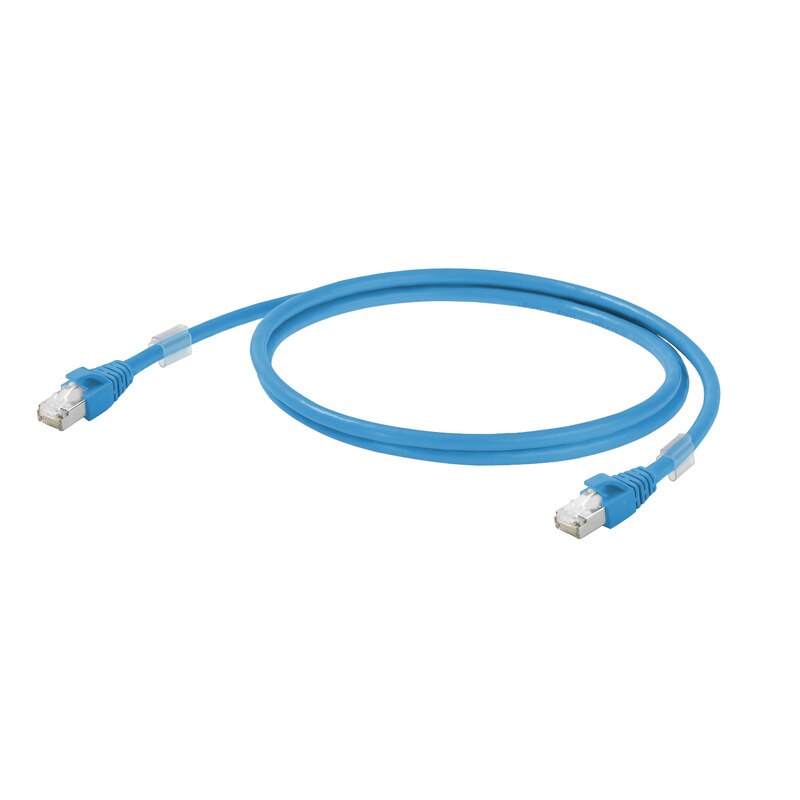

The Weidmüller IE-C6FP8LB0050M40M40-B is a 5 m Cat.6A shielded patch lead with a moulded RJ45 plug at each end, for Ethernet runs between adjacent cabinets or out to machine-mounted equipment. Length is the only difference from the shorter blue IE-C6FP8LB cuts, so specify 5 m where the link leaves the enclosure it starts in.

  • Length: 5 m
  • Category: Cat.6A / Class EA (ISO/IEC 11801:2010)
  • Construction: S/FTP, 4 x 2 x AWG 27/7 stranded copper
  • Sheath: LSZH, blue
  • Connectors: RJ45 shielded straight plug both ends, IP20
