Blue Cat.6A Patch Cable 3.0M

Specifications

• Colour Blue
• IP Rating IP20
• Size 3.0M

Standards & Conformities

Standards & certifications

IP20Ingress protection

Documents

Full Description

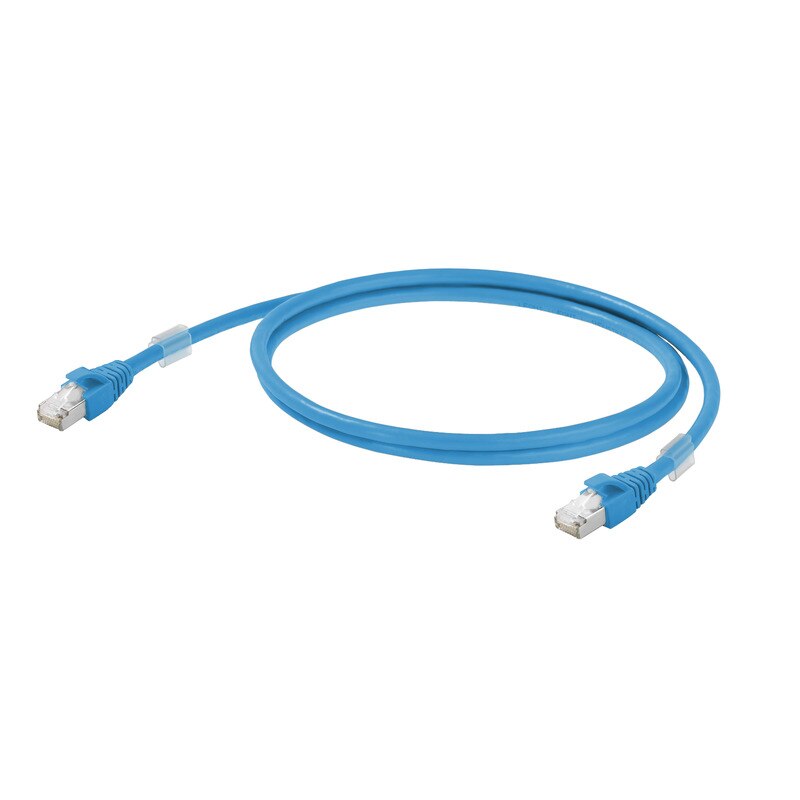

The Weidmüller IE-C6FP8LB0030M40M40-B is a 3 m Cat.6A shielded patch lead with a moulded RJ45 plug at each end, for Ethernet links between control cabinets or from a cabinet to nearby panel-mounted equipment. It is the same lead as the shorter blue IE-C6FP8LB cuts with more reach, and it is rated for PoE and PoE+ so it can feed a powered device as well as carry data.

• Length: 3 m
• Category: Cat.6A / Class EA (ISO/IEC 11801:2010)
• Construction: S/FTP, 4 x 2 x AWG 27/7 stranded copper
• Sheath: LSZH, blue

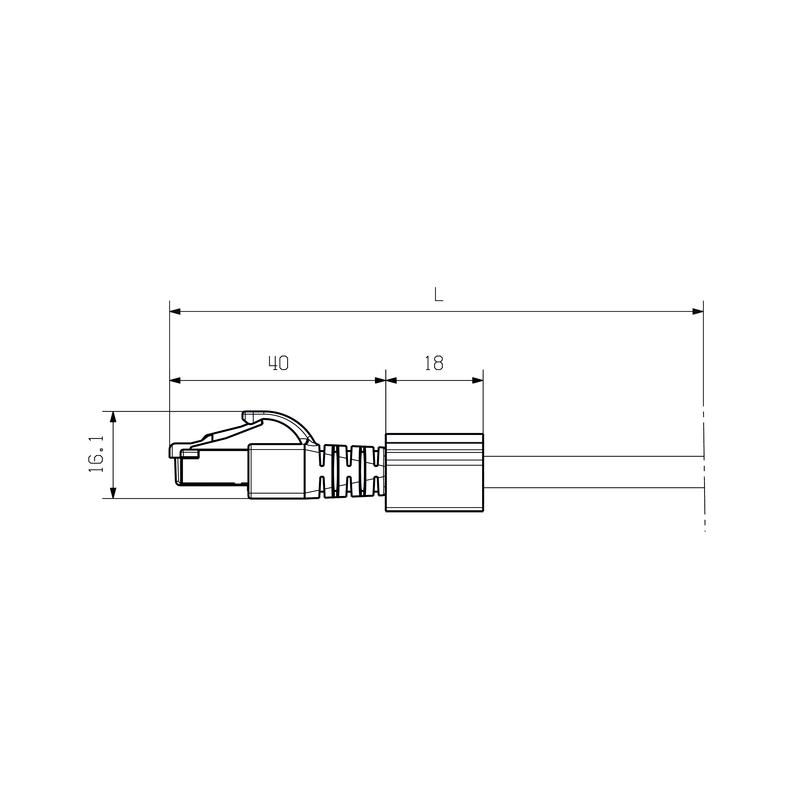

• Connectors: RJ45 shielded straight plug both ends, IP20
