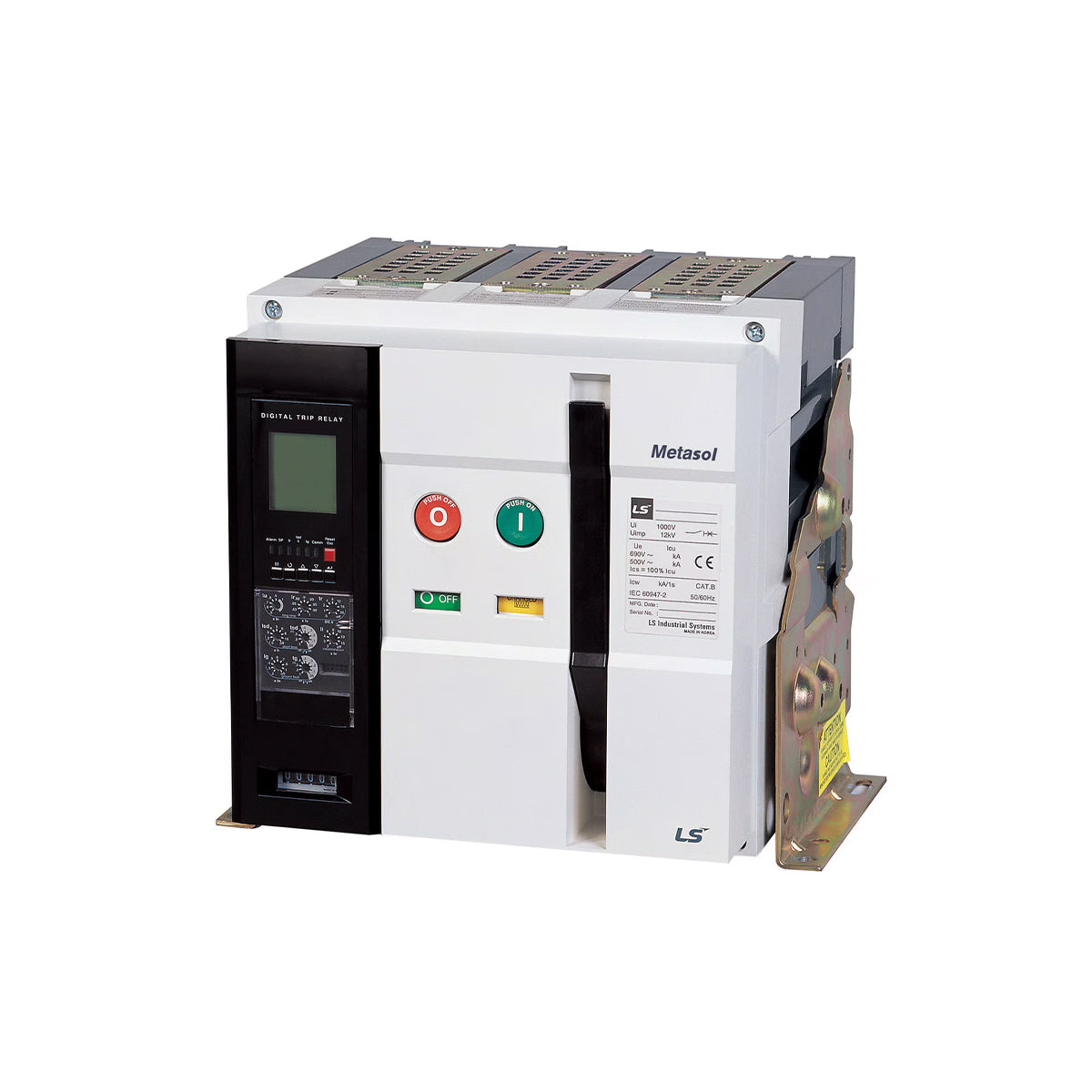

AS-20D4-20V 2000A 4P | LS Metasol 70kA Air Circuit Breaker Fixed, Vertical Terminals

SKU
$1,295 ex. GST $1,424.50 inc. GST
-72% Clearance $4,675.12 AUD
$1,295 ex. GST $1,424.50 inc. GST

Online Clearance Pricing only. Non-cancellable and non-returnable.

In stock
7 in stock across 2 warehouses
  • Type Electronic Trip
  • Series Metasol
  • Mounting Fixed
  • Weight (kg) 45
  • Operating Temp −20°C to +60°C
  • Country of Origin KR
  • Standards
    • IEC 60947-1
    • IEC 60947-2
  • Certifications
    • CE
  • Voltage 690VAC
  • Current 2000A
  • Poles 4 Pole
  • Contacts 3NO+3NC
  • Size D Frame

Standards & certifications

CEEU conformity IEC/EN 60947-1 · 60947-2 Tested standards
Product Brochure PDF

AS-20D4-20V 2000A 4P | LS Metasol 70kA Air Circuit Breaker Fixed, Vertical Terminals

LS Electric AS-20D4-20V: A 4-pole 2000A D-frame fixed ACB for switched-neutral incomers and changeover schemes, with vertical-only terminals and a 100% rated neutral. End of life: remaining stock only.

Features and Specifications

  • Rated current (In): 2000A, 4 pole (100% rated neutral)
  • Rated operational voltage (Ue): 690VAC, 50/60Hz. Rated insulation voltage (Ui): 1000V. Rated impulse withstand (Uimp): 12kV
  • Rated ultimate breaking capacity (Icu): 70kA at 220–415V, 65kA at 550–690V. Service breaking capacity Ics = 100% Icu
  • Rated making capacity (Icm): 154kA peak at 415V
  • Rated short-time withstand (Icw): 65kA 1s / 50kA 2s / 42kA 3s
  • Frame: D-frame. Mechanical life 20,000 operations, electrical life 5,000 operations
  • Dimensions (fixed, H x W x D): 300 x 385 x 295 mm
  • Mounting: Fixed, vertical terminals
  • Trip relay: A-type (ammeter) electronic trip relay with L, S, I and G protection (vector-sum ground fault), 50Hz self-powered, no communication (AG5, superseded by the AH5 trip relay)
  • Trip relay settings: long-time delay (Ir = 0.8–1.0 x Iu, Iu = 0.5–1.0 x In), short-time Isd 1.5–10 x Ir (I²t on/off), instantaneous Ii 2–15 x In, ground fault Ig 0.2–1.0 x In
  • Trip relay features: LCD current display (±1.0%), trip-cause and overload alarm LEDs, 10 fault records (ZSI, digital outputs and communication need an external control supply, not available on self-powered AG5)
  • Options fitted: Manual spring charging (no motor), no closing coil, no shunt trip, 3a3b auxiliary contacts (OFF-charge), no UVT, On/Off button lock
  • Operating temperature: −20°C to +60°C (derating above 45°C)

Standards (& Conformities): IEC 60947-1, IEC 60947-2, CE. Approvals: KEMA, KERI, KS, GOST.

Ordering Code:

AS-20D4-20V MAD0D0AX AG5U0B

What's Included: AS-20D4-20V air circuit breaker.

Full ratings, trip curves and accessories: LS Susol & Metasol ACB catalogue.
