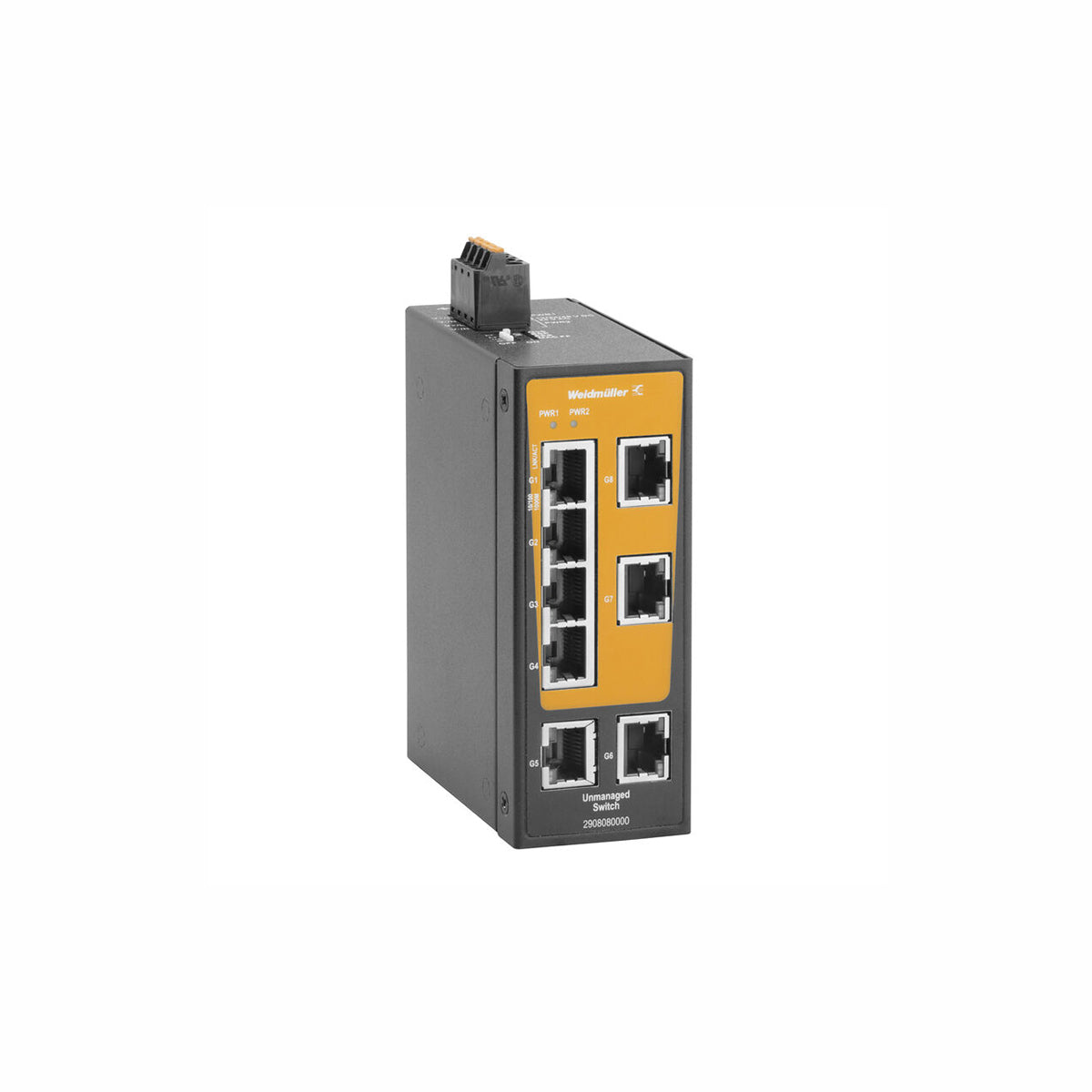

8 x RJ45 Port Unmanaged Network Switch, Gigabit Ethernet (1000Mbs) - IE-SW-BLB-08-8GT
Ask an expert!
The Weidmüller IE-SW-BLB-08-8GT is an 8-port Gigabit Ethernet unmanaged DIN rail switch from the BLB series, replacing the ValueLine VL08-8GT and VL08T-8GT. Offering full 1000BASE-T Gigabit connectivity across all 8 RJ45 ports, it is the right choice where bandwidth-intensive devices such as cameras, HMIs, or PLCs require high-throughput switching without the overhead of managed functionality. With maritime and hazardous area certifications and a -40°C to +75°C temperature rating, it is well suited to oil and gas, renewable energy, transportation, and industrial automation applications.
| Part Number | 2908080000 |
|---|---|
| Model | IE-SW-BLB-08-8GT |
| Ports | 8 x RJ45 (10/100/1000BASE-T) |
| Ethernet Standard | Gigabit Ethernet (1000Mbs) |
| Switching | Unmanaged |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to +75°C |
| Mounting | DIN rail (optimised clip) |
| Power Connection | PUSH-IN terminal blocks |
| Certifications | CE, UL, DNV, LR, ABS, RINA, BV, IECEx, ATEX, CCCEx |
| PROFINET | Conformance Class A (QoS + LLDP frame blocking) |
| Supersedes | IE-SW-VL08-8GT (1241270000), IE-SW-VL08T-8GT (1286860000) |
| Brand | Weidmüller |
- Full Gigabit (1000Mbs) on all 8 ports — ideal for high-bandwidth device connections
- Single SKU replaces both standard and high-temp VL08 variants
- PROFINET Conformance Class A capable for real-time industrial networking
- Maritime and hazardous area certifications as standard for multi-market deployment
- PUSH-IN terminal blocks and optimised DIN-rail clip for faster panel commissioning
Available from TROPAC Australia — contact our team for pricing and availability.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
