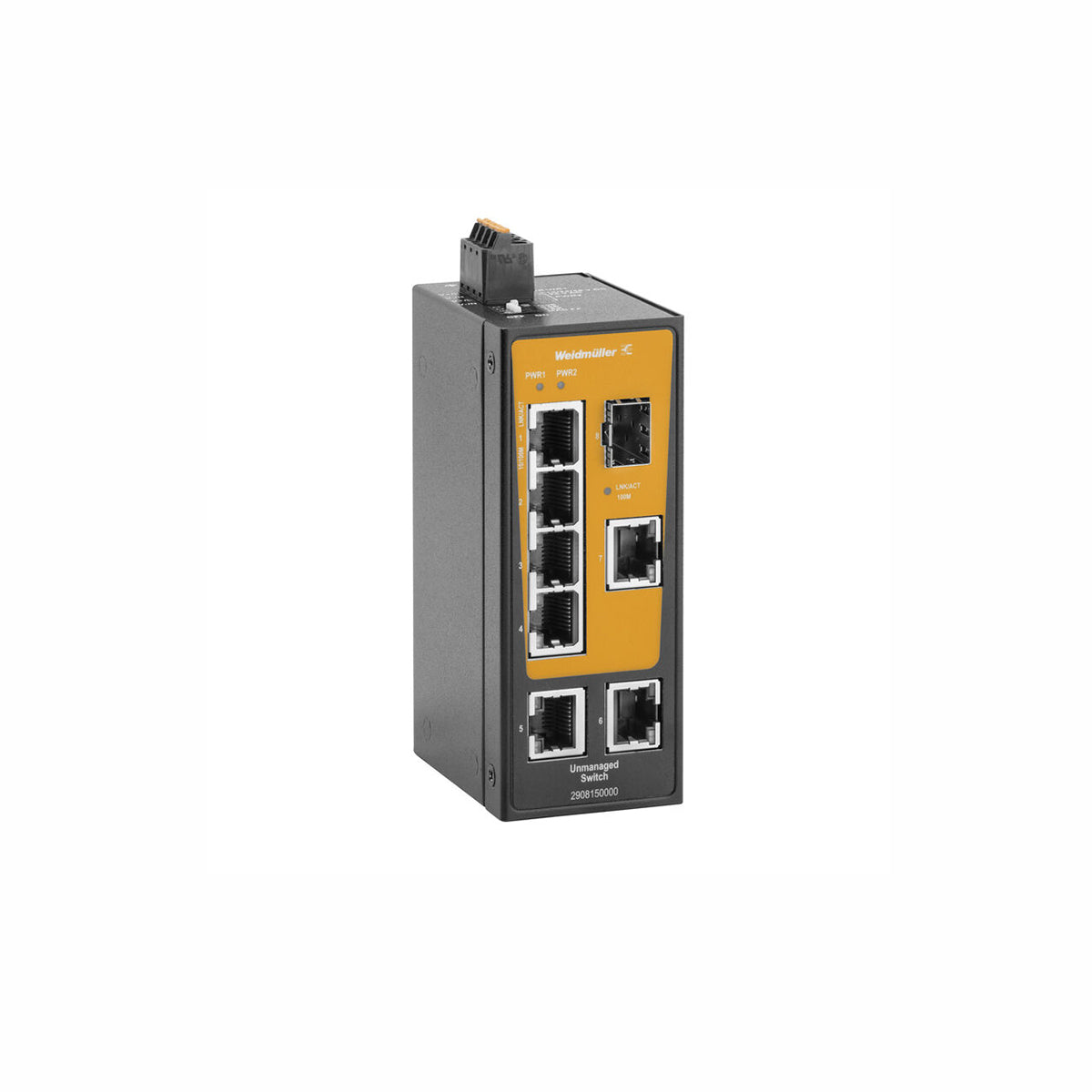

The Weidmüller IE-SW-BLB-08-7TX-1FESFP is an 8-port Fast Ethernet unmanaged DIN rail switch with 7 RJ45 copper ports and 1 SFP slot for fibre uplink. It replaces the legacy BL08-7TX-1SC and BL08T-7TX-1SC, transitioning from a fixed SC multimode connector to a flexible SFP slot with LC-Duplex interface. The SFP port accepts any standard 100BaseSFP module, enabling the installer to select the appropriate fibre type and reach for the application.

Part Number 2908150000
Model IE-SW-BLB-08-7TX-1FESFP
RJ45 Ports 7 x RJ45 (10/100BASE-TX)
Fibre Port 1 x SFP slot (100BaseSFP, LC-Duplex connector)
SFP Module Not included — sold separately
Ethernet Standard Fast Ethernet
Switching Unmanaged
Protection Rating IP30
Operating Temperature -40°C to +75°C
Mounting DIN rail (optimised clip)
Power Connection PUSH-IN terminal blocks
Certifications CE, UL, DNV, LR, ABS, RINA, BV, IECEx, ATEX, CCCEx
PROFINET Conformance Class A (QoS + LLDP frame blocking)
Supersedes IE-SW-BL08-7TX-1SC (1412070000), IE-SW-BL08T-7TX-1SC (1412080000)
Brand Weidmüller
  • SFP slot replaces fixed SC multimode connector — fibre type and reach determined by SFP module selected
  • Replaces both standard and high-temp BL08-7TX-1SC variants in a single SKU
  • Compatible with Weidmüller IE-SFP-1FE-MM-2 (multimode 2km) and IE-SFP-1FE-SM-30/60 (singlemode) modules
  • PROFINET Conformance Class A capable for real-time industrial networking
  • Extended certifications and -40°C to +75°C temperature rating for demanding environments

Available from TROPAC Australia — contact our team for SFP module selection, pricing, and availability.
