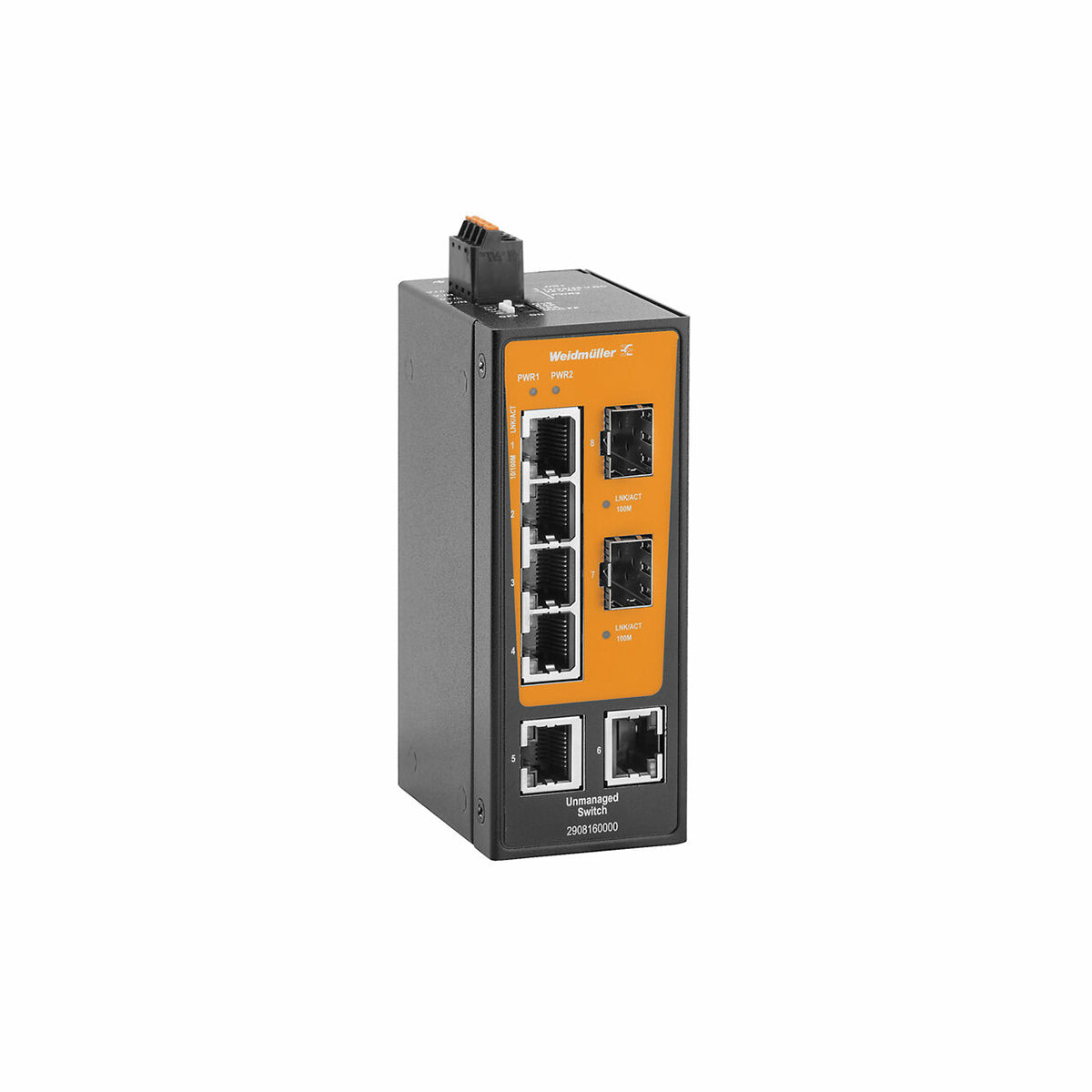

8 Port (6 x RJ45, 2 x SFP Slot) Unmanaged Network Switch, Fast Ethernet - IE-SW-BLB-08-6TX-2FESFP
Ask an expert!
The Weidmüller IE-SW-BLB-08-6TX-2FESFP is an 8-port Fast Ethernet unmanaged DIN rail switch with 6 RJ45 copper ports and 2 SFP slots for dual fibre uplinks or fibre ring configurations. It replaces six legacy BL08 variants with fixed SC and ST dual-fibre connectors (2SC, 2ST, 2SCS in standard and high-temp), consolidating them into a single flexible product. Both SFP slots accept standard 100BaseSFP modules with LC-Duplex connectors, independently configurable for different fibre types or distances. The dual fibre capability makes this model particularly suitable for ring topologies and extended-reach network segments in industrial environments.
| Part Number | 2908160000 |
|---|---|
| Model | IE-SW-BLB-08-6TX-2FESFP |
| RJ45 Ports | 6 x RJ45 (10/100BASE-TX) |
| Fibre Ports | 2 x SFP slots (100BaseSFP, LC-Duplex connectors) |
| SFP Modules | Not included — sold separately (2 required) |
| Ethernet Standard | Fast Ethernet |
| Switching | Unmanaged |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to +75°C |
| Mounting | DIN rail (optimised clip) |
| Power Connection | PUSH-IN terminal blocks |
| Certifications | CE, UL, DNV, LR, ABS, RINA, BV, IECEx, ATEX, CCCEx |
| PROFINET | Conformance Class A (QoS + LLDP frame blocking) |
| Supersedes | IE-SW-BL08-6TX-2SC/ST/SCS and T variants (1240910000, 1240920000, 1240930000, 1286570000, 1412110000, 1412120000) |
| Brand | Weidmüller |
- Dual SFP slots replace fixed dual SC/ST connectors — 2 SFP modules required, sold separately
- One SKU replaces six legacy BL08 dual-fibre variants (2SC, 2ST, 2SCS in standard and high-temp)
- Dual fibre ports suitable for ring topologies and extended-reach network segments
- Compatible with Weidmüller IE-SFP-1FE-MM-2 (multimode) and IE-SFP-1FE-SM-30/60 (singlemode) modules
- PROFINET Conformance Class A, extended certifications, and -40°C to +75°C as standard
Available from TROPAC Australia — contact our team for SFP module selection, pricing, and availability.
