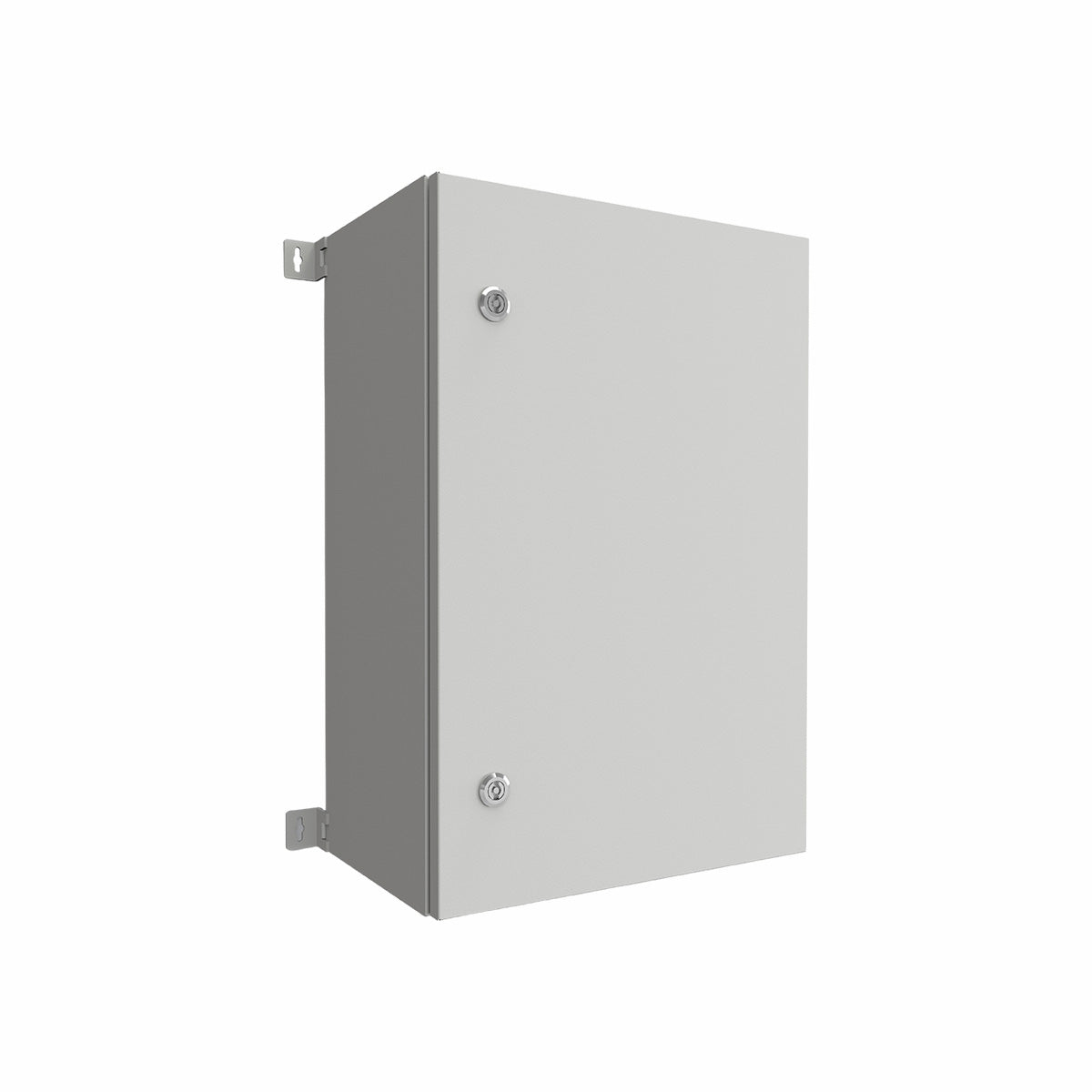

600H x 400W x 250D IP66 Electrical Enclosure RAL7035

600H x 400W x 250D IP66 Electrical Enclosure RAL7035

Versch Steel Wall-Mounted Electrical Enclosures (RAL 7035 GREY) deliver dependable protection for electrical and control applications. Powder-coated steel with continuous PU gasket and secure locking, rated IP66, suitable for general industrial control, HVAC, pumps, lighting, and small PLC/IO applications.

Key Benefits

• IP66 protection for dust-tight and powerful water-jet environments
• Value-engineered construction
• Powder-coated RAL7035 Grey finish
• Continuous PU gasket for reliable sealing
• Universal wall mounting brackets and gland plates

Typical Applications

• Switching and protection
• Small PLC/IO
• Power supplies
• Drives
• HVAC interfaces
• Pump and irrigation controls
• Lighting and signage
• General industrial control

Construction & Materials

• Body & door: Folded zinc-coated steel, fully welded body, removable door
• Finish: Powder coat, textured, RAL7035 grey
• Gasket: Polyurethane (continuous)
• Locks & hardware: Quarter-turn latches (key insert), concealed hinges, earth studs
• Mounting plate: Galvanised steel device plate
• Gland plate: Removable gland plate
• Fixing: External wall-mount brackets

Ratings & Compliance

• Ingress protection: IP66 to IEC/EN 60529
• Impact resistance: IK10 suitable for general industrial use
• Empty enclosure standard: IEC/EN 62208

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
