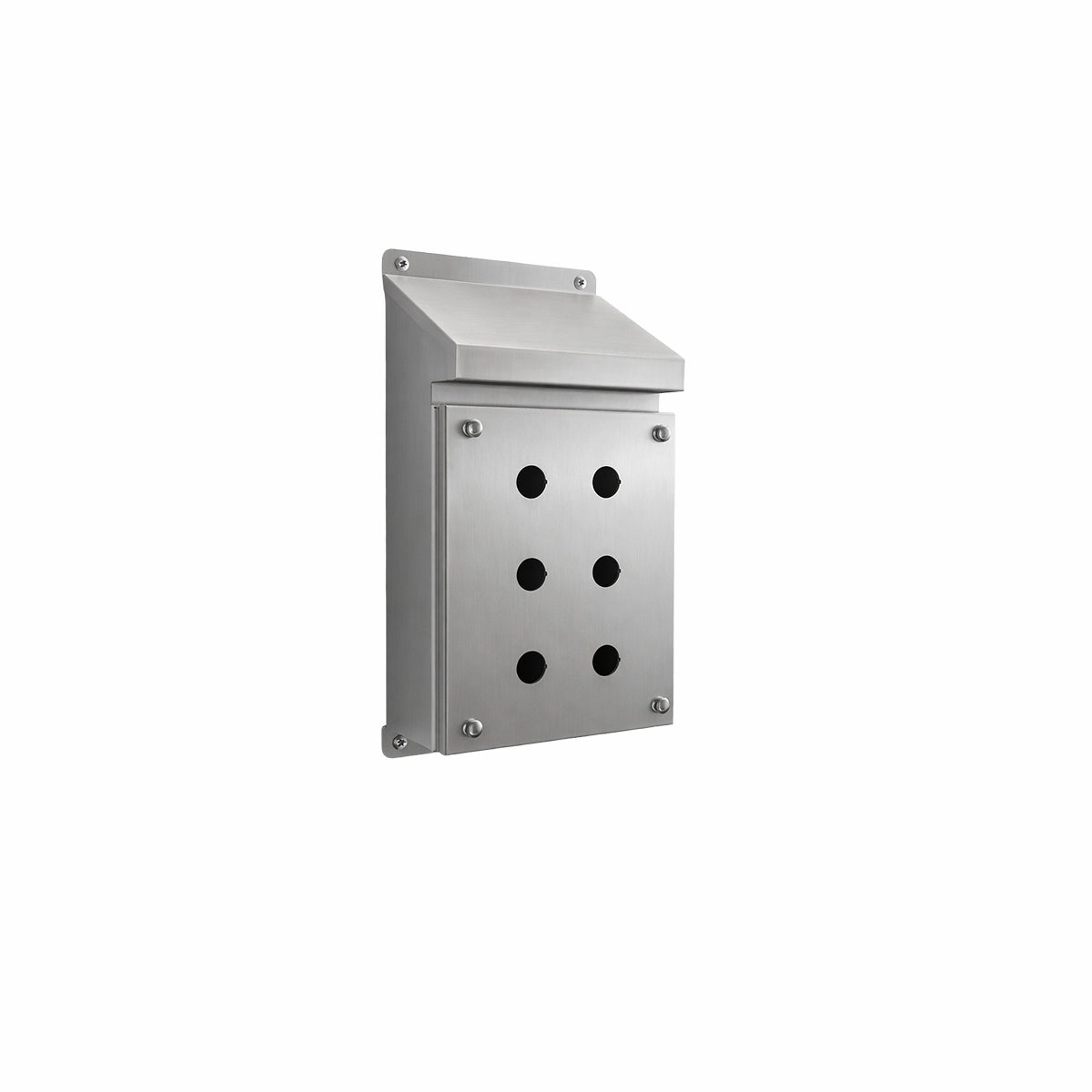

IP Enclosures SSP Sloped Roof Stainless Steel Pushbutton Enclosure – 6 x Ø22.5mm

The SSP Sloped Roof Stainless Steel Pushbutton Enclosure is engineered for harsh industrial environments. The sloped roof design directs water away from pushbuttons and reduces dirt buildup. It is ideal for mining, marine, food processing, and heavy industrial applications.

This model features 6 x Ø22.5mm pre drilled holes. The SSP range is also available with Ø30.5mm holes and in 1 hole, 2 hole, 3 hole, 4 hole, and 6 hole configurations to match your control requirements.

Key Features

• Sloped roof design for improved water and debris runoff
• External mounting flanges for secure installation
• High resistance to corrosion and harsh chemicals
• Silicone seal resistant to aggressive environments
• Manufactured in Italy
• 5 year warranty

Protection Ratings

• IP66
• IP67
• IP69K
• NEMA 4X

Standards and Compliance

• IEC / EN / AS 60529
• UL 508A
• RoHS Compliant

Materials

• Body: 1.0mm Grade 316 Stainless Steel
• Lid / Door: 1.0mm Grade 316 Stainless Steel
• Seal: Silicone
• Washers: NBR 70 (Nitrile Butadiene Rubber)

Construction

Body: Monoblock construction fabricated from 1.0mm Grade 316 stainless steel. The sloped roof extends beyond the pushbuttons for added protection. Top and bottom external mounting flanges are designed for demanding mining and industrial installations.

Lid / Door: Pre drilled and secured with screws fitted with NBR 70 washers. Suitable for environments where hydrocarbons and harsh chemicals are present.

Seal: High quality silicone seal provides reliable long term protection against moisture and contaminants.

Technical Specifications

• Surface Finish: 0.4 micron Ra brushed finish
• Hole Configuration: 6 x Ø22.5mm
• Mass: 1.77 kg

Manufactured to strict quality, safety, and environmental standards.

Warranty: 5 Years

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
