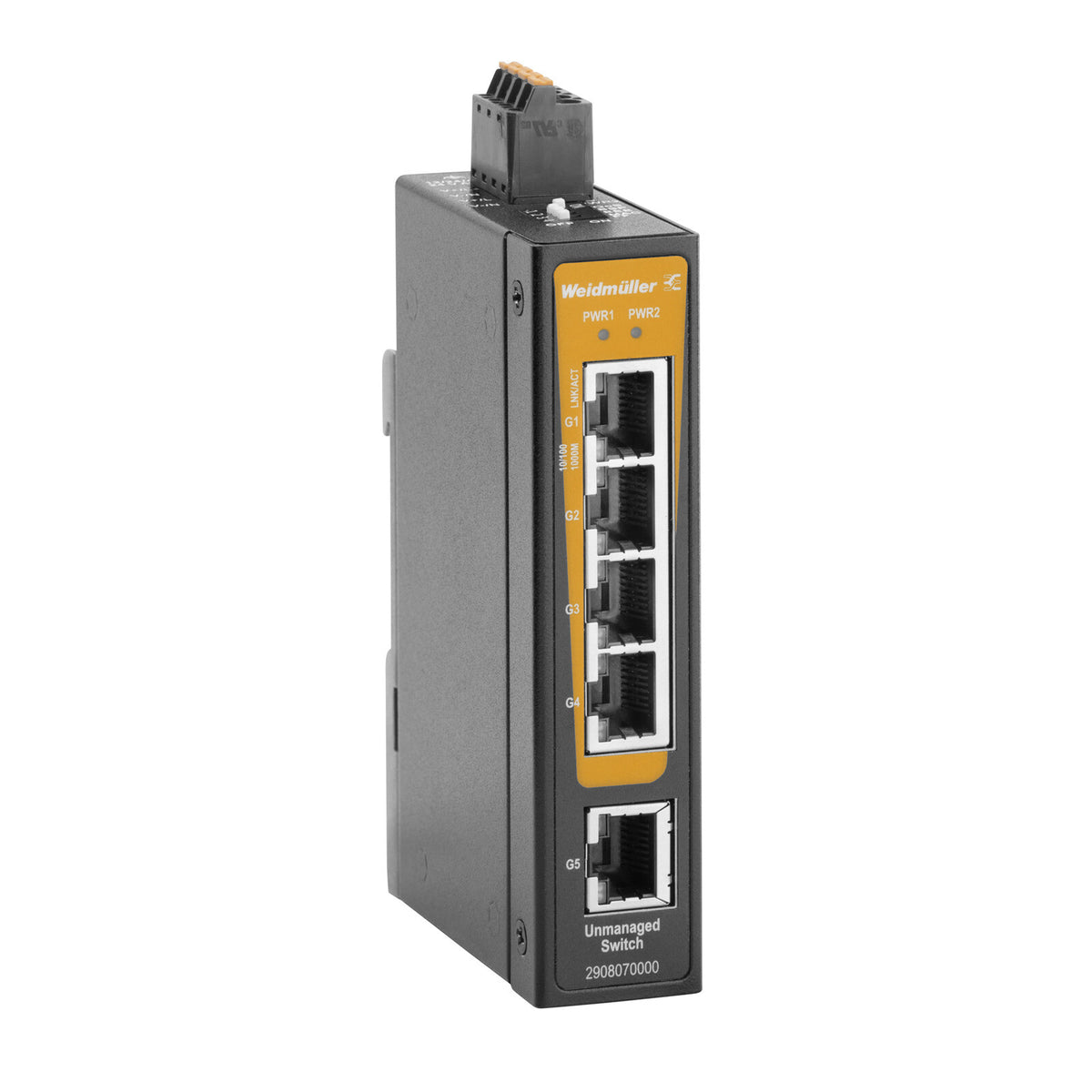

5 X RJ45 PORT UNMANAGED NETWORK SWITCH, GIGABIT ETHERNET - IE-SW-BLB-05-5GT

The Weidmüller IE-SW-BLB-05-5GT is a five-port unmanaged switch with every port running 10/100/1000BaseT(X), so the whole edge segment stays on gigabit without any configuration. It draws only 0.1 A at 24 V DC, accepts 9 to 60 V DC across two redundant supply inputs, and occupies just 26 mm of DIN rail.

• Ports: 5 x RJ45, 10/100/1000BaseT(X), auto-negotiation and auto MDI/MDI-X
• Transmission speed: Gigabit Ethernet, 10 Gbit/s backplane bandwidth
• SFP slots: None
• Supply voltage: 12/24/48 V DC (9 to 60 V DC) or 24 V AC (18 to 30 V AC)
• Supply inputs: 2 redundant inputs, reverse polarity and overload protection
• Current consumption: 0.1 A at 24 V DC
• Alarm contact: Not fitted
• MAC address table: 4 K entries, 1 Mbit packet buffer
• MTBF: 1,404,396 h (Telcordia SR-332)
• Operating temperature: −40 °C to +75 °C
• Dimensions (W x H x D): 26 x 114 x 70 mm
• Mounting: DIN rail
• Housing: Metal, 272 g
• Protection degree: IP30
• Approvals: cULus (E141197), ATEX Zone 2 Ex ec IIC T4 Gc, RoHS
