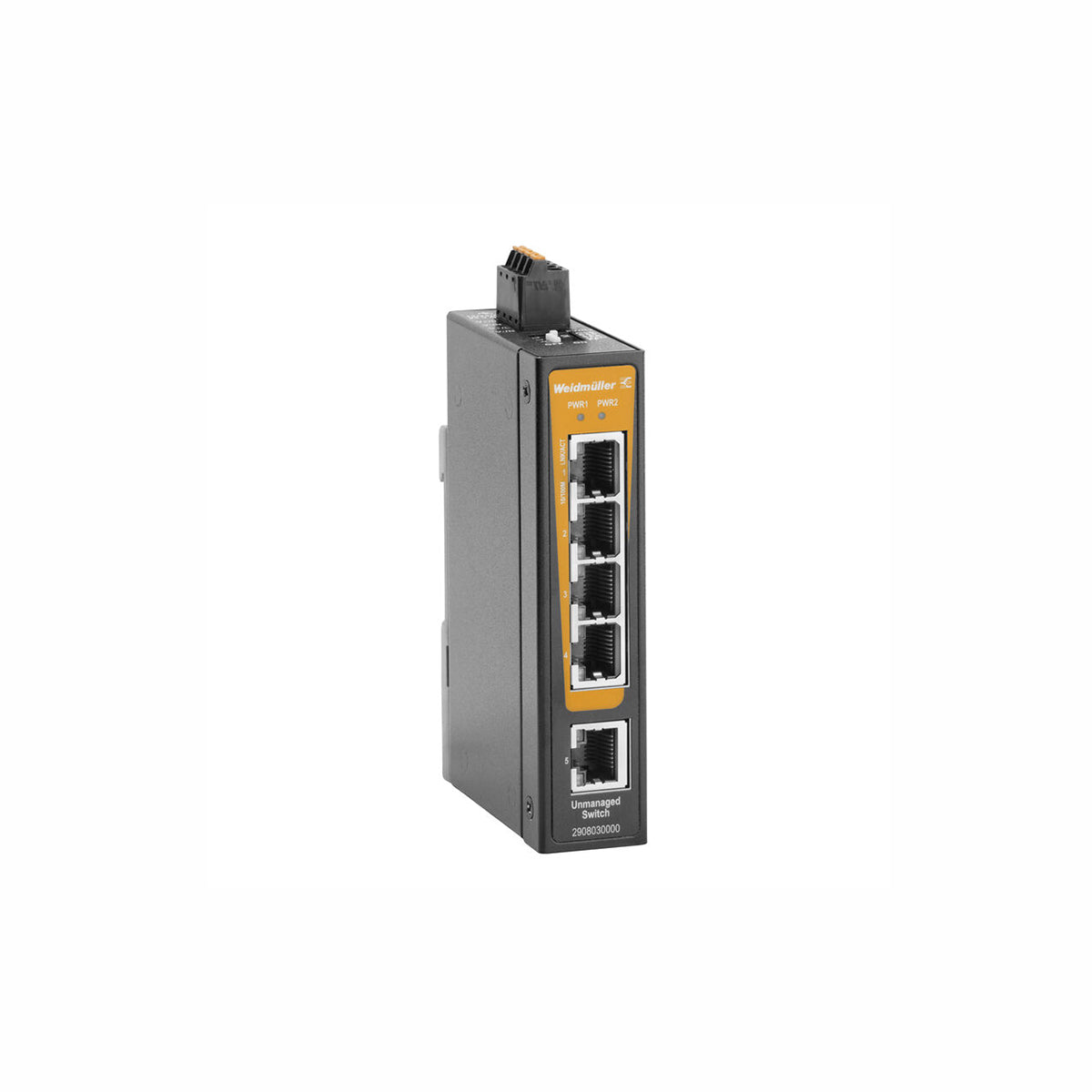

5 x RJ45 Port Unmanaged Network Switch, Fast Ethernet - IE-SW-BLB-05-5TX
Regular price
$180.43
ex. GST
$198.47
inc. GST
Restocking
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated
3 minutes ago
Shipping & pickup →
Free Shipping
Ask an expert!
- IP Rating
- Size
Standards & certifications
IP20Ingress protection
The Weidmüller IE-SW-BLB-05-5TX is a 5-port Fast Ethernet unmanaged DIN rail switch from the BLB (BasicLine B) series. Designed as a direct replacement for the legacy BL05-5TX and BL05T-5TX, it brings improved certifications, PUSH-IN terminal blocks for faster commissioning, and an extended operating temperature range in a single SKU. Suitable for factory automation, building management, water treatment, and transportation infrastructure.
| Part Number | 2908030000 |
|---|---|
| Model | IE-SW-BLB-05-5TX |
| Ports | 5 x RJ45 (10/100BASE-TX) |
| Ethernet Standard | Fast Ethernet |
| Switching | Unmanaged |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to +75°C |
| Mounting | DIN rail (optimised clip) |
| Power Connection | PUSH-IN terminal blocks |
| Certifications | CE, UL, DNV, LR, ABS, RINA, BV, IECEx, ATEX, CCCEx |
| PROFINET | Conformance Class A (QoS + LLDP frame blocking) |
| Supersedes | IE-SW-BL05-5TX (1240840000), IE-SW-BL05T-5TX (1240850000) |
| Brand | Weidmüller |
- Single SKU replaces both standard and high-temp BL05 variants — no separate T model required
- PUSH-IN terminal blocks replace screw terminals for faster, more reliable power wiring
- PROFINET Conformance Class A capable — suitable for real-time industrial networks
- Extended certifications including DNV, IECEx, and ATEX — one product approved across all markets
- Optimised DIN-rail clip for quicker, more secure panel mounting
Available from TROPAC Australia — contact our team for pricing and availability.
