5 Port (4 x RJ45, 1 x SFP Slot) Unmanaged Network Switch, Gigabit Ethernet (1000Mbs) - IE-SW-BLB-05-4GT-1GESFP
Ask an expert!
- IP Rating
- Size
Standards & certifications
IP20Ingress protection

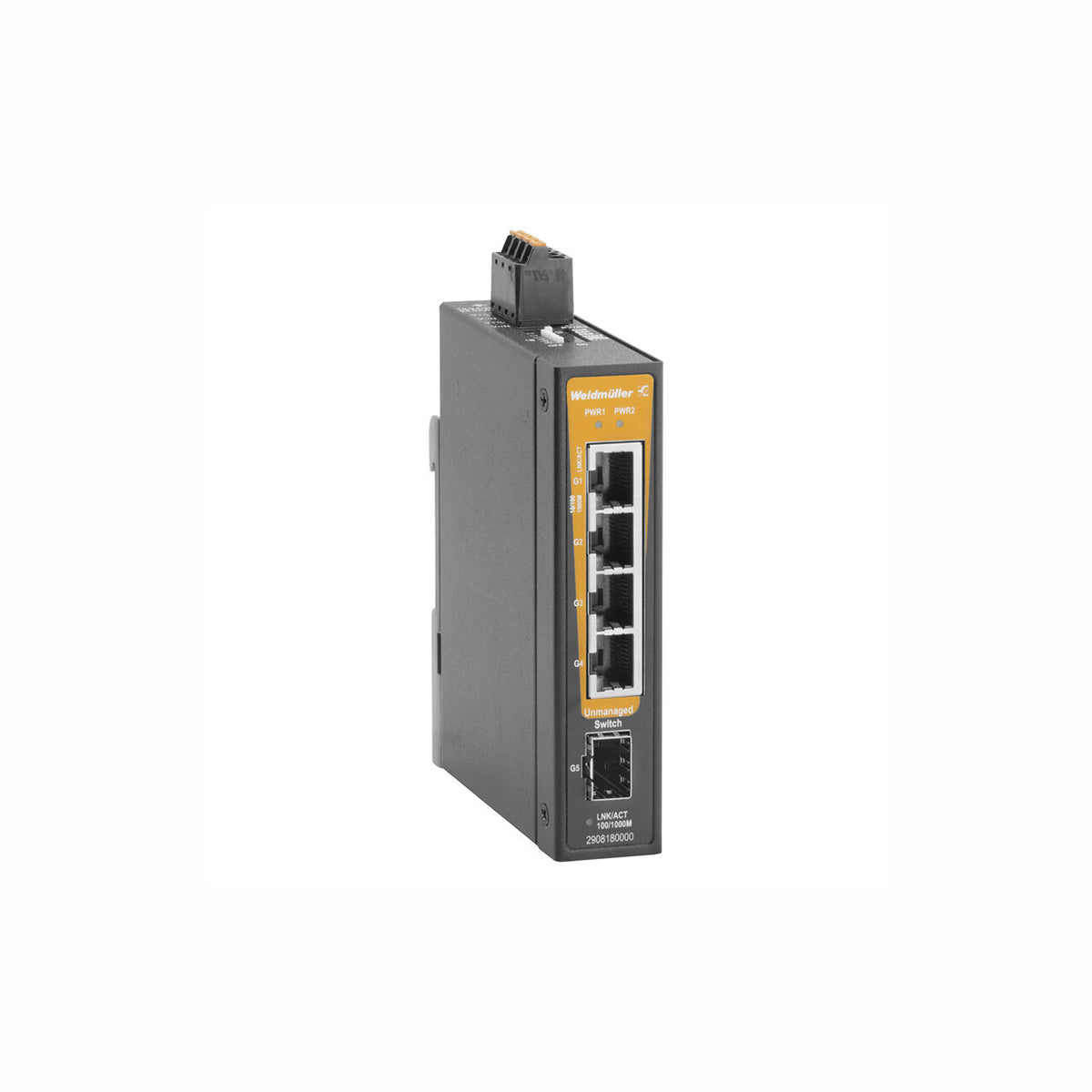

The Weidmüller IE-SW-BLB-05-4GT-1GESFP is a 5-port Gigabit Ethernet unmanaged DIN rail switch with 4 x RJ45 copper ports and 1 x Gigabit SFP slot. It replaces the EcoLine IE-SW-EL05-4GT-1GESFP (2682220000) and both BasicLine variants IE-SW-BL05-4GT-1GS (2435400000) and IE-SW-BL05T-4GT-1GS (2435410000). The GE SFP slot accepts 1000BaseSFP modules with LC-Duplex connectors, providing flexible Gigabit fibre uplink or extension capability. With full Gigabit throughput on all 5 ports, PROFINET Conformance Class A support, and comprehensive industrial and maritime certifications, this switch is suited to automation, maritime, energy, and transportation applications requiring high-bandwidth connectivity in a compact DIN rail footprint.
| Part Number | 2908180000 |
|---|---|
| Model | IE-SW-BLB-05-4GT-1GESFP |
| RJ45 Ports | 4 x RJ45 (10/100/1000BASE-T) |
| SFP Port | 1 x GE SFP slot (1000BaseSFP, LC-Duplex) |
| SFP Module | Not included — sold separately |
| Ethernet Standard | Gigabit Ethernet (1000Mbs) |
| Switching | Unmanaged |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to +75°C |
| Mounting | DIN rail (optimised clip) |
| Power Connection | PUSH-IN terminal blocks |
| Certifications | CE, UL, DNV, LR, ABS, RINA, BV, IECEx, ATEX, CCCEx |
| PROFINET | Conformance Class A (QoS + LLDP frame blocking) |
| Supersedes | IE-SW-EL05-4GT-1GESFP (2682220000), IE-SW-BL05-4GT-1GS (2435400000), IE-SW-BL05T-4GT-1GS (2435410000) |
| Brand | Weidmüller |
- Full Gigabit (1000Mbs) on all 5 ports — 4 x RJ45 copper and 1 x GE SFP for fibre
- GE SFP slot requires a 1000BaseSFP module — not included, sold separately
- Compatible with Weidmüller IE-SFP-1GE-MM-2 (multimode) and IE-SFP-1GE-SM-10/40 (singlemode) modules
- Single SKU replaces three legacy EcoLine and BasicLine variants
- PROFINET Conformance Class A, extended maritime and hazardous area certifications as standard
Available from TROPAC Australia — contact our team for SFP module selection, pricing, and availability.
