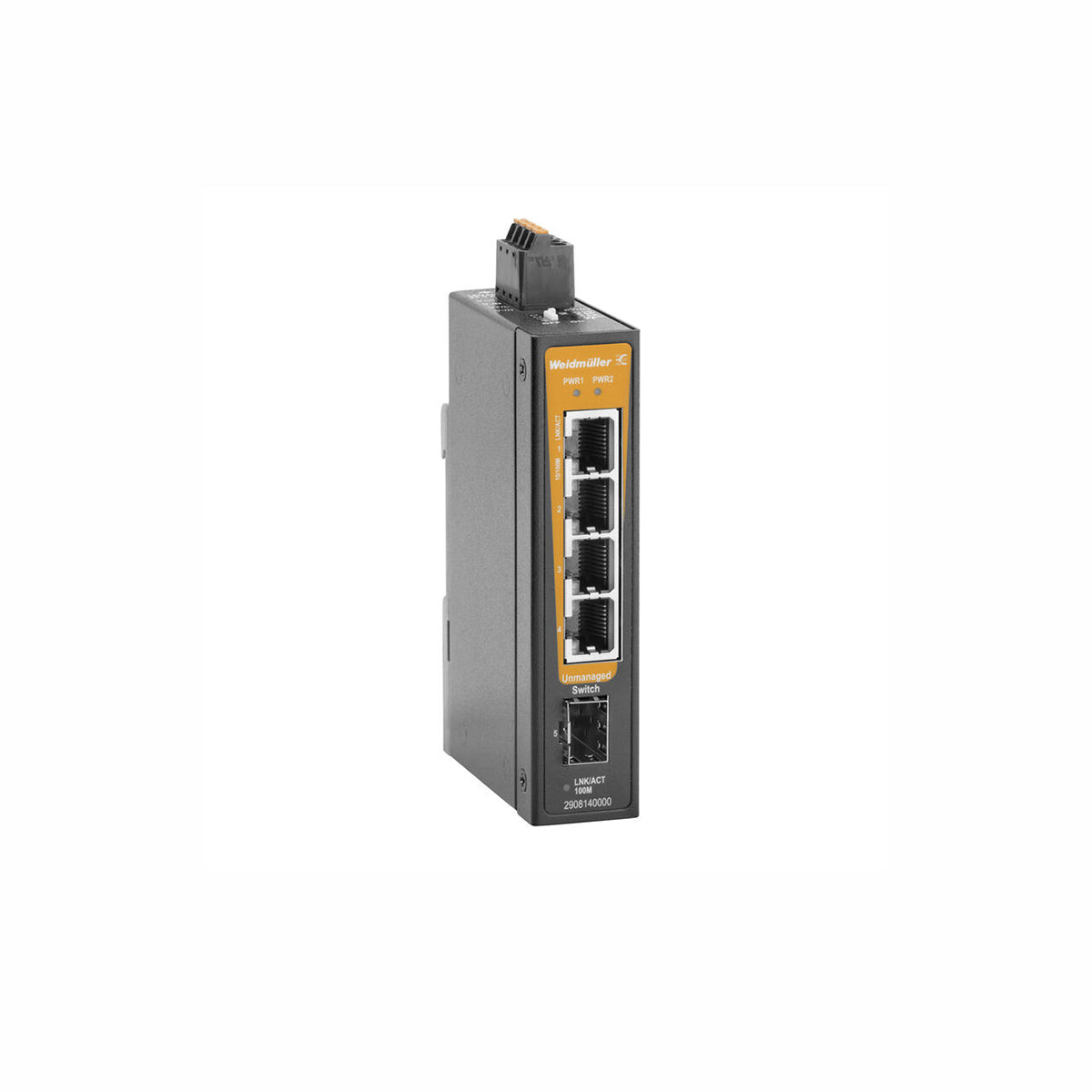

5 Port (4 x RJ45, 1 x SFP Slot) Unmanaged Network Switch, Fast Ethernet - IE-SW-BLB-05-4TX-1FESFP
Ask an expert!
The Weidmüller IE-SW-BLB-05-4TX-1FESFP is a 5-port Fast Ethernet unmanaged switch with 4 RJ45 copper ports and 1 SFP slot for fibre connectivity. It replaces six legacy BL05 variants with fixed SC and ST fibre connectors (1SC, 1ST, 1SCS in both standard and high-temp versions), consolidating them into a single flexible product. The SFP slot accepts any standard 100BaseSFP module with LC-Duplex connectors, giving installers full flexibility over the fibre type and range required. Suitable for any application requiring a copper-to-fibre uplink at the edge of the network.
| Part Number | 2908140000 |
|---|---|
| Model | IE-SW-BLB-05-4TX-1FESFP |
| RJ45 Ports | 4 x RJ45 (10/100BASE-TX) |
| Fibre Port | 1 x SFP slot (100BaseSFP, LC-Duplex connector) |
| SFP Module | Not included — sold separately |
| Ethernet Standard | Fast Ethernet |
| Switching | Unmanaged |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to +75°C |
| Mounting | DIN rail (optimised clip) |
| Power Connection | PUSH-IN terminal blocks |
| Certifications | CE, UL, DNV, LR, ABS, RINA, BV, IECEx, ATEX, CCCEx |
| PROFINET | Conformance Class A (QoS + LLDP frame blocking) |
| Supersedes | IE-SW-BL05-4TX-1SC/ST/SCS (1240870000, 1240880000, 1240890000, 1286530000, 1286540000, 1286550000) |
| Brand | Weidmüller |
- SFP slot replaces fixed SC/ST fibre connectors — choose the correct SFP module for your fibre type and distance
- One SKU replaces six BL05 fibre variants (SC, ST, SCS in standard and high-temp)
- Compatible with Weidmüller IE-SFP-1FE-MM-2 (multimode) and IE-SFP-1FE-SM-30/60 (singlemode) modules
- PROFINET Conformance Class A capable for real-time industrial network integration
- PUSH-IN terminal blocks and extended temperature rating — no separate T variant required
Available from TROPAC Australia — contact our team for SFP module selection, pricing, and availability.
