316 Stainless Steel Electrical Enclosure 400H x 300W x 200D IP55, Ventilated
- Type
- Series
- Height (mm)
- Width (mm)
- Depth (mm)
- Material
- Finish
- IP Rating
- Seal Type
- Lock Type
- Door Type
- Operating Temp
- Standards
- Certifications
Standards & certifications
IP55Dust-protected · water jets
IEC/EN/AS60529Ingress protection
CEEU conformity
UKCAUK conformity
RoHSHazard-free
IEC/EN 62208 · 61439
Tested standards

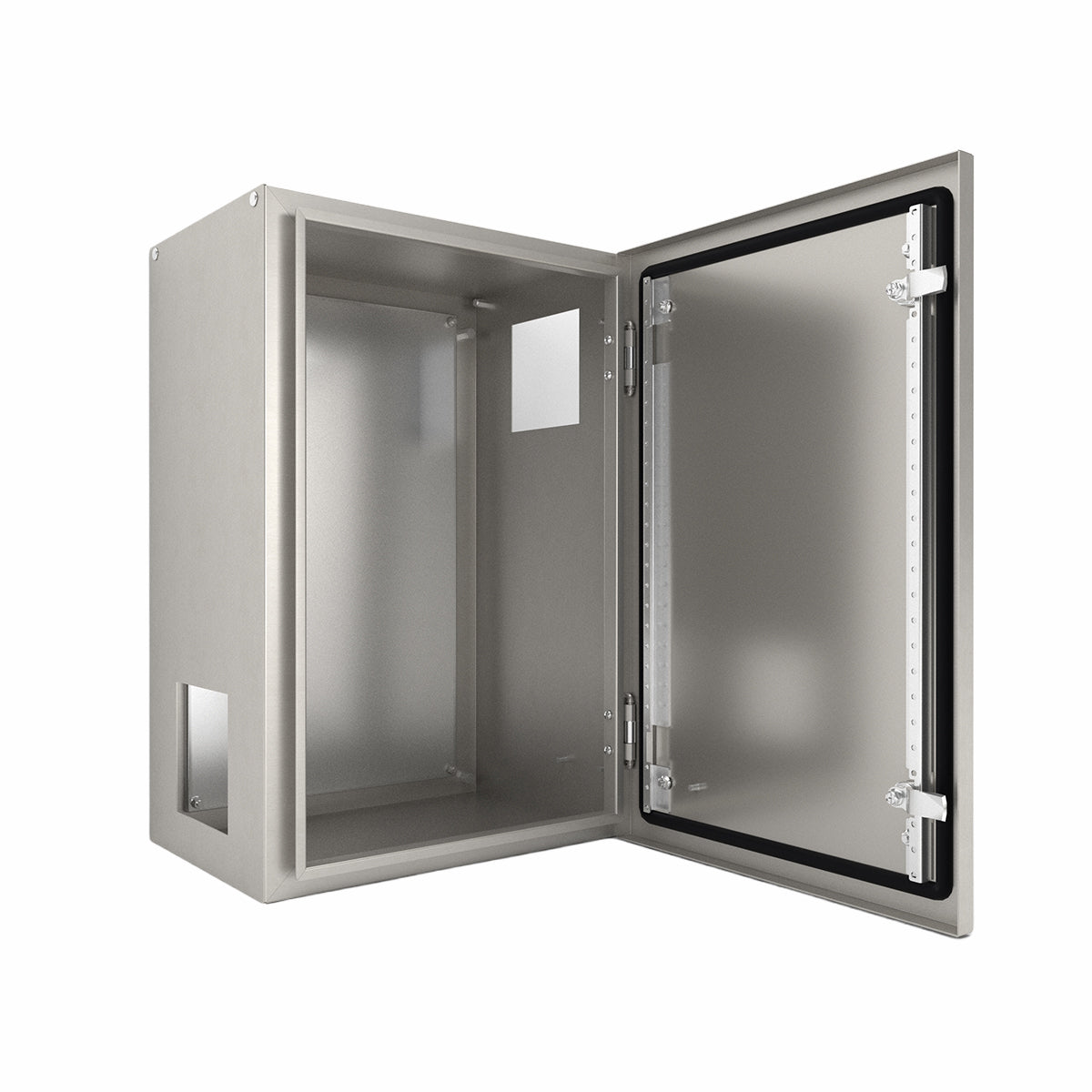

316 Stainless Steel Electrical Enclosure 400H x 300W x 200D IP55, Ventilated
IP Enclosures SS1 stainless steel electrical enclosures are wall-mounted, grade 316 stainless steel, single door construction suitable for extreme duty applications. This ventilated variant is supplied with factory-cut ventilation apertures and is rated IP55 IK10. It suits control gear, PLC assemblies and switchgear where heat-generating equipment requires airflow.
Features and Specifications
Protection: IP55 IK10
Standard: IEC 62208, IEC/EN/AS60529, RoHS
Ventilation:
Two 125mm x 125mm precision factory-cut apertures are provided for installation of fans and vents. IP55 is achieved when fitted with IP-V2000-UV Filter Vent/s and/or IP-V2200-UV Filter Fan/s. These must be ordered separately to complete the enclosure.
Material:
Body: 1.5mm Grade 316/316L Stainless Steel (Optional 304)
Door: 1.5mm Grade 316/316L Stainless Steel (Optional 304)
Device Mounting Plate: 1.5mm Galvanised Steel Sheet
Seal: Polyurethane
Surface Finish:
0.4 micron Ra surface brushed finish
Enclosure Body:
The monoblock body is fabricated using 1.5mm Grade 316/316L Stainless Steel. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling. Integral device plate mounts and M6 earth studs are provided. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.
Enclosure Door:
The robust surface mounted door is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins. The door is designed for a 110 opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. Two internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components.
Enclosure Seal:
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40C to 80C (160C short term loading).
Enclosure Lock:
Grade 316 Stainless Steel 8mm square drive quarter turn lock with key.
Device Mounting Plate:
The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.
Note: Please choose product carefully. Product selection is the responsibility of the 'Purchaser'. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.
TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
