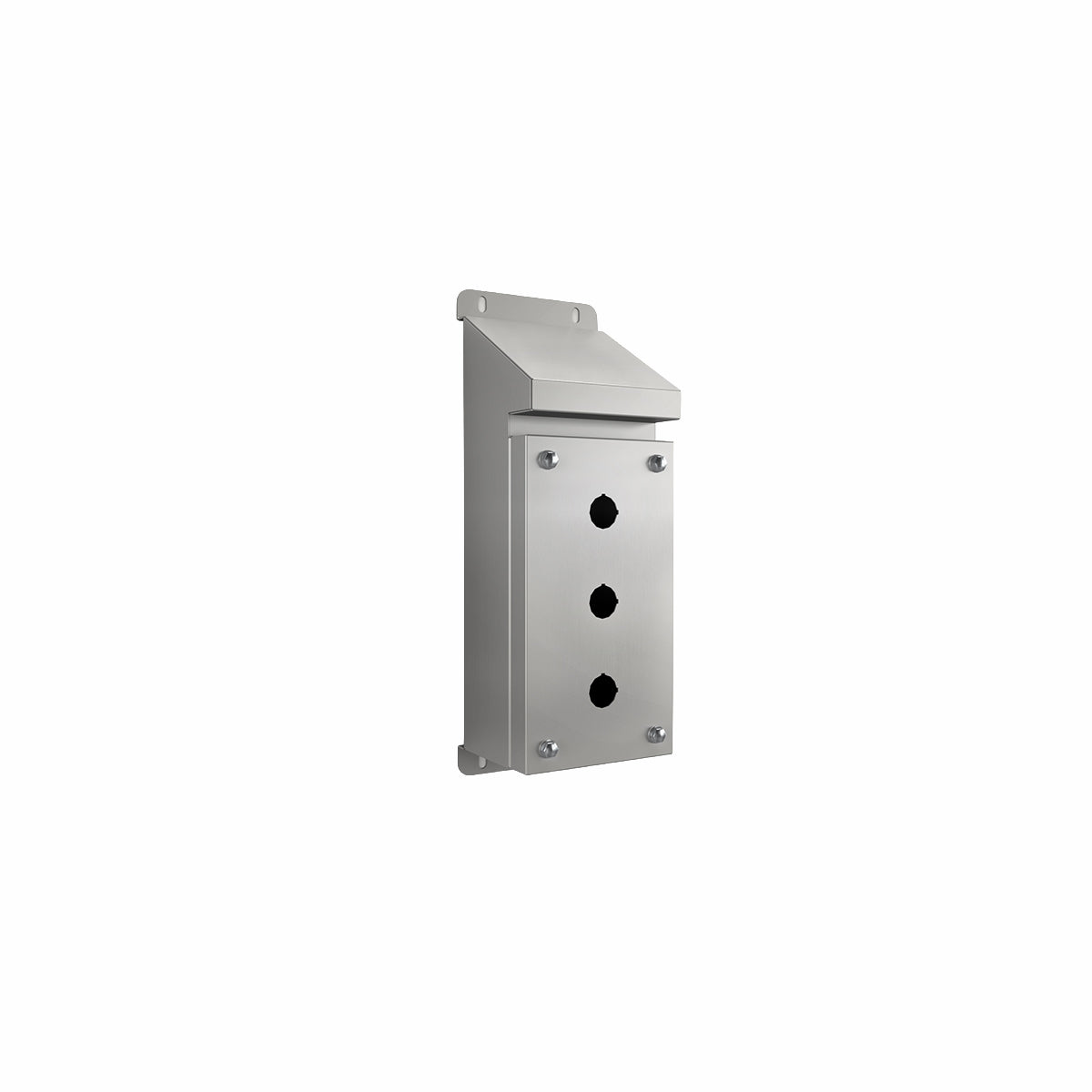

IP Enclosures SSP Sloped Roof Stainless Steel Pushbutton Enclosure – 3 x Ø22.5mm

The SSP Sloped Roof Stainless Steel Pushbutton Enclosure is designed for harsh industrial environments. The sloped roof directs water away from pushbuttons and reduces dirt buildup. It suits mining, marine, food processing, and heavy industry.

This model features 3 x Ø22.5mm pre drilled holes. The SSP range is also available with Ø30.5mm holes and in 1 hole, 2 hole, 3 hole, 4 hole, and 6 hole configurations.

Key Features

• Sloped roof design for improved water runoff
• External mounting flanges for secure installation
• High resistance to corrosion and chemicals
• Silicone seal for long term durability
• Manufactured in Italy
• 5 year warranty

Protection

• IP66
• IP67
• IP69K
• NEMA 4X

Standards and Compliance

• IEC / EN / AS 60529
• UL 508A
• RoHS Compliant

Materials

• Body: 1.0mm Grade 316 Stainless Steel
• Lid / Door: 1.0mm Grade 316 Stainless Steel
• Seal: Silicone
• Washers: NBR 70 (Nitrile Butadiene Rubber)

Construction

Body: Monoblock construction fabricated from 1.0mm Grade 316 stainless steel. The sloped roof extends past the pushbuttons for added environmental protection. Top and bottom external mounting flanges are designed for demanding mining installations.

Lid / Door: Pre drilled and secured with screws fitted with NBR 70 washers. Suitable for environments where hydrocarbons are present.

Seal: High quality silicone seal provides reliable protection against moisture and contaminants.

Technical Specifications

• Surface Finish: 0.4 micron Ra brushed finish
• Hole Configuration: 3 x Ø22.5mm
• Mass: 1.53 kg

Manufactured to strict quality, safety, and environmental standards.

Warranty: 5 Years

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
