3-Position Selector Switch 22mm IP65, Maintained

3-Position Selector Switch, Maintained, 22mm

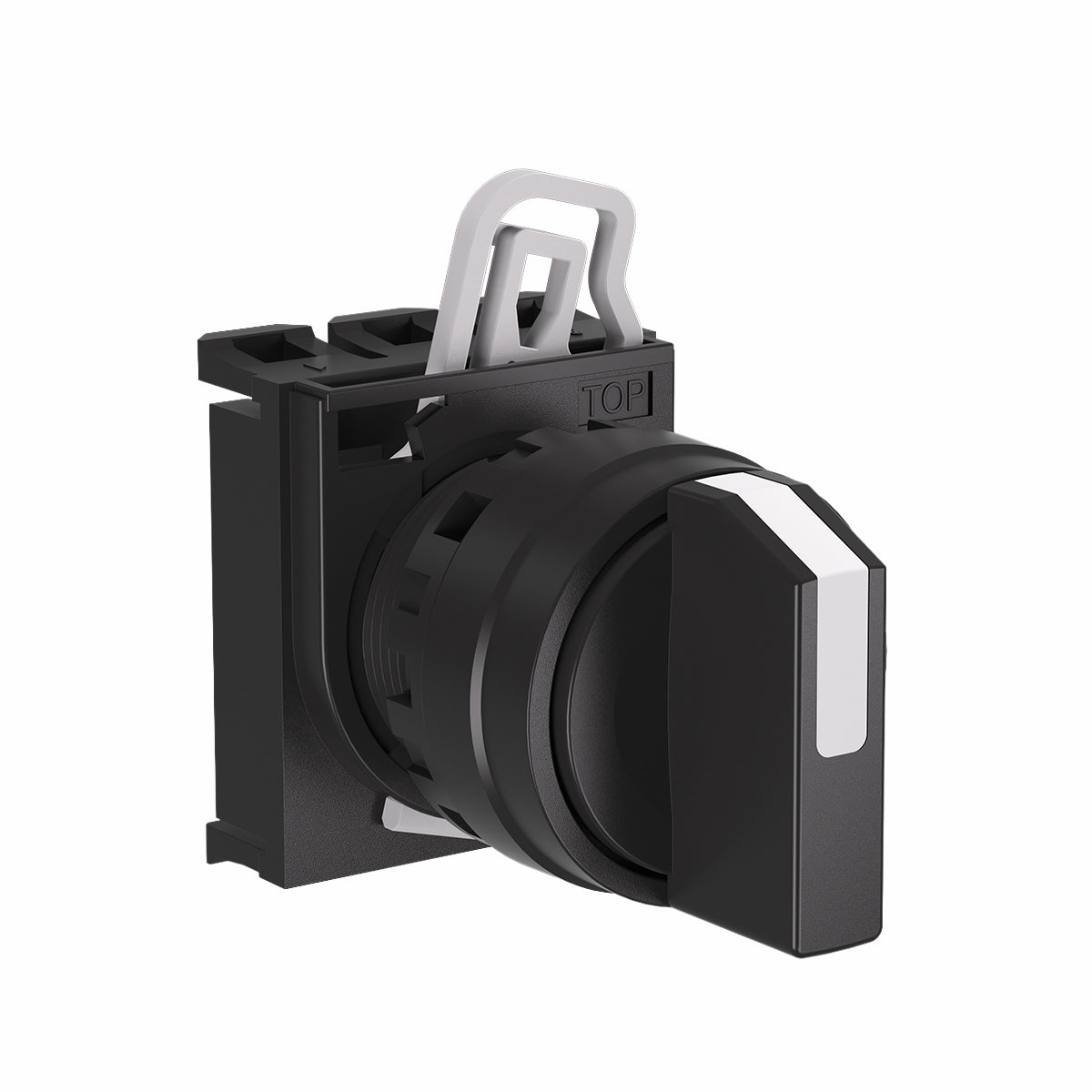

The LA151300 is a 22mm rotary selector switch with maintained action. Mounts into a standard Ø22.3mm cut-out and takes LAA-series contact blocks to suit the number of circuits being switched.

Features and Specifications

Protection: IP65. Operating range -20°C to +55°C.

Standards (& Conformities): IEC 60947-1, IEC 60947-5-1, CE, RoHS.

Mounting:

Panel cut-out: Ø22.3mm ±0.2 (M22×1)
Panel thickness: 0.8–6 mm

Contact blocks are ordered separately. This operator ships without contacts. Add the LAA-series block that matches your circuit — LAA10 (1NO), LAA01 (1NC), LAA11 (1NO+1NC), LAA20 (2NO) or LAA02 (2NC).

Materials:

PC knob, PA66 cover and housing

Manufacturer: Telergón, S.A.U., Zaragoza, Spain — European-engineered, CE marked to the Low Voltage (2014/35/EU) and RoHS (2011/65/EU) Directives.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements.
