2NC Contact Block 10A 600V, Screw Terminals

2 NC Contact Block, Screw Terminals

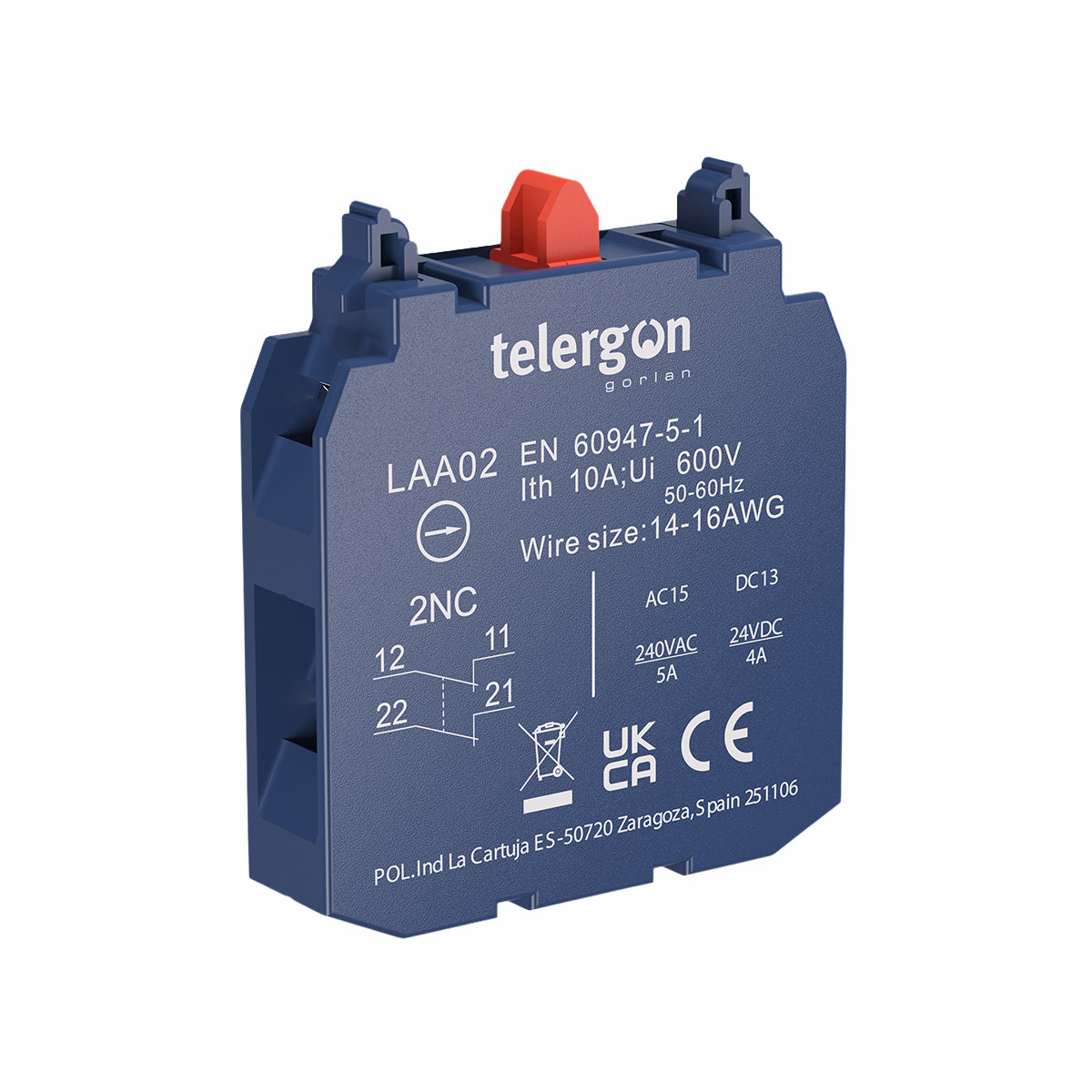

The LAA02 is a 2NC screw-terminal contact block for the Telergon LA1 22mm control range. Rated 10A thermal current at 600V insulation voltage, it clips directly to the rear of any LA1 operator and is the part that actually switches the circuit — every pushbutton, selector and emergency stop needs at least one.

Features and Specifications

Protection: IP20. Operating range -20°C to +55°C.

Standards (& Conformities): IEC 60947-1, IEC 60947-5-1, CE, RoHS.

Electrical:

Rated thermal current (Ith): 10 A
Rated insulation voltage (Ui): 600 V
Rated impulse withstand (Uimp): 2.5 kV
AC-15: 240 V / 5 A
DC-13: 24 V / 4 A
Electrical life: 50,000 cycles

Termination:

M3.5 screw terminals, tightening torque 0.8 Nm (+5% / −10%).

Materials:

PA66 housing, PBT actuator, AgNi10 contacts

Manufacturer: Telergón, S.A.U., Zaragoza, Spain — European-engineered, CE marked to the Low Voltage (2014/35/EU) and RoHS (2011/65/EU) Directives.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements.
