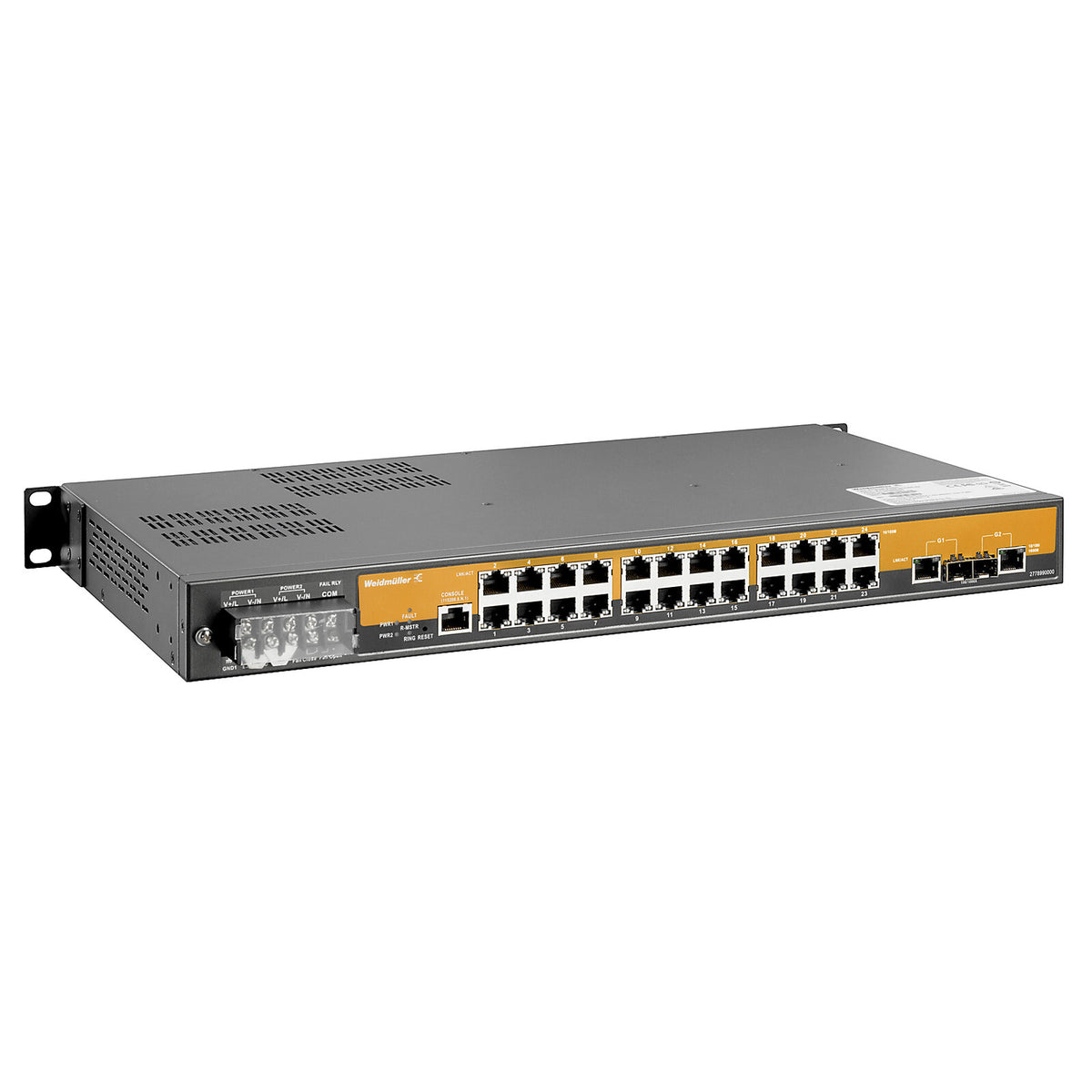

26 Port (24 x RJ45, 2 x Combo SFP) Managed Network Switch, 19-inch Rack Mount, IEC 61850-3, 24/48 V DC - IE-SW-SL26M-24TX-2GC-LV

Weidmüller IE-SW-SL26M-24TX-2GC-LV Layer 2 managed switch from the SubstationLine range, certified to IEC 61850-3 and IEEE 1613. A 19-inch rack-mount 1U unit, not a DIN rail switch. This is the low-voltage variant, running from 24 or 48 V DC rather than a 110/220 V station supply.

• Form factor: 19-inch rack mount, 1U
• Ports: 24 x RJ45 10/100BASE-T(X), 2 x combo ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
• Speed: Fast Ethernet on copper, Gigabit on combo ports, auto-negotiation and MDI/MDI-X
• Substation standards: IEC 61850-3, IEEE 1613
• Management: web browser, SNMP, CLI
• Redundancy: STP, RSTP, O-Ring, O-Chain, recovery <10/30 ms
• Supply voltage: 24 / 48 V DC, range 20–72 V DC, two isolated redundant inputs
• Operating temperature: −40 °C to +85 °C
• Humidity: 5–95 % non-condensing
• Dimensions (W x H x D): 443.7 x 44 x 262.5 mm
• Weight: 3,600 g
• Protection degree: IP30
