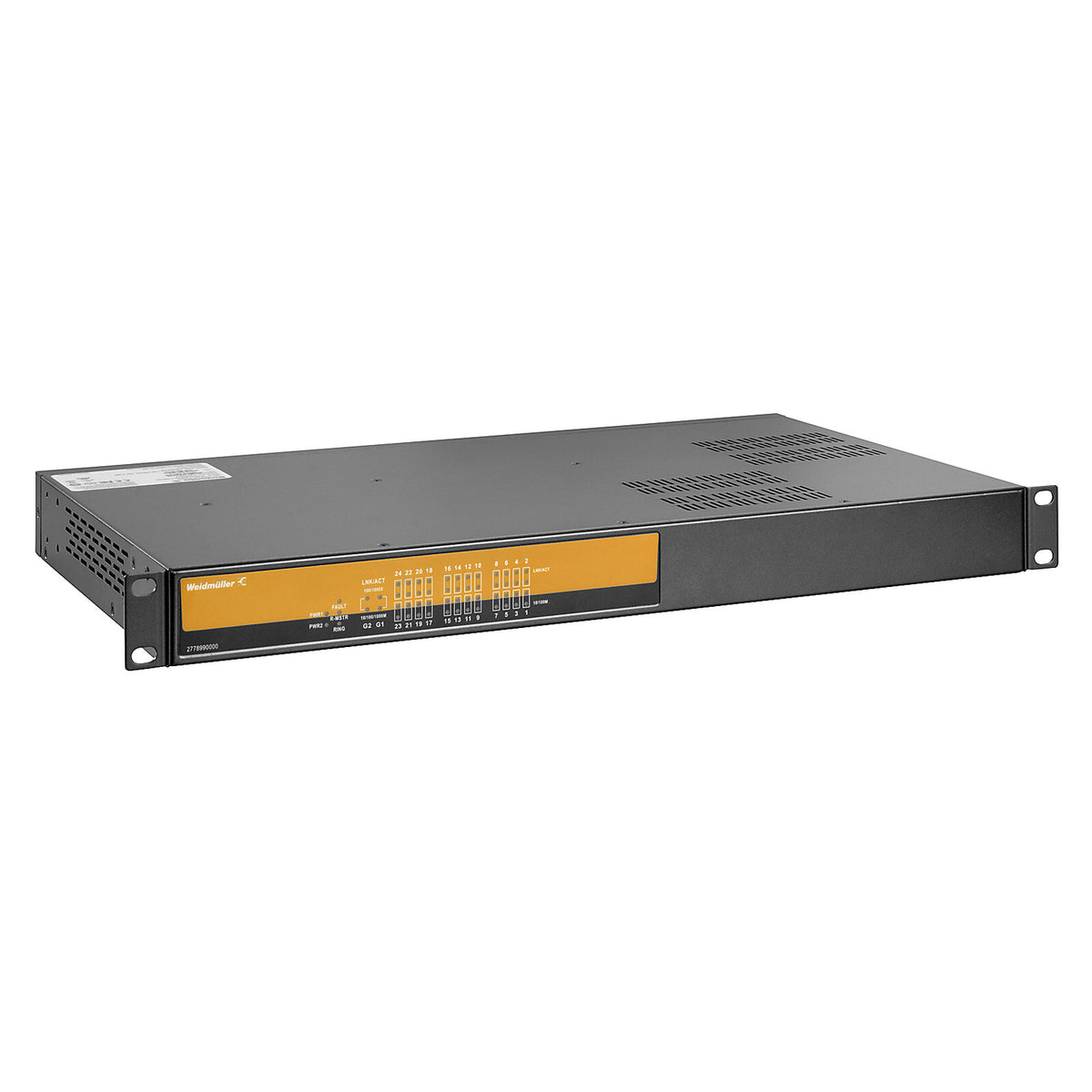

26 Port (24 x RJ45, 2 x Combo SFP) Managed Network Switch, 19-inch Rack Mount, IEC 61850-3, 110/230V AC/DC - IE-SW-SL26M-24TX-2GC-HV

Weidmüller IE-SW-SL26M-24TX-2GC-HV Layer 2 managed switch from the SubstationLine range, certified to IEC 61850-3 and IEEE 1613. Note this is a 19-inch rack-mount 1U unit, not a DIN rail switch — 24 Fast Ethernet copper ports plus two gigabit combo ports, running from a 110/220 V station supply.

• Form factor: 19-inch rack mount, 1U

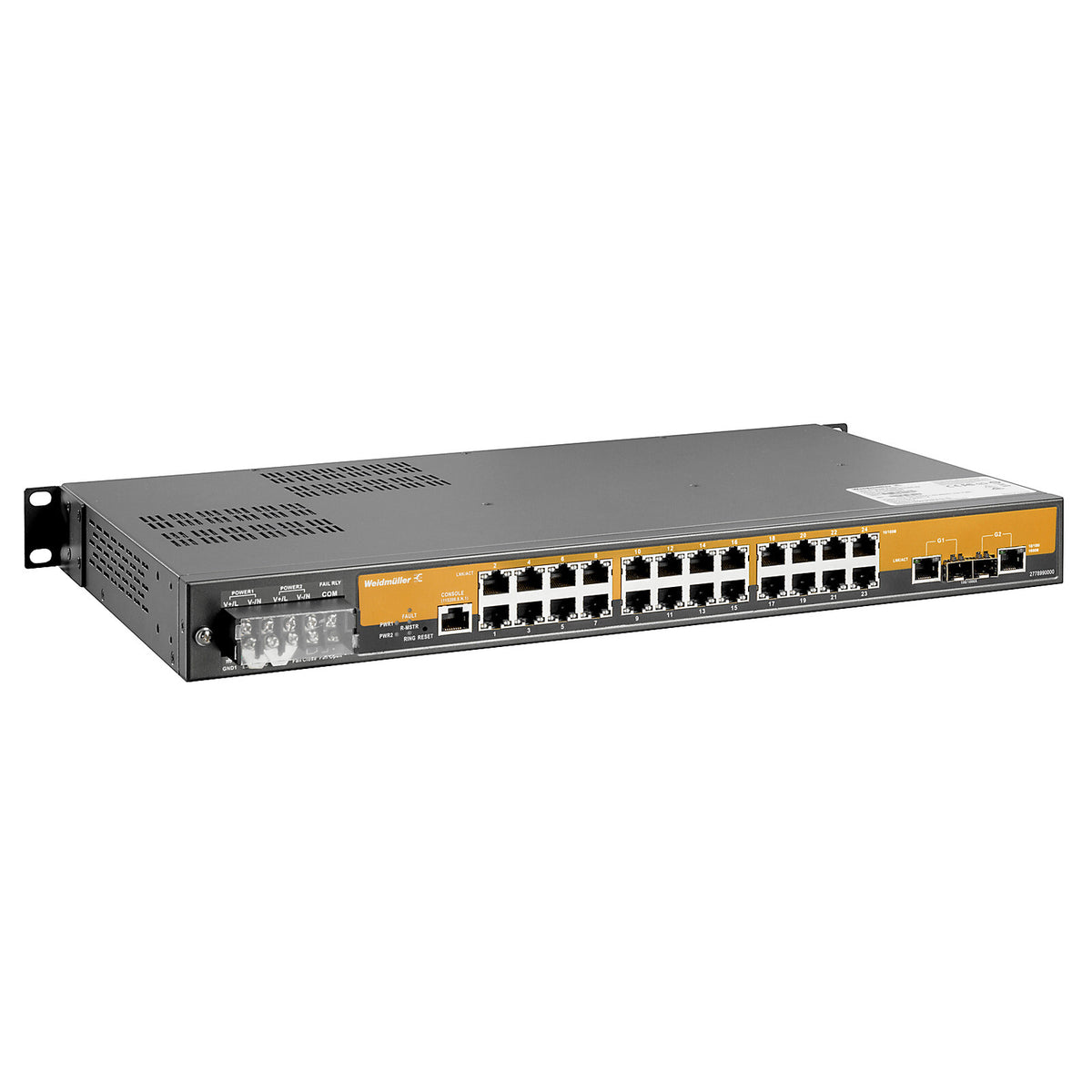

• Ports: 24 x RJ45 10/100BASE-T(X), 2 x combo ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
• Speed: Fast Ethernet on copper, Gigabit on combo ports
• Substation standards: IEC 61850-3, IEEE 1613
• Management: SNMP
• Redundancy: STP, RSTP, MRP (manager and client), recovery <10 ms
• Supply voltage: 110/220 V DC (100…370 V DC) or 110/220 V AC (100…240 V AC), two isolated redundant inputs
• Operating temperature: −40 °C to +85 °C
• Dimensions (W x H x D): 443.7 x 44 x 262.5 mm
• Weight: 4,070 g
• Protection degree: IP30
