24V 7Ah Battery 158H x 162W x 135D - DURA ECO LA-BAT 24V 7AH *Indent Item - Non-Cancellable & Non-Returnable*

The Weidmüller DURA ECO LA-BAT 24V 7AH is a 24 V DC battery module that provides the energy store for Weidmüller CP DC UPS control units. It is the 7 Ah step in the DURA ECO range, sized for panels that need a few minutes of ride-through to keep a PLC, HMI and I/O alive through a dip or an orderly shutdown, rather than long-duration backup.

• Nominal voltage: 24 V DC
• Capacity: 7 Ah

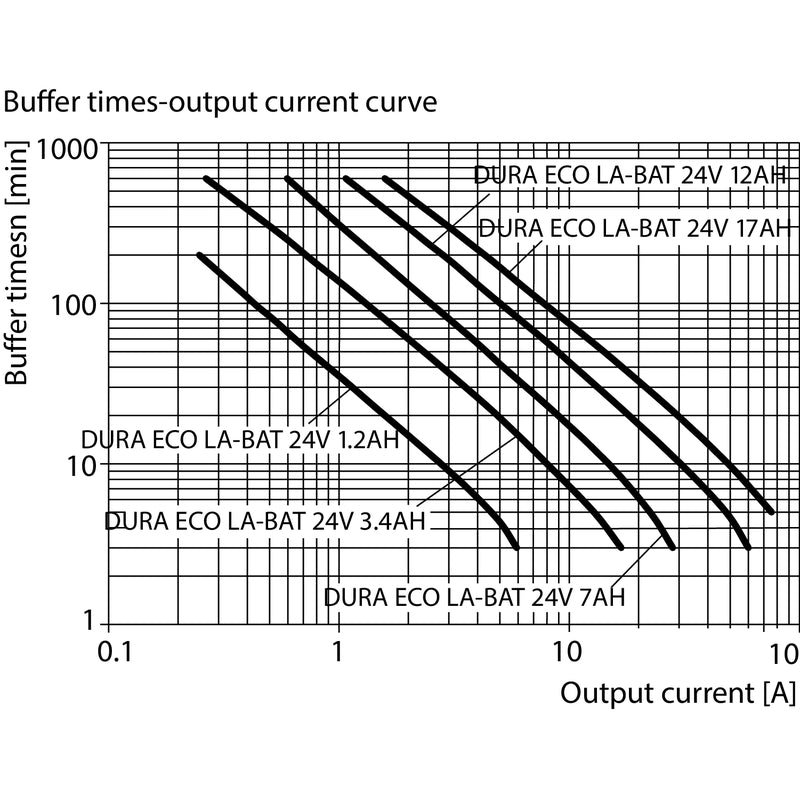

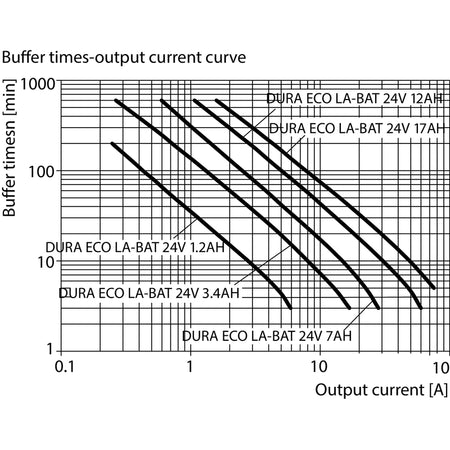

• Buffer time: 3 min at 35 A, 5 min at 27 A, 30 min at 8.5 A
• Suits: CP DC UPS 24V 10A, CP DC UPS 24V 20A and CP DC UPS 24V 40A control units
• Maximum charging current: 1.08 A
• Connection: Screw terminals (+/-), 0.5-16 mm² rigid, 0.5-10 mm² flexible
• Operating temperature: -15 °C to +50 °C
• Protection degree: IP20
• Dimensions: 162 x 158 x 135 mm (W x H x D), 6.12 kg
