24V 3.4Ah Battery 141H x 108W x 166D - DURA ECO LA-BAT 24V 3.4AH *Indent Item - Non-Cancellable & Non-Returnable*

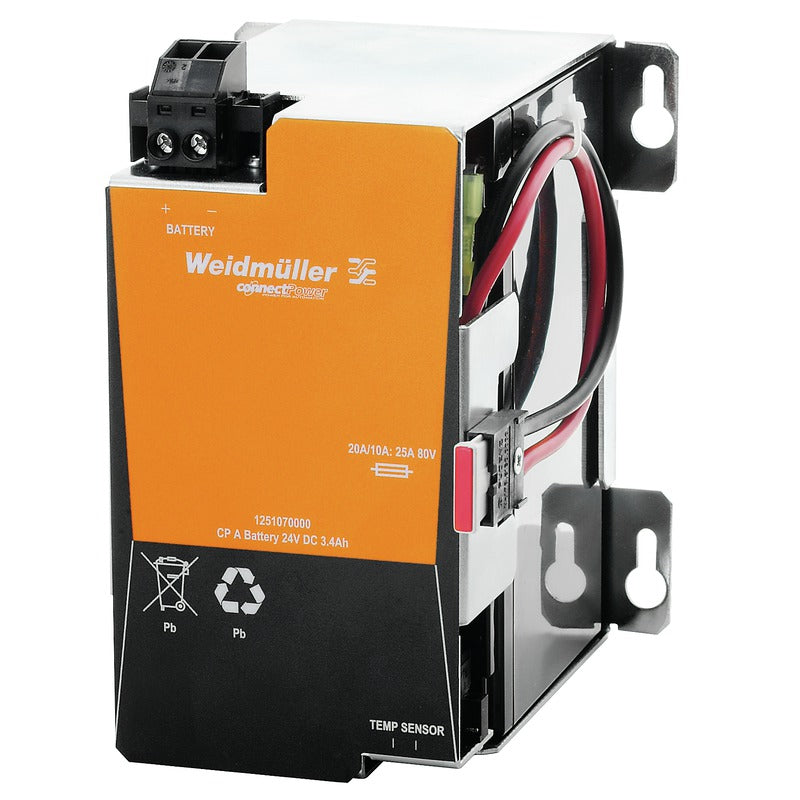

The Weidmüller DURA ECO LA-BAT 24V 3.4AH is a DIN rail battery module that provides the energy store for Weidmüller CP DC UPS units on a 24 V DC control rail. It uses sealed, maintenance-free lead-fleece cells and includes an NTC probe so the UPS can monitor pack temperature, making it the straightforward choice where a panel needs a few minutes of ride-through for a PLC, HMI or shutdown sequence.

• Chemistry: sealed, maintenance-free lead-fleece (lead-acid)
• Rating: 24 V DC, 3.4 Ah

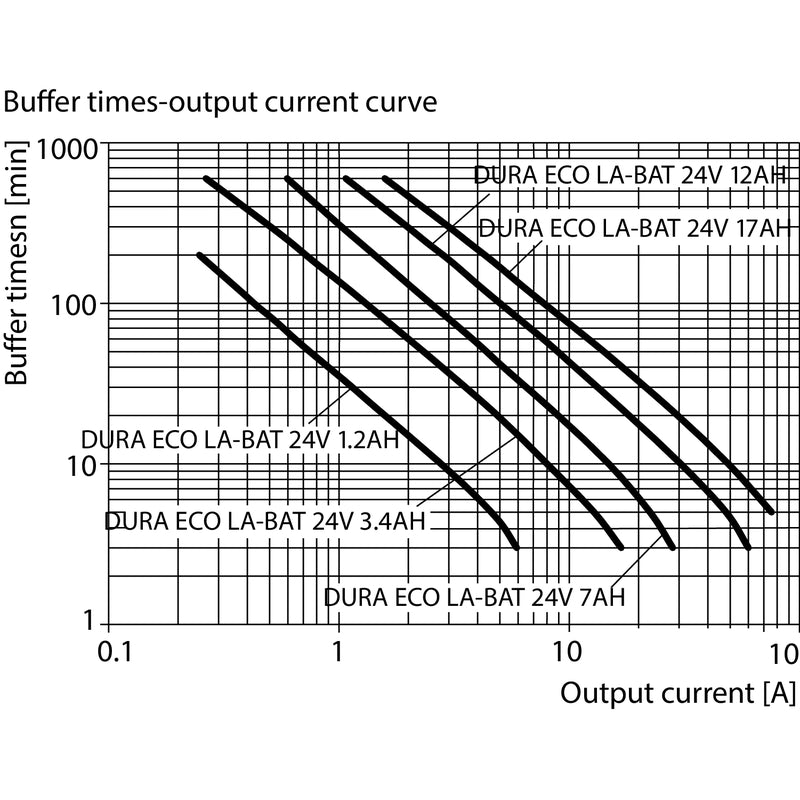

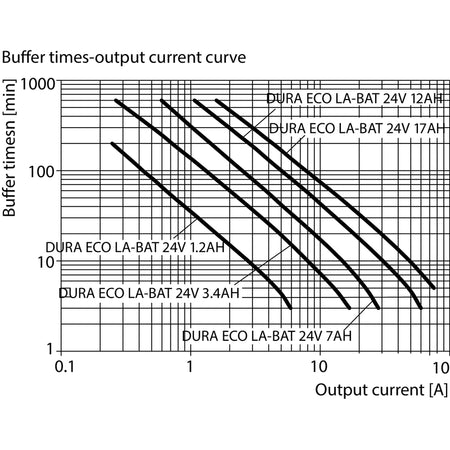

• Buffer time: 3 min at 17 A, 5 min at 13 A, 30 min at 3.7 A
• Suits: CP DC UPS 24V 10A/20A and CP DC UPS 24V 40A
• Charging current: max. 0.51 A
• Monitoring: NTC 100 kΩ temperature probe
• Protection: 25 A fuse, protection class III SELV
• Operating temperature: -15 °C to +50 °C charging, -20 °C to +60 °C discharging
• Dimensions: 108 x 141 x 166 mm (W x H x D), 3.9 kg
