24V 17Ah Battery 178H x 242W x 189D - DURA ECO LA-BAT 24V 17AH *Indent Item - Non-Cancellable & Non-Returnable*

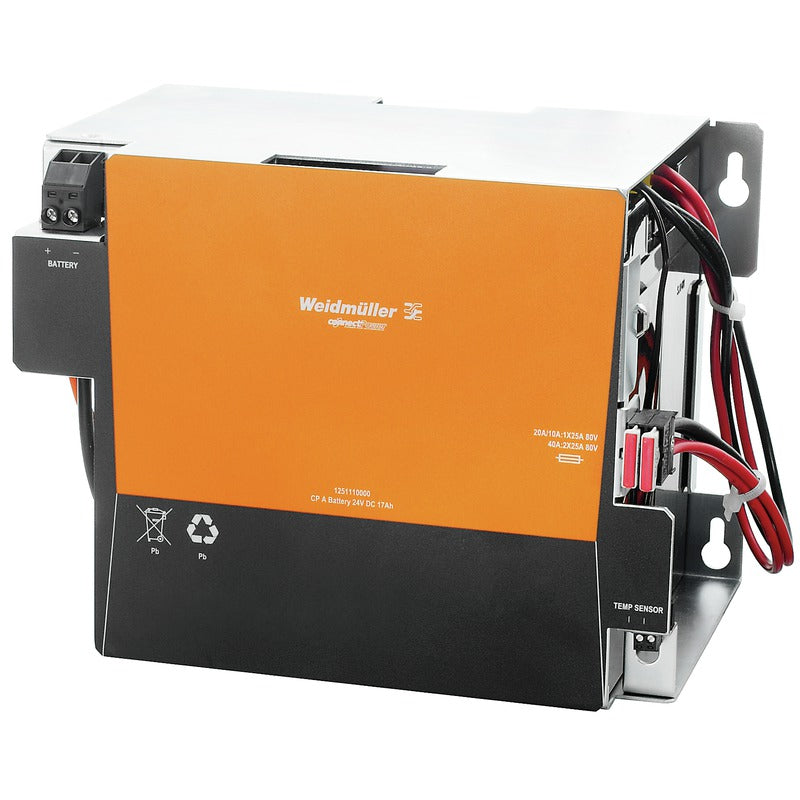

The Weidmüller DURA ECO LA-BAT 24V 17AH is a battery module that stores the energy a Weidmüller CP DC UPS controller draws on to hold up a 24 V DC system during a mains failure. It is the largest module in the DURA ECO range and is specified where a whole panel load has to keep running for tens of minutes, not just long enough for an orderly shutdown.

• Nominal voltage: 24 V DC
• Nominal capacity: 17 Ah
• Compatibility: CP DC UPS 24V 10A/20A and CP DC UPS 24V 40A control units
• Buffer time: 60 min at 12 A, 30 min at 21 A, 10 min at 42 A
• Maximum output current: 50 A
• Maximum charging current: 2 A
• Operating temperature: -15 °C to +50 °C, 5-95 % RH
• Approvals: cULus E258476, RoHS, IP20, protection class III SELV
• Dimensions: 242 x 178 x 189 mm (W x H x D), 13.1 kg
