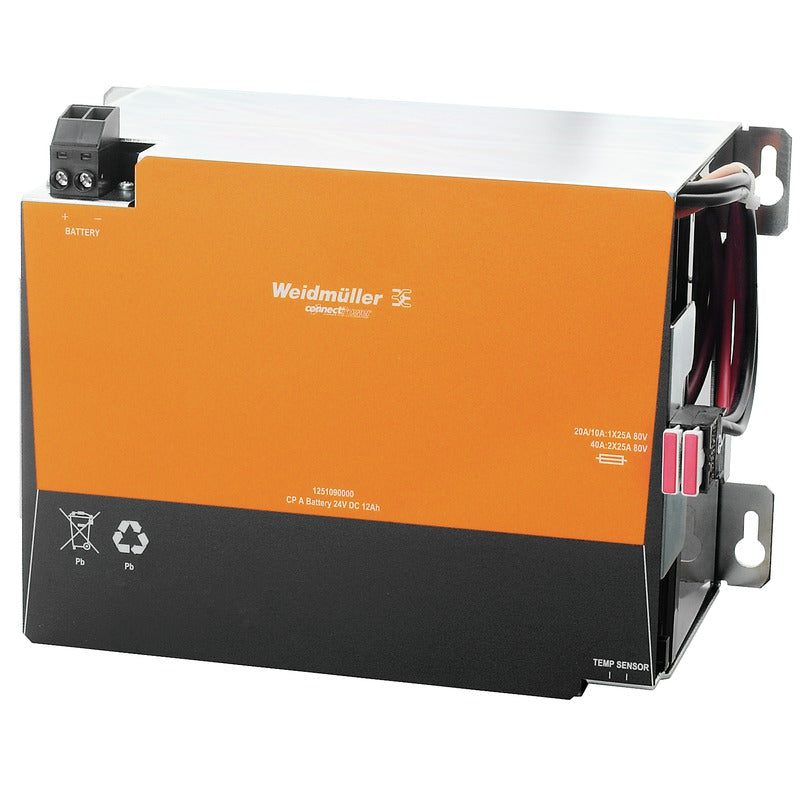

24V 12Ah Battery 158H x 229W x 135D - DURA ECO LA-BAT 24V 12AH *Indent Item - Non-Cancellable & Non-Returnable*

The Weidmüller DURA ECO LA-BAT 24V 12AH is a 24 V DC, 12 Ah battery module that provides the energy store for a Weidmüller DC-UPS holding up control and IT loads through a mains interruption. It is the economy DURA battery, matched to the CP DC UPS 24V 10A/20A and CP DC UPS 24V 40A units, and is the option to take where the requirement is minutes of ride-through for a controlled shutdown rather than long-duration standby.

• Nominal voltage: 24 V DC
• Capacity: 12 Ah

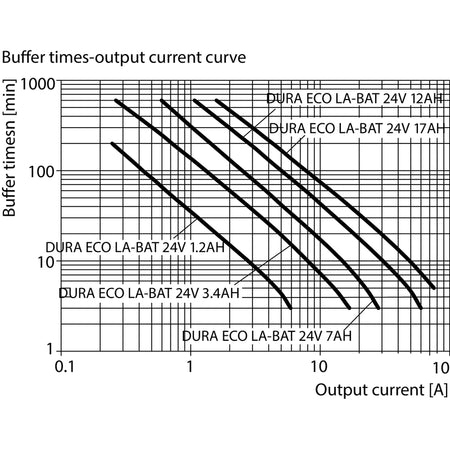

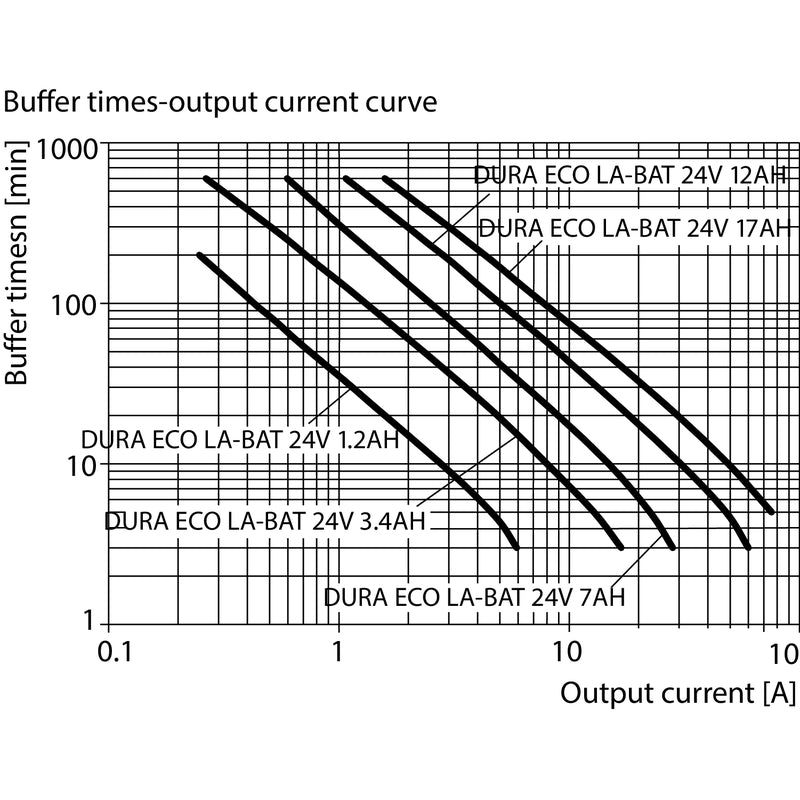

• Buffer time: 46 A for 5 min, 30 A for 10 min, 8.1 A for 60 min
• Charging current: 1.8 A maximum
• Compatibility: CP DC UPS 24V 10A/20A and CP DC UPS 24V 40A
• Service life: 5.65 years
• Connection: Two input terminals (+/-) to 10 mm²; pluggable screw connection for signal
• Mounting: DIN rail or wall
• Temperature: -15 °C to +50 °C
• Dimensions: 229 x 158 x 135 mm (W x H x D), 9.7 kg
