24 x RJ45 Port Unmanaged Network Switch, Fast Ethernet (10/100Mbs) - IE-SW-BLB-24-24TX
Ask an expert!
- IP Rating
- Size
Standards & certifications
IP20Ingress protection

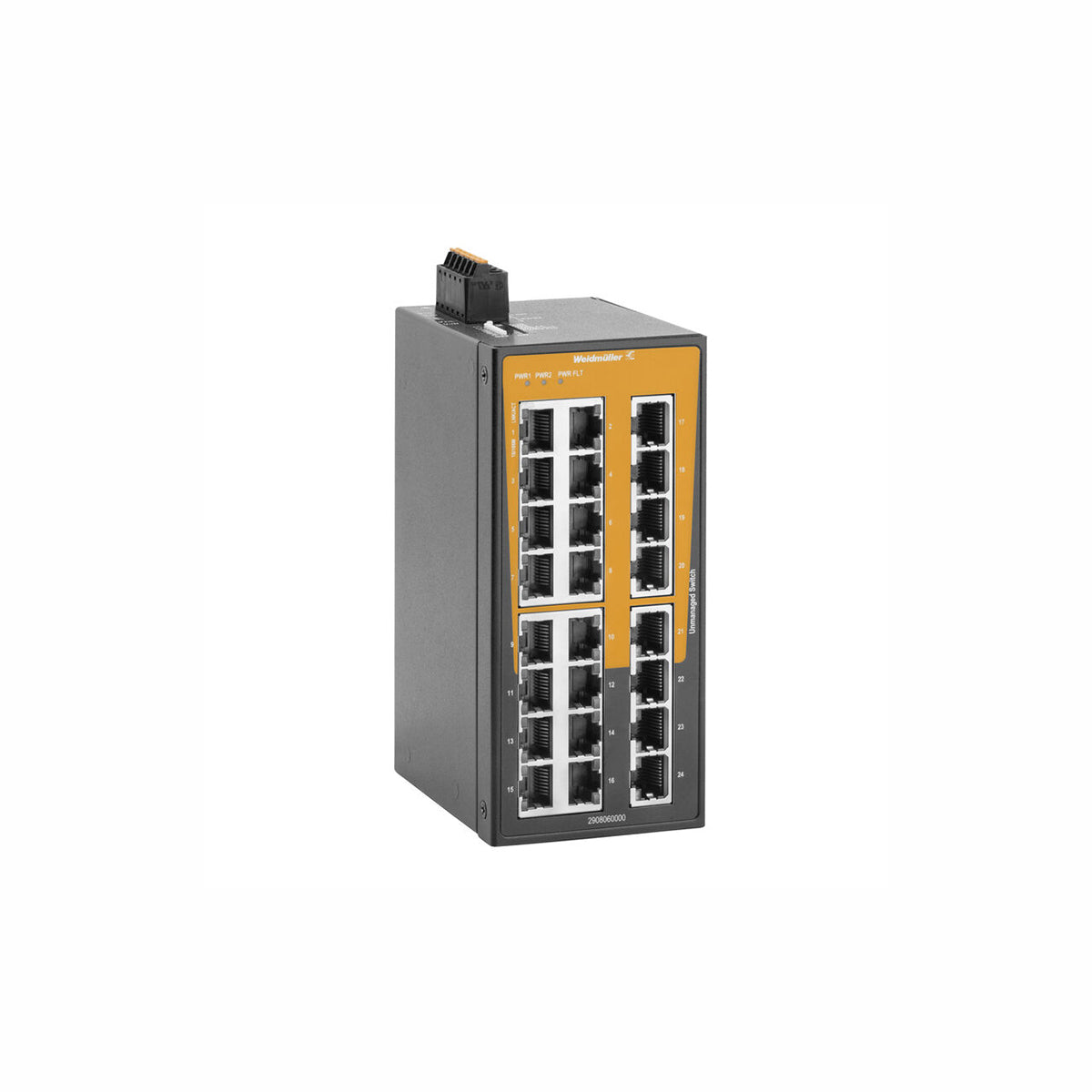

The Weidmüller IE-SW-BLB-24-24TX is a 24-port Fast Ethernet unmanaged DIN rail switch from the BLB series, replacing the EcoLine EL24-24TX. Offering the highest port count in the BLB unmanaged range, it is designed for high-density panel builds where a large number of devices require straightforward copper Ethernet connectivity. Full industrial and maritime certifications, PROFINET Conformance Class A capability, and an extended temperature rating make it suitable for demanding environments including data centres, transportation hubs, and industrial automation.
| Part Number | 2908060000 |
|---|---|
| Model | IE-SW-BLB-24-24TX |
| Ports | 24 x RJ45 (10/100BASE-TX) |
| Ethernet Standard | Fast Ethernet |
| Switching | Unmanaged |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to +75°C |
| Mounting | DIN rail (optimised clip) |
| Power Connection | PUSH-IN terminal blocks |
| Certifications | CE, UL, DNV, LR, ABS, RINA, BV, IECEx, ATEX, CCCEx |
| PROFINET | Conformance Class A (QoS + LLDP frame blocking) |
| Supersedes | IE-SW-EL24-24TX (2682190000) |
| Brand | Weidmüller |
- Highest port count in the BLB unmanaged range — 24 x RJ45 in a DIN rail form factor
- PROFINET Conformance Class A capable for integration into real-time industrial networks
- Maritime (DNV, LR, ABS, RINA, BV) and hazardous area (ATEX, IECEx) certifications as standard
- PUSH-IN terminal blocks and optimised DIN-rail clip for faster panel commissioning
- Direct replacement for the EcoLine EL24-24TX with no configuration change required
