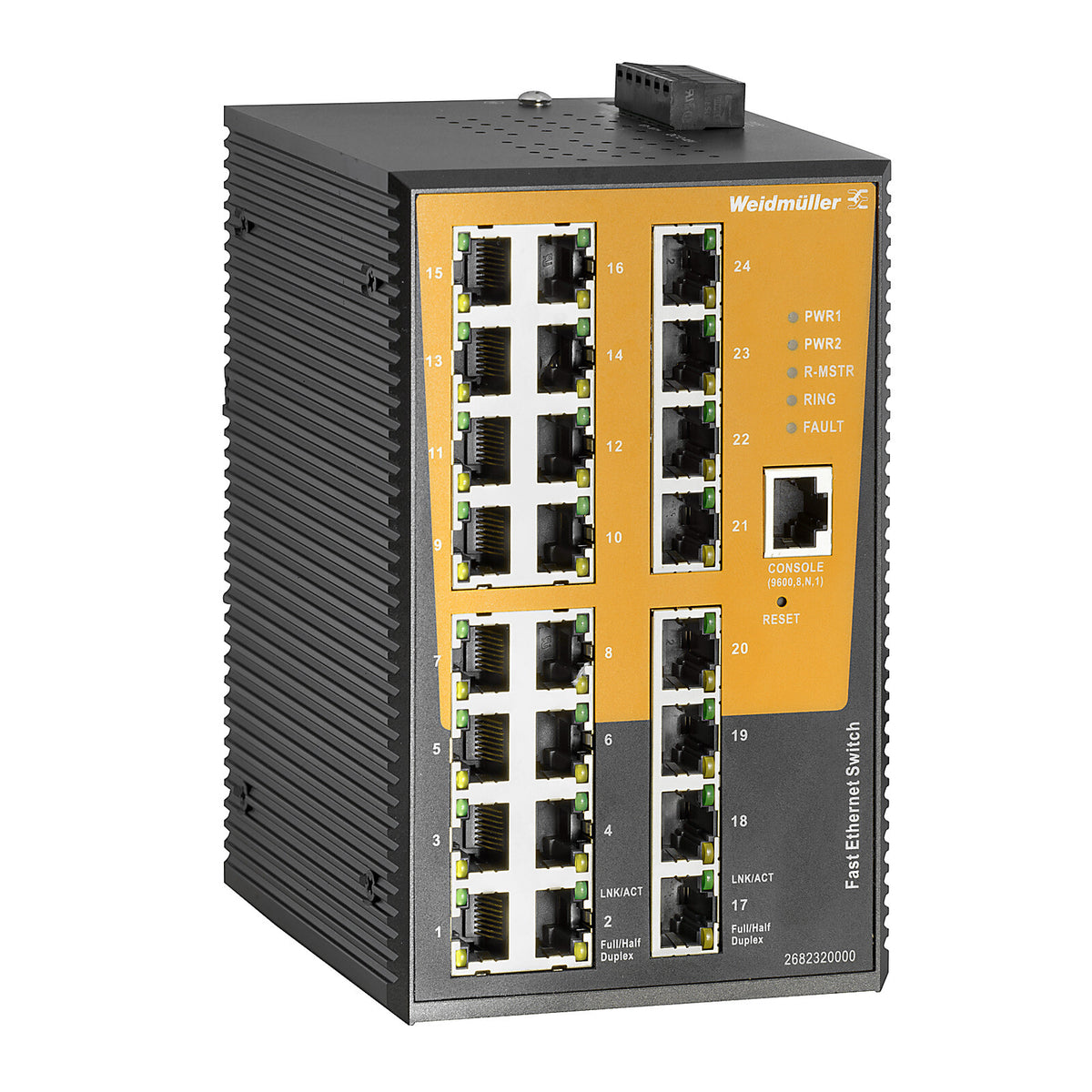

24 x RJ45 Port Managed Network Switch, Fast Ethernet - IE-SW-AL24M-24TX

Weidmüller IE-SW-AL24M-24TX fully managed Fast Ethernet switch with 24 copper ports. A high port-count DIN rail switch for large control cabinets and distributed I/O, with the full managed feature set — tag-based VLANs, multiple redundancy protocols, QoS and 802.1X port authentication.

• Ports: 24 x RJ45 10/100BaseT(X) with auto-negotiation and auto MDI/MDI-X
• Speed: Fast Ethernet, 10/100 Mbit/s
• VLAN: tag-based, up to 4095 VLANs
• Redundancy: STP, RSTP, MSTP, O-Ring, O-Chain
• Security and QoS: IEEE 802.1X authentication, traffic filtering, QoS
• Supply voltage: 12 / 24 / 48 V DC, 10.8–52.8 V, two redundant inputs
• Operating temperature: −40 °C to +75 °C
• Dimensions (W x H x D): 96.4 x 154 x 108.5 mm
• Mounting: DIN rail
• Protection degree: IP30
• Approvals: UL E141197, EN 55032, EN 55024, RoHS
