Home » 19" Data Racks » 19" Data Rack 32U/RU x 600D IP66 Grey with Rear Door

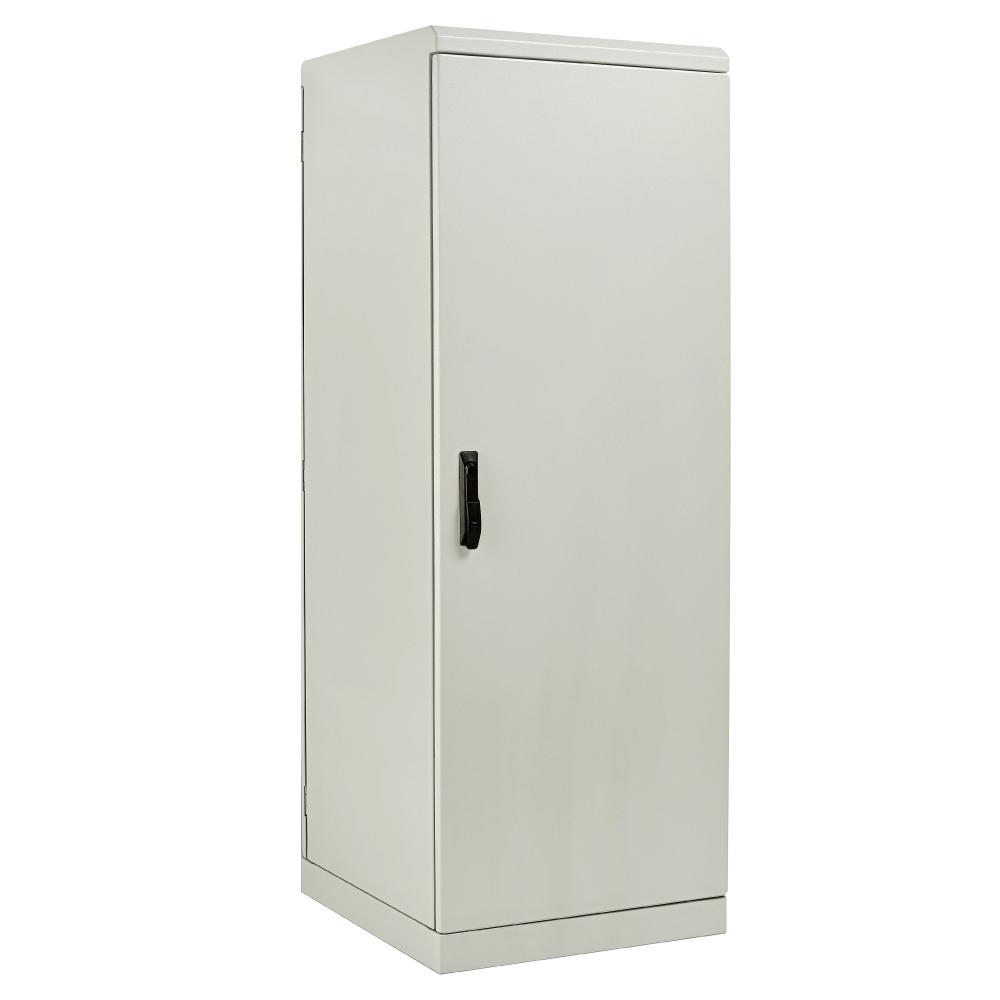

19" Data Rack 32U/RU x 600D IP66 Grey with Rear Door — IP Enclosures
IP-SD1606060-RD - image 2
IP-SD1606060-RD - image 3
IP-SD1606060-RD - image 4
19" Data Rack 32U/RU x 600D IP66 Grey with Rear Door — IP Enclosures
IP-SD1606060-RD - image 2
IP-SD1606060-RD - image 3
IP-SD1606060-RD - image 4

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

19" Data Rack 32U/RU x 600D IP66 Grey with Rear Door

SKU
$1,906.26 ex. GST $2,096.89 inc. GST
In stock
36 in stock across 2 warehouses
  • Type Floor Standing
  • Series SD
  • Height (mm) 1,600
  • Width (mm) 600
  • Depth (mm) 600
  • Material Steel
  • Colour Grey
  • Finish UL Approved Epoxy Polyester Powder Coat
  • IP Rating IP66
  • Seal Type Polyurethane FIP
  • Lock Type 5mm Double Bit Quarter Turn
  • Door Type Single Door
  • Operating Temp −40°C to +80°C
  • Standards
    • IEC 62208
    • IEC/EN/AS60529
    • EIA-310-D
  • Certifications
    • IP66
    • IK10
    • CE
    • UKCA
    • RoHS
  • Size 32RU

Standards & certifications

IP66Dust-tight · powerful jets IEC/EN/AS60529Ingress protection EIA- EIA-310-D CEEU conformity UKCAUK conformity RoHSHazard-free IEC/EN 62208 Tested standards
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG

19" Data Rack 32U/RU x 600D IP66 Grey with Rear Door

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
