18 Port (16 x RJ45 Fast Ethernet, 2 x Gigabit SFP Slot) Unmanaged Network Switch - IE-SW-BLB-18-16TX-2GESFP
- Type
- Material
- Colour
- IP Rating
- Size
Standards & certifications
IP30Ingress protection

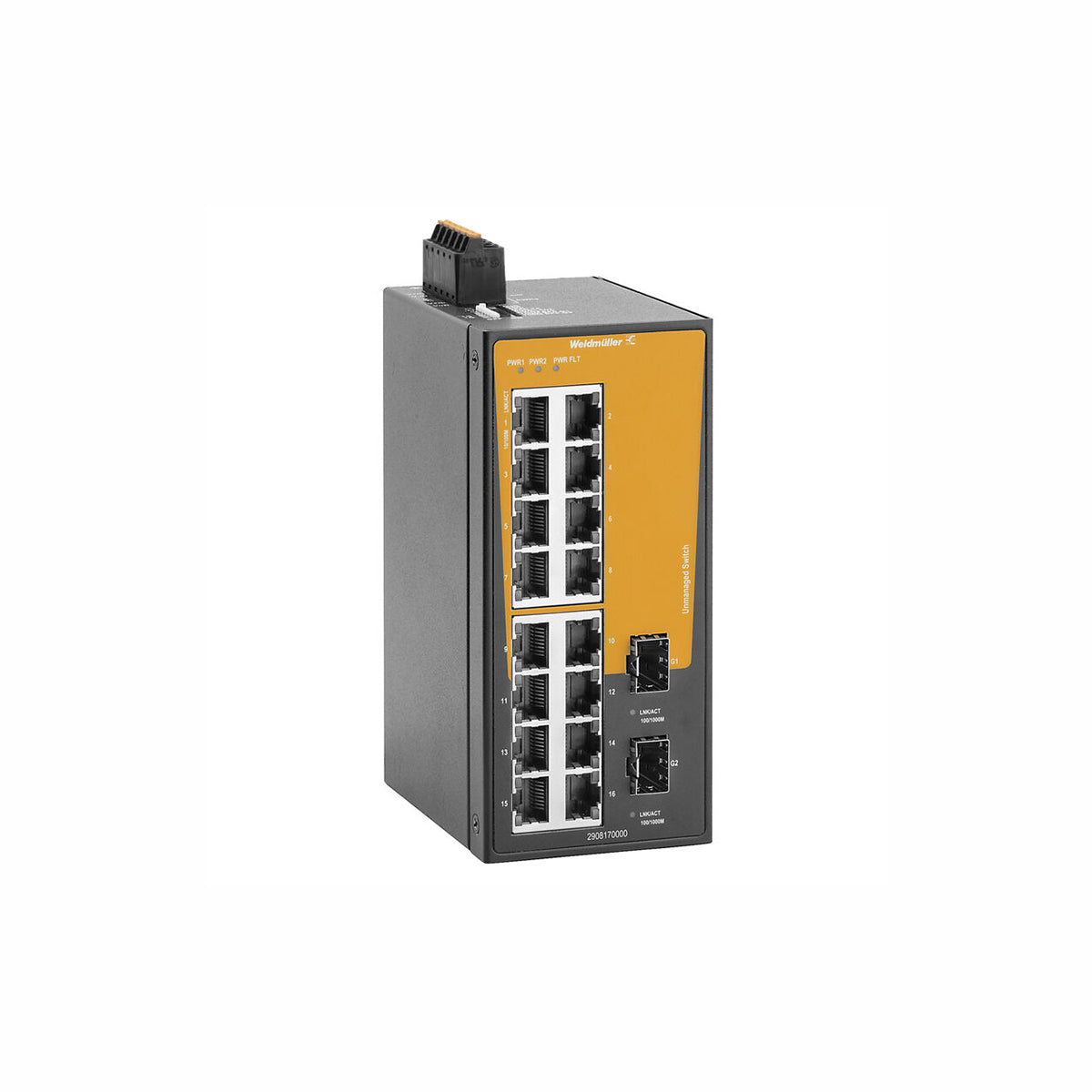

The Weidmüller IE-SW-BLB-18-16TX-2GESFP is an 18-port unmanaged DIN rail switch with 16 Fast Ethernet RJ45 ports and 2 Gigabit SFP slots. It replaces the EcoLine EL18-16TX-2GC, upgrading the combo ports (which combined copper and SFP in a shared slot) to two dedicated Gigabit SFP slots — giving both 16 copper ports and 2 independent GE fibre uplinks simultaneously. The SFP slots accept 1000BaseSFP modules with LC-Duplex connectors, making this model well suited to high-density copper installations requiring Gigabit fibre uplinks to aggregation switches in factory automation, building management, and transportation applications.
| Part Number | 2908170000 |
|---|---|
| Model | IE-SW-BLB-18-16TX-2GESFP |
| RJ45 Ports | 16 x RJ45 (10/100BASE-TX) |
| SFP Ports | 2 x GE SFP slots (100/1000BaseSFP, LC-Duplex) |
| SFP Modules | Not included, sold separately (up to 2) |
| Ethernet Standard | Fast Ethernet copper / Gigabit SFP |
| Switching | Unmanaged |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to +75°C |
| Mounting | DIN rail (optimised clip) |
| Power Connection | PUSH-IN terminal blocks |
| Certifications | CE, UL, DNV, LR, ABS, RINA, BV, IECEx, ATEX, CCCEx |
| PROFINET | Conformance Class A (QoS + LLDP frame blocking) |
| Supersedes | IE-SW-EL18-16TX-2GC (2682200000) |
| Brand | Weidmüller |
- Dedicated Gigabit SFP slots replace combo ports of predecessor — 16 copper ports and 2 GE fibre uplinks available simultaneously
- Use Gigabit (1000BaseSFP) modules for full uplink speed. Sold separately, up to 2 per switch
- Compatible with Weidmüller IE-SFP-1GE-MM-2 (multimode) and IE-SFP-1GE-SM-10/40 (singlemode) modules
- High-density copper connectivity with Gigabit fibre uplink capability in a single DIN rail unit
- PROFINET Conformance Class A, extended certifications, and -40°C to +75°C as standard
Available from TROPAC Australia — contact our team for SFP module selection, pricing, and availability.
