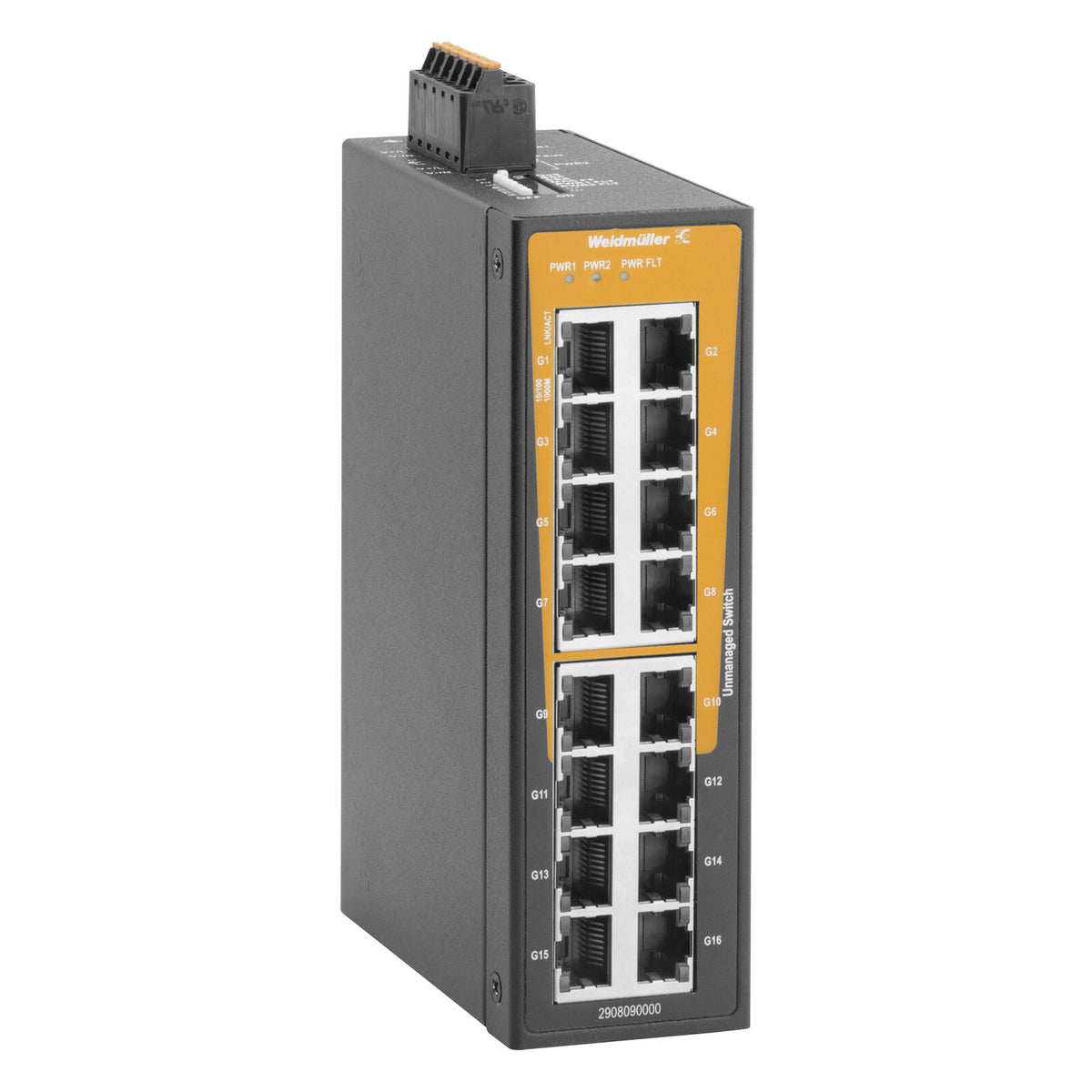

16 X RJ45 PORT UNMANAGED NETWORK SWITCH, GIGABIT ETHERNET - IE-SW-BLB-16-16GT

The Weidmüller IE-SW-BLB-16-16GT is a 16-port unmanaged switch with all 16 ports on 10/100/1000BaseT(X) and a 32 Gbit/s backplane behind them. Two redundant supply inputs and two 1 A relay contacts for power-fault and status signalling suit it to cabinet aggregation where a lost supply leg has to be reported back to the controller.

• Ports: 16 x RJ45, 10/100/1000BaseT(X), auto-negotiation and auto MDI/MDI-X
• Transmission speed: Gigabit Ethernet, 32 Gbit/s backplane bandwidth
• SFP slots: None
• Supply voltage: 12/24/48 V DC (9 to 60 V DC) or 24 V AC (18 to 30 V AC)
• Supply inputs: 2 redundant inputs, reverse polarity and overload protection
• Current consumption: 0.42 A at 24 V DC
• Alarm contact: 2 relay outputs, 1 A at 24 V DC (power fault and signalling)
• MTBF: 541,611 h at 25 °C (Telcordia SR-332)
• Operating temperature: −40 °C to +75 °C
• Dimensions (W x H x D): 44 x 144 x 95 mm
• Mounting: DIN rail, or panel mounting with the optional kit
• Housing: Metal, 647 g
• Protection degree: IP30
• Approvals: cULus (E141197), ATEX Zone 2, RoHS
