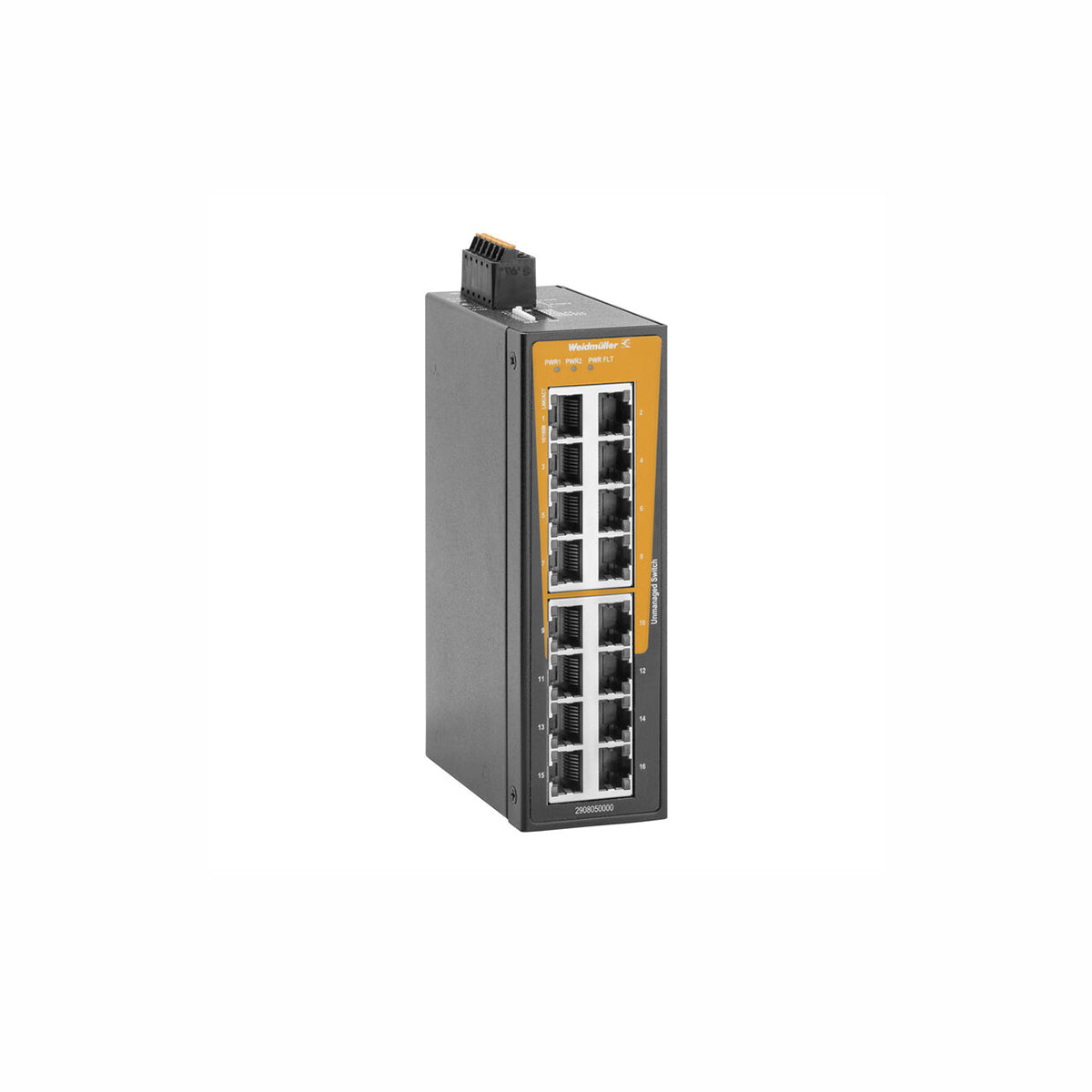

16 x RJ45 Port Unmanaged Network Switch, Fast Ethernet (10/100Mbs) - IE-SW-BLB-16-16TX
Ask an expert!
- IP Rating
- Size
Standards & certifications
IP20Ingress protection
The Weidmüller IE-SW-BLB-16-16TX is a 16-port Fast Ethernet unmanaged DIN rail switch from the BLB series, consolidating the successor roles of both the EcoLine EL16-16TX and ValueLine VL16-16TX into a single product. With high port density, PROFINET Conformance Class A support, and a full suite of industrial and maritime certifications, it is well suited to larger panel builds requiring cost-effective, high-count copper connectivity in water treatment, transportation, oil and gas, and renewable energy applications.
| Part Number | 2908050000 |
|---|---|
| Model | IE-SW-BLB-16-16TX |
| Ports | 16 x RJ45 (10/100BASE-TX) |
| Ethernet Standard | Fast Ethernet |
| Switching | Unmanaged |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to +75°C |
| Mounting | DIN rail (optimised clip) |
| Power Connection | PUSH-IN terminal blocks |
| Certifications | CE, UL, DNV, LR, ABS, RINA, BV, IECEx, ATEX, CCCEx |
| PROFINET | Conformance Class A (QoS + LLDP frame blocking) |
| Supersedes | IE-SW-EL16-16TX (2682150000), IE-SW-VL16-16TX (1241000000), IE-SW-VL16T-16TX (1286590000) |
| Brand | Weidmüller |
- Single SKU replaces three EOL products across EcoLine and ValueLine series
- High port density — 16 x RJ45 in a compact DIN rail form factor
- PROFINET Conformance Class A capable for time-sensitive industrial network applications
- Maritime and hazardous area certifications included as standard — no separate variant required
- PUSH-IN terminal blocks and optimised DIN-rail clip for faster commissioning
Available from TROPAC Australia — contact our team for pricing and availability.
