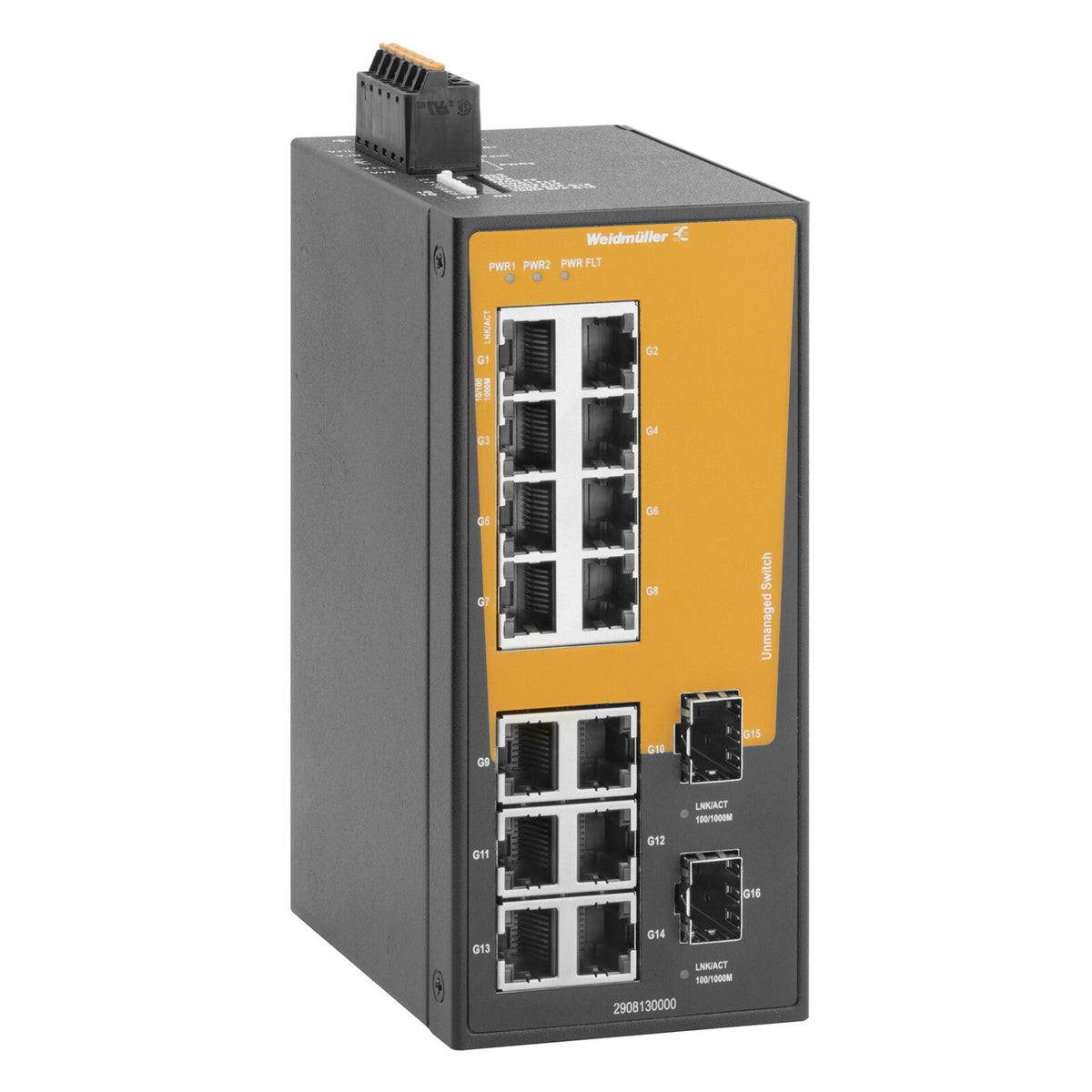

16 PORT (14 X RJ45, 2 X SFP SLOT) UNMANAGED NETWORK SWITCH, GIGABIT ETHERNET - IE-SW-BLB-16-14GT-2GESFP

The Weidmüller IE-SW-BLB-16-14GT-2GESFP is a 16-port unmanaged gigabit switch that splits its capacity between 14 x RJ45 copper ports and 2 x 100/1000BaseSFP slots, so fibre uplinks are built in rather than bolted on. A 32 Gbit/s backplane, two redundant supply inputs and two 1 A signalling relays make it the fibre-capable counterpart to the all-copper IE-SW-BLB-16-16GT.

• Ports: 14 x RJ45, 10/100/1000BaseT(X), auto-negotiation and auto MDI/MDI-X
• SFP slots: 2 x 100/1000BaseSFP
• Transmission speed: Gigabit Ethernet, 32 Gbit/s backplane bandwidth
• Supply voltage: 12/24/48 V DC (9 to 60 V DC) or 24 V AC (18 to 30 V AC)
• Supply inputs: 2 redundant inputs, reverse polarity and overload protection
• Current consumption: 0.43 A max. at 24 V DC
• Alarm contact: 2 relay outputs, 1 A at 24 V DC (alarming and signalling)
• MTBF: 532,312 h at 25 °C (Telcordia SR-332)
• Operating temperature: −40 °C to +75 °C
• Dimensions (W x H x D): 65 x 144 x 95 mm
• Mounting: DIN rail or panel mounting
• Housing: Metal, 746 g
• Protection degree: IP30
• Approvals: cULus (E141197), cULus Ex (E223527), ATEX Zone 2, RoHS
