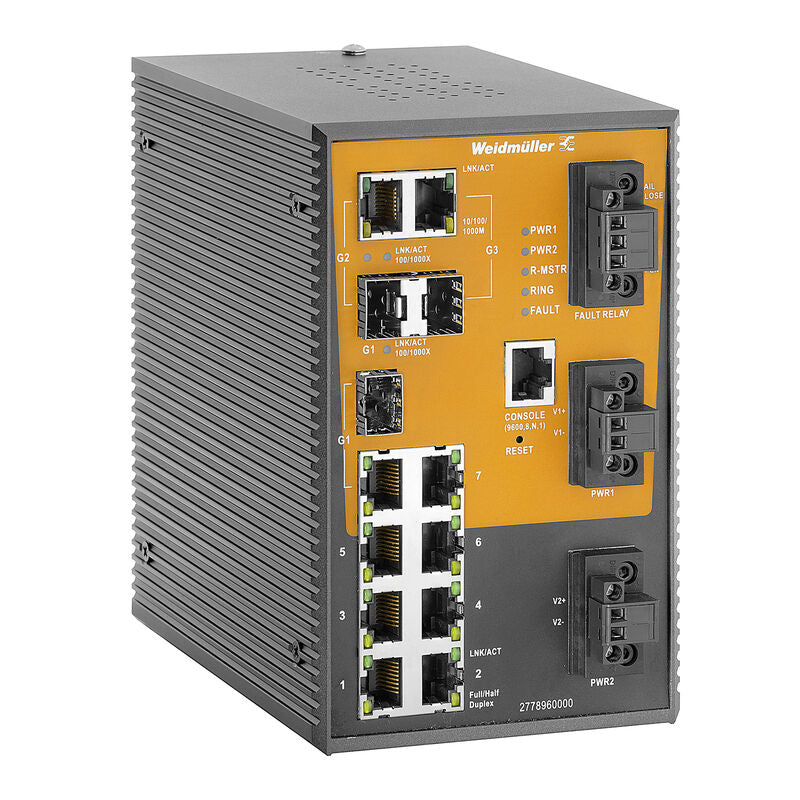

10 PORT (7 X RJ45, 3 X COMBO SFP) MANAGED NETWORK SWITCH, IEC 61850-3, 12/24/48VDC - IE-SW-SL10M-7TX-3GC-LV

The Weidmüller IE-SW-SL10M-7TX-3GC-LV is a DIN rail managed Ethernet switch with seven 10/100 RJ45 ports and three Gigabit combo ports that take either RJ45 copper or an SFP module. The "M" marks the managed version and the "LV" the low voltage DC input, and with IEC 61850-3 and IEEE 1613 compliance plus a -40 °C to +85 °C range it is aimed at substation, utility and outdoor cabinet duty rather than a clean control room.

• Ports: 7 x RJ45 10/100BASE-T(X), 3 x combo 10/100/1000BASE-T(X) or 100/1000Base SFP
• PoE: Not supported
• Supply voltage: 48 V DC nominal, 2 redundant inputs
• Input range: 12 to 52 V DC
• Standards: IEC 61850-3, IEEE 1613; SELV to EN 62368-1
• Management: VLAN (up to 4095), RSTP, SNMP v1/v2c/v3, IGMP v2/v3
• Operating temperature: -40 °C to +85 °C
• Protection degree: IP30
• Mounting and size: DIN rail; 96.4 x 154 x 148.5 mm (W x H x D)
