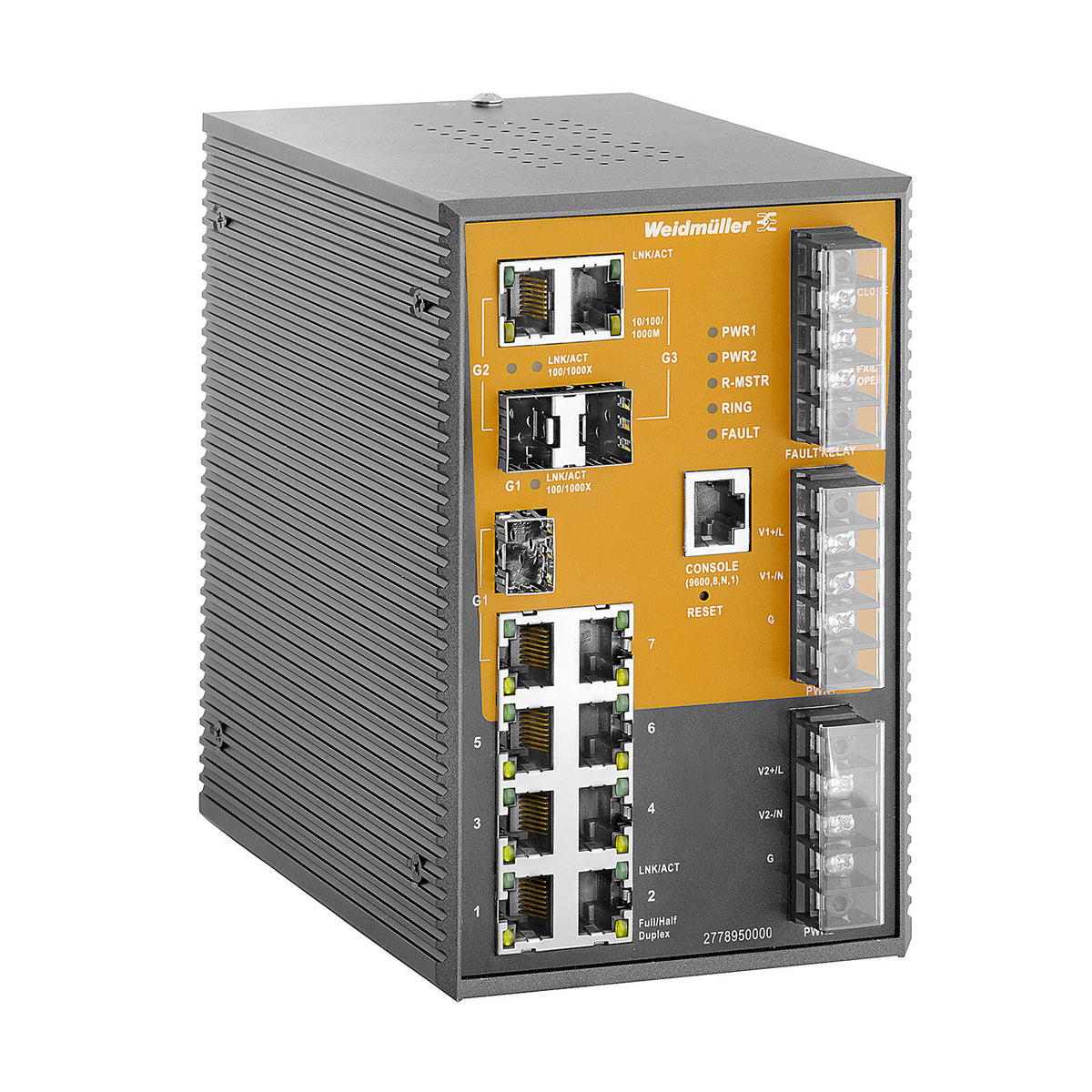

10 Port (7 x RJ45, 3 x Combo SFP) Managed Network Switch, IEC 61850-3, 110/230V AC/DC - IE-SW-SL10M-7TX-3GC-HV

Weidmüller IE-SW-SL10M-7TX-3GC-HV Layer 2 managed switch from the SubstationLine range, certified to IEC 61850-3 and IEEE 1613 for use in power transmission and distribution. The HV variant runs directly from a 110/220 V station supply, AC or DC, on two isolated redundant inputs — no separate 24 V supply needed in the panel.

• Ports: 7 x RJ45 10/100BASE-T(X), 3 x combo ports (10/100/1000BASE-T(X) or 100/1000BaseSFP)
• Speed: Fast Ethernet and Gigabit Ethernet, auto-negotiation and MDI/MDI-X
• Substation standards: IEC 61850-3, IEEE 1613
• Industrial protocols: PROFINET conformance class device
• Management: web browser (HTTP/HTTPS), SNMP v1/v2c/v3, RMON
• VLAN: up to 4095 VLANs
• Redundancy: STP, RSTP, MSTP, O-Ring, O-Chain
• Supply voltage: 110/220 V DC (88…373 V DC) or 110/220 V AC (85…264 V AC), two isolated redundant inputs
• Operating temperature: −40 °C to +85 °C
• Humidity: 5–95 % non-condensing
• Dimensions (W x H x D): 96.4 x 154 x 148.5 mm
• Mounting: DIN rail
• Protection degree: IP30
