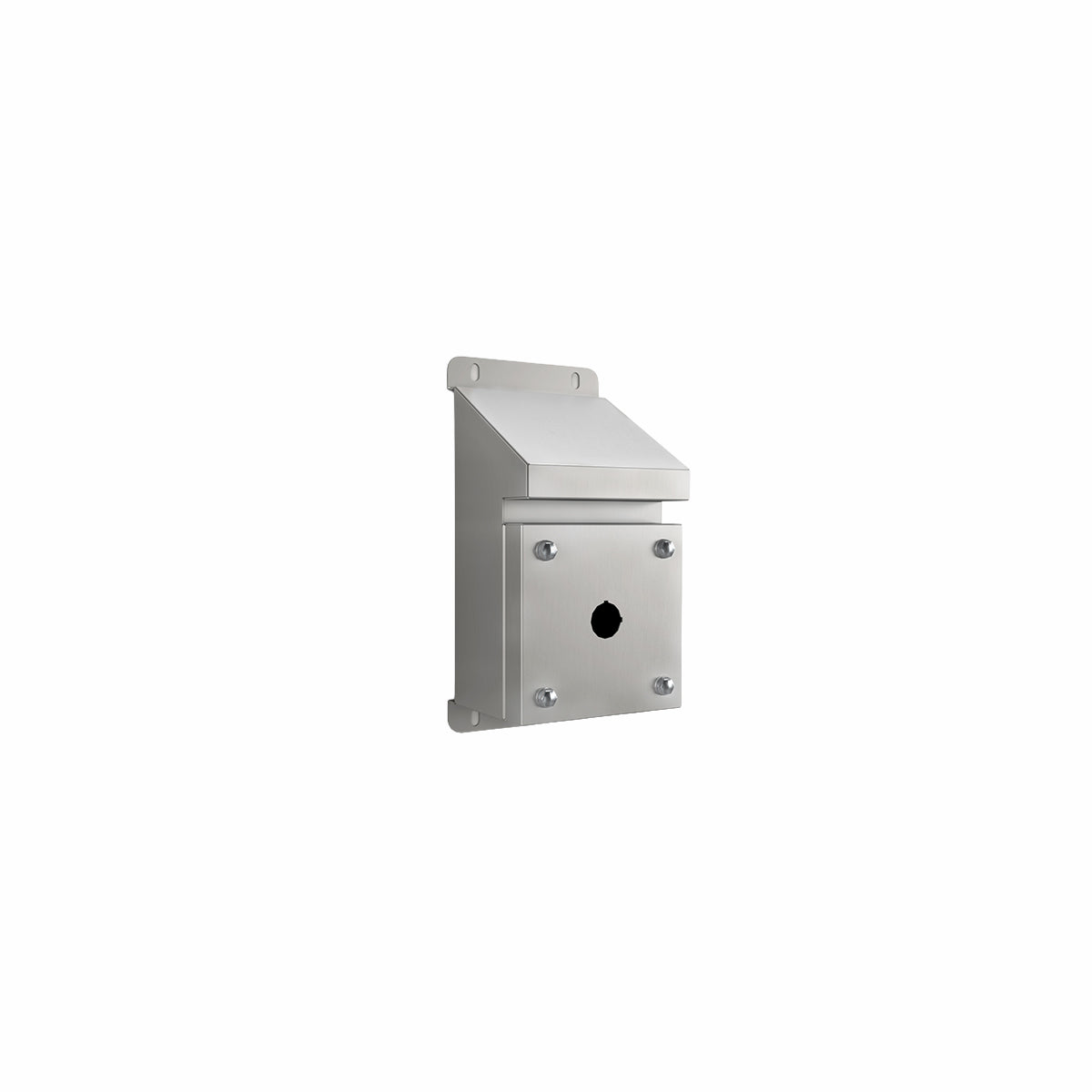

IP Enclosures SSP Sloped Roof Stainless Steel Pushbutton Enclosure

The SSP Sloped Roof Stainless Steel Pushbutton Enclosure is engineered for harsh industrial environments. The sloped roof design improves water runoff and protects pushbuttons from dust, debris, and chemical exposure. It is suitable for mining, marine, food processing, and heavy industrial applications.

This enclosure is available with Ø22.5mm or Ø30.5mm pre drilled holes. Choose from 1 hole, 2 hole, 3 hole, 4 hole, or 6 hole configurations to suit your control panel requirements.

Key Features

• Sloped roof design for superior water and debris runoff
• External mounting flanges for secure installation
• High resistance to corrosion and harsh chemicals
• Manufactured in Italy using premium materials
• 5 year manufacturer warranty

Protection Ratings

• IP66
• IP67
• IP69K
• NEMA 4X

Standards and Compliance

• IEC / EN / AS 60529
• UL 508A
• RoHS Compliant

Materials

• Body: 1.0mm Grade 316 Stainless Steel
• Lid / Door: 1.0mm Grade 316 Stainless Steel
• Seal: Silicone
• Washers: NBR 70 (Nitrile Butadiene Rubber)

Construction

Body: Fabricated from 1.0mm Grade 316 stainless steel in a robust monoblock design. The sloped roof extends past the pushbuttons for added environmental protection. Top and bottom external mounting flanges support secure installation in demanding industrial and mining environments.

Lid / Door: Pre drilled and secured with screws fitted with NBR 70 washers. Designed for use in environments where hydrocarbons and aggressive substances are present.

Seal: High quality silicone seal provides long term protection against moisture and contaminants.

Technical Specifications

• Surface Finish: 0.4 micron Ra brushed finish
• Hole Configuration: 1 x Ø22.5mm
• Mass: 1.12 kg

Manufactured to strict quality, safety, and environmental standards.

Warranty: 5 Years
