Pushbutton Enclosure 1 Hole , Orange
Ask an expert!
- Material
- Colour / Finish

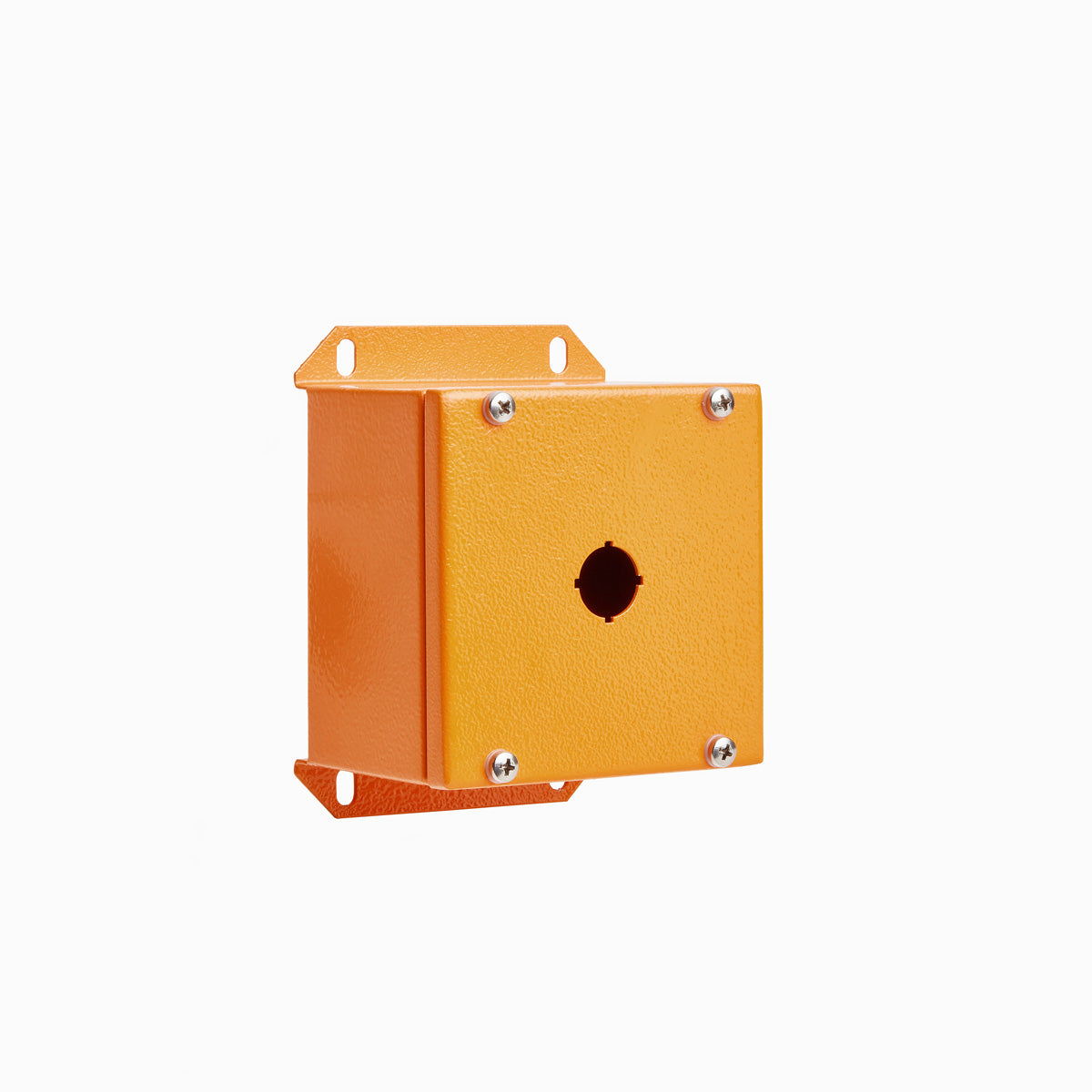

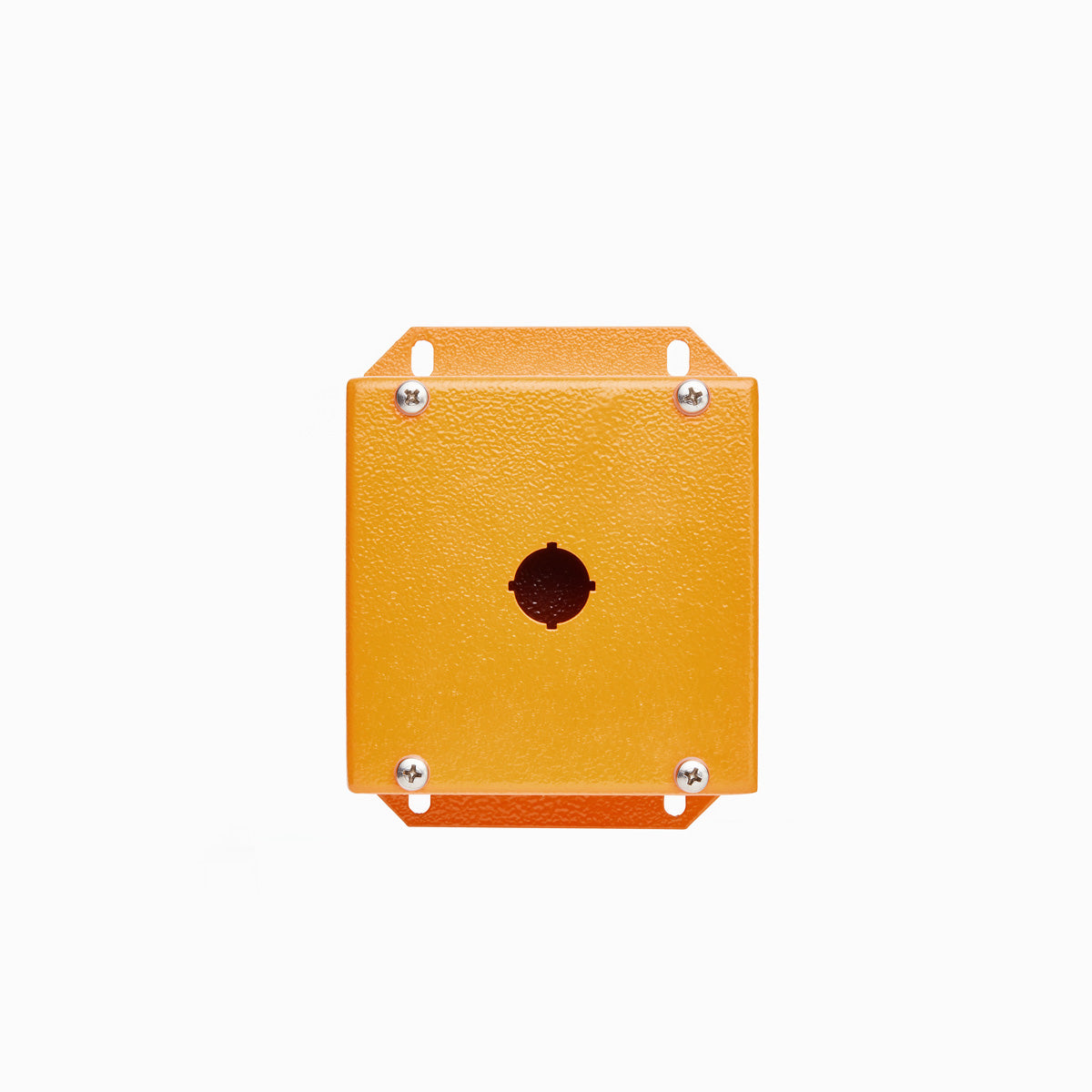

Pushbutton Enclosure 1 Hole , Orange
IP Enclosures pushbutton enclosures are suitable for extreme duty heavy industrial applications. They incorporate 22mm diameter holes and are available in 1 hole, 2 hole, 3 hole, 4 hole and 6 hole configurations with a flat roof or a sloping roof. We can also provide them with no hole for custom applications if required.
Features & Specifications
Protection: Complies with IP66
Standard: IEC/EN/AS60529, RoHS
Material:
– Body: Galvanised steel sheet
– Lid/Door: Galvanised steel sheet
– Seal: Polyurethane
Body:
The robust monoblock body is fabricated using galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Integral mounting feet to suit M6 fasteners are provided.
Lid/Door:
The robust door is fabricated using galvanised steel sheetand incorporates a polyurethane seal and M5 fasteners.
Seal:
A high quality machine-applied full perimeter Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life.
Surface Protection:
UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL2000.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
