Anti-Condensation Fan Heater 250 Watt
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details

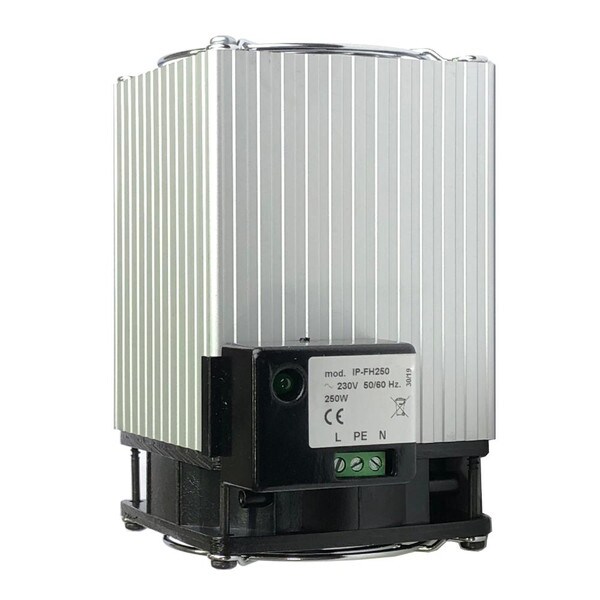

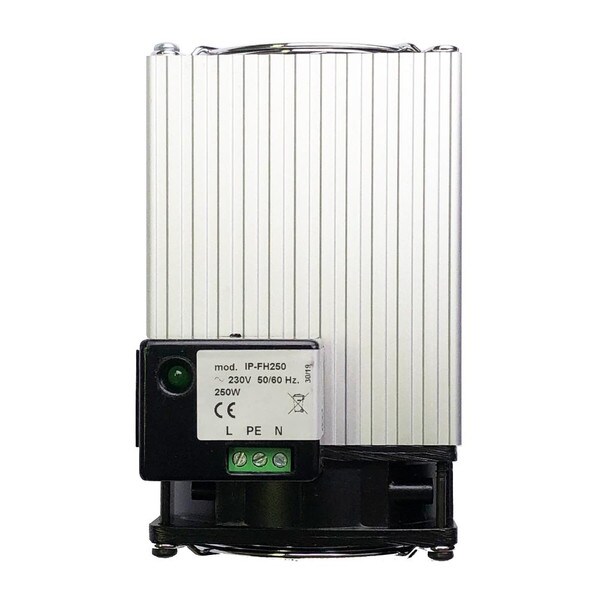

Anti-Condensation Fan Heater 250 Watt
High quality Italian 250W fan assisted resistor heater for electrical enclosures.
| Features | Unit | IP-FH250 |
|---|---|---|
| Heating Capacity | W | 250 |
| Power supply | V/Hz | 230/50-60 |
| Max. current | A | 1.2 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Ball bearing; service life 50.000 hrs at 25°C (77°F) air flow rate 35 m³/h; free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class I earthed |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -25/+70 (-13/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 135x112x82 |
| Weight (with packaging) | kg | 0.88(0.94) |
| Conformity | – | CE – UL  |
