Electronic Thermo-Hygrostat 0/+60°C 30-90 RH%

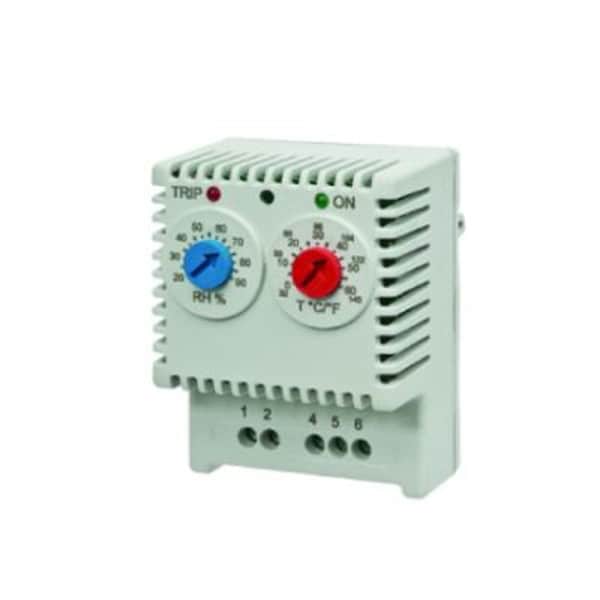

Electronic Hygrothermostat for DIN 35mm rail mounting. Typically used to control enclosure heaters. The change over contact triggers either for high humidity or low temperature, independently set adjustable with LED display of power on and status.
| Features | Unit | IP-ETH1 |
|---|---|---|
| Power supply | V/Hz | 230/50-60 |
| Temperature setting range | °C | 0/+60 |
| Precision | °C | ±1 |
| Temperature Hysteresis | °C | 2 |
| Relative Humidity setting range | RH% | 30-90 |
| Relative Humidity Hysteresis | % | 5 |
| Reaction time | sec | 60 |
| Max. switching current | ||
| NO at 250Vac resistive load | A | 10 |
| NO at 30Vdc resistive load | A | 8 |
| NO at 240Vac motor load | Hp | 1/2 |
| NO at 120Vac motor load | Hp | 1/4 |
| NC at 250Vac resistive load | A | 10 |
| NC at 30Vdc resistive load | A | 8 |
| Contact type | – | Change over |
| Contact resistance | mOhm | < 10 |
| Service life n. cycles | cycles | > 100.000 |
| Electrical connections | – | 5-pole terminal for 2.5 mm² wire |
| Optical signal | – | LED |
| Casing | – | PA6; UL94 V0 self-estinguishing; light grey RAL 7035 |
| Protection degree EN60529 | – | IP20 |
| Operating/Storage temperature | °C (°F) | -40/+80 (-40/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Vertical |
| Conformity | – | CE – UL  FILE N. E348803 |
| Dimensions HxWxD | mm | 68x53x38 |
| Weight | g | 105 |
