Filter Vent 150 x 150

$‎23.07
 inc. GST
QuantityPrice
1 – 19$‎23.07
20 – 49$‎22.49
50 – 99$‎21.34
100 +$‎20.19
SKU: IP-V2000
BRAND: IP Enclosures

This item is IN STOCK

Current Stock: 1583

QLD: 741 in stock
NSW: 407 in stock
VIC: 435 in stock
Back

Details

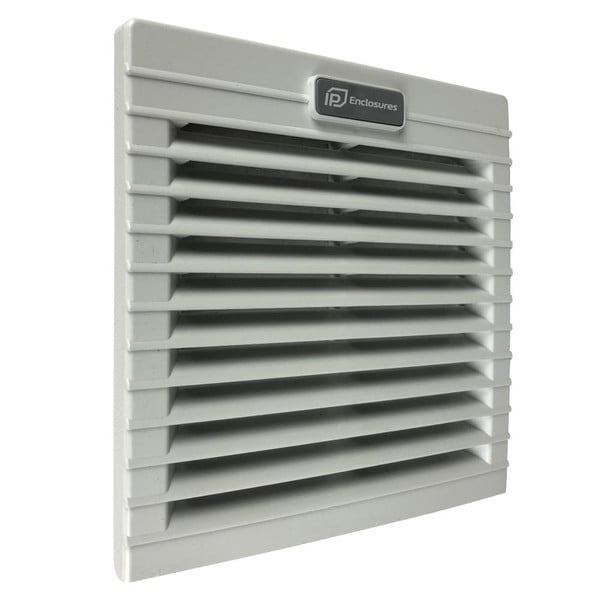

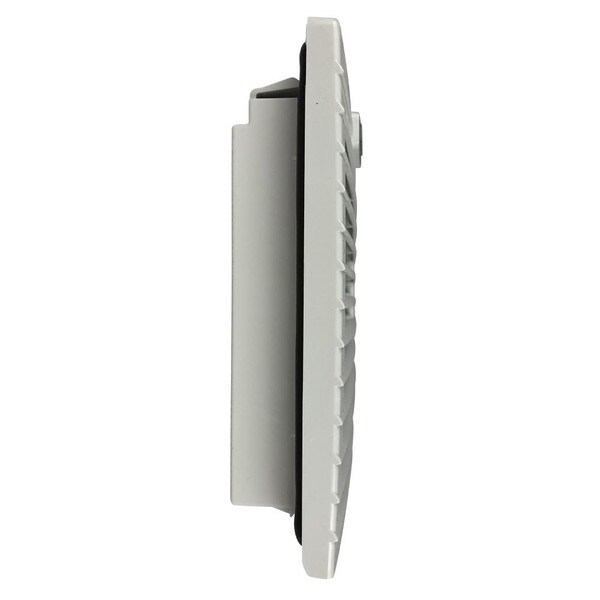

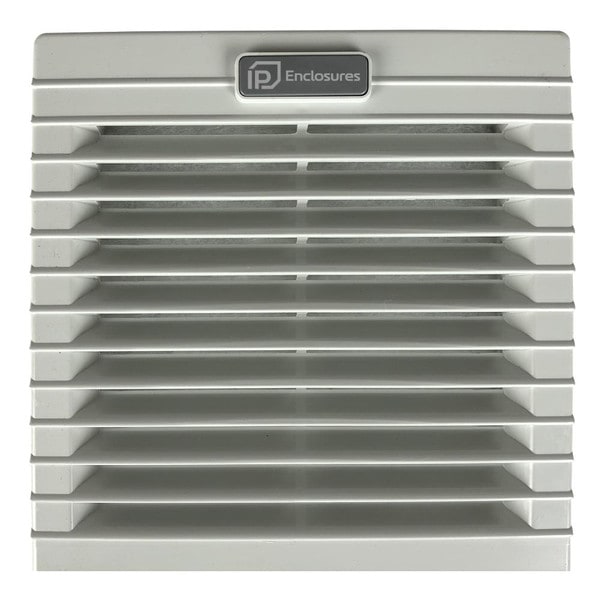

Filter Vent 150 x 150

High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.

G3 Filter Mat Included.

FeaturesUnitIP-V2000
Air flow rate (free blow)m³/h–
Flow rate with exit filterm³/h–
Power supplyV/Hz–
Dimensions HxLxPmm150x150x37
Power consumptionW–
Current consumptionA–
Overcurrent consumption––
Electric connection––
Duty cycle––
Operating temperature°C– 10 / +70 (+14 / +158)
Protection degree/class–IP54
Noise leveldB(A)–
Flow direction––
Bearing––
Filter mat (Eurovent)–G3
Service life (at 40°C)hr–
Material–ABS UL94V-0 Color RAL7035
Wall thicknessmm1.2-2.4
Gasket–foam seal gasket
Weight (with packaging)kg0.18 (0.23)
Package dimensionsmm165x165x45
Montaggio–fast clip-on
Cut-Out dimensionsmm124×124
Conformity/Approvals–CE
