Filter Vent 204 x 204

$55.92
 inc. GST
SKU: IP-V3000
BRAND: IP Enclosures

This item is IN STOCK

Current Stock: 107

QLD: 99 in stock
NSW: 7 in stock
VIC: 1 in stock
Back

Details

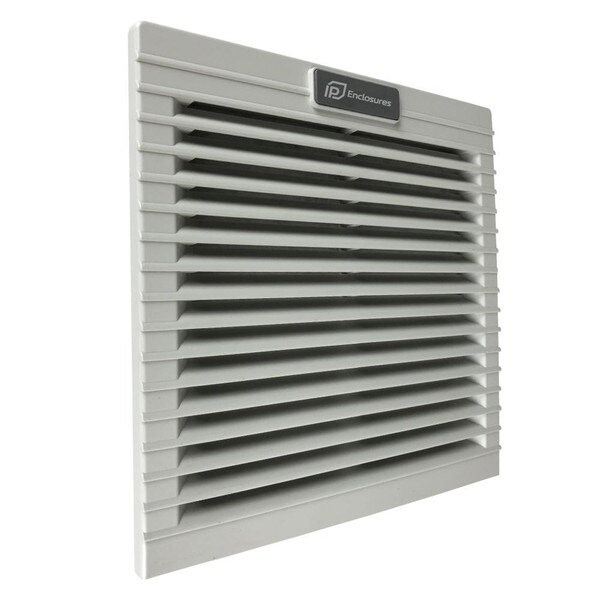

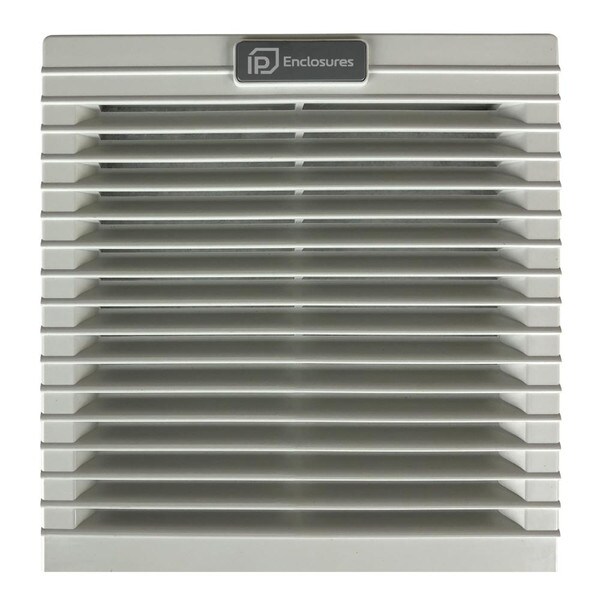

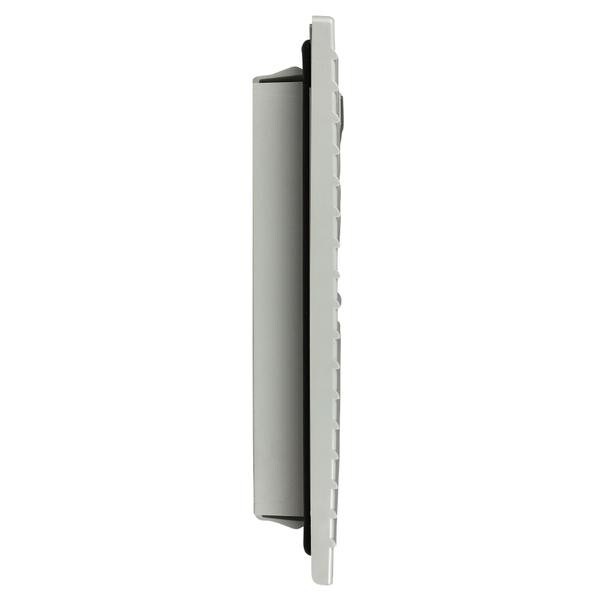

Filter Vent 204 x 204

High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.

G3 Filter Mat Included.

FeaturesUnitIP-V3000
Air flow rate (free blow)m³/h–
Flow rate with exit filterm³/h–
Power supplyV/Hz–
Dimensions HxLxPmm204x204x37
Power consumptionW–
Current consumptionA–
Overcurrent consumption––
Electric connection––
Duty cycle––
Operating temperature°C– 10 / +70 (+14 / +158)
Protection degree/class–IP54
Noise leveldB(A)–
Flow direction––
Bearing––
Filter mat (Eurovent)–G3
Service life (at 40°C)hr–
Material–ABS UL94V-0 Color RAL7035
Wall thicknessmm1.2-2.4
Gasket–foam seal gasket
Weight (with packaging)kg0.32(0.42)
Package dimensionsmm220x220x43
Montaggio–fast clip-on
Cut-Out dimensionsmm177x177
Conformity/Approvals–CE
