Filter Fan 150 x 150 58m3/hr 230V

SKU

In stock

Stock on hand

0 in stock

8 in stock

129 in stock

Updated just now

$127.32 ex. GST $140.05 inc. GST

Free Shipping

Ask an expert!

Chat Email 1300876722

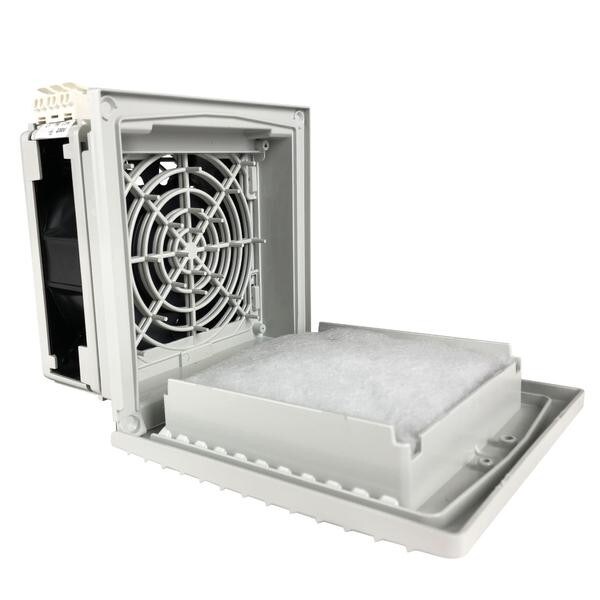

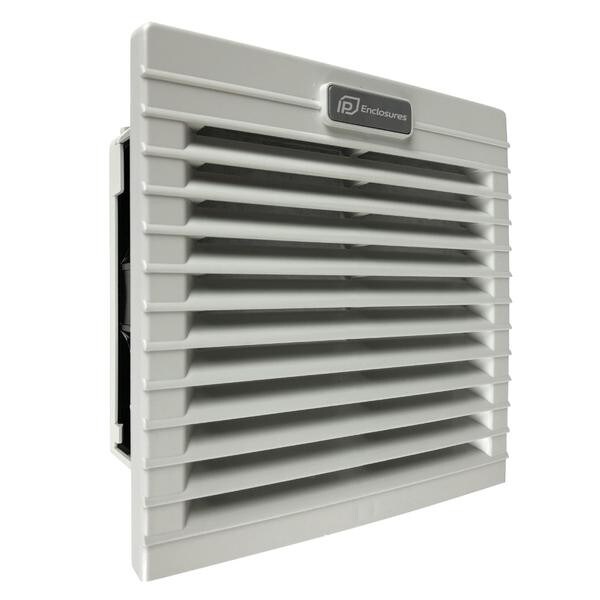

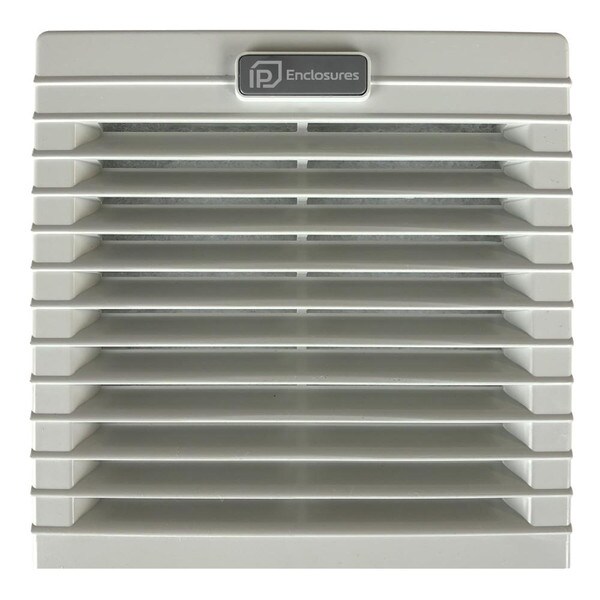

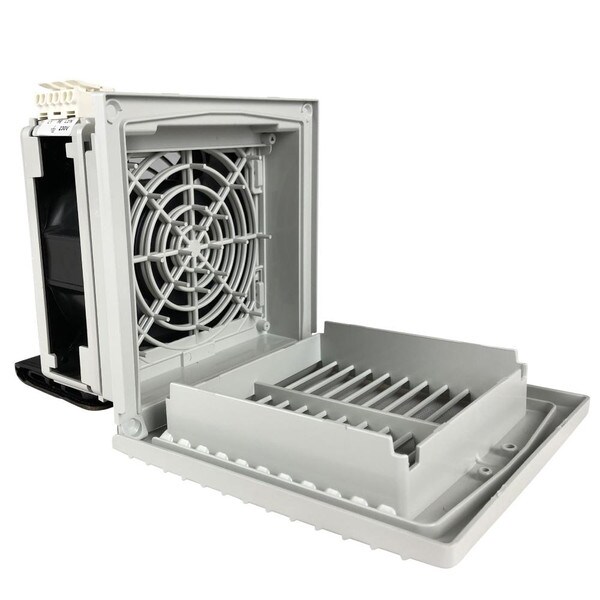

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

Features	Unit	IP-V2200
Air flow rate (free blow)	m³/h	58 (64)
Flow rate with exit filter	m³/h	43 (48)
Power supply	V/Hz	230 / 50-60
Dimensions HxLxP	mm	150x150x86
Power consumption	W	22 (21)
Current consumption	A	0.14 (0.12)
Overcurrent consumption	–	impedance

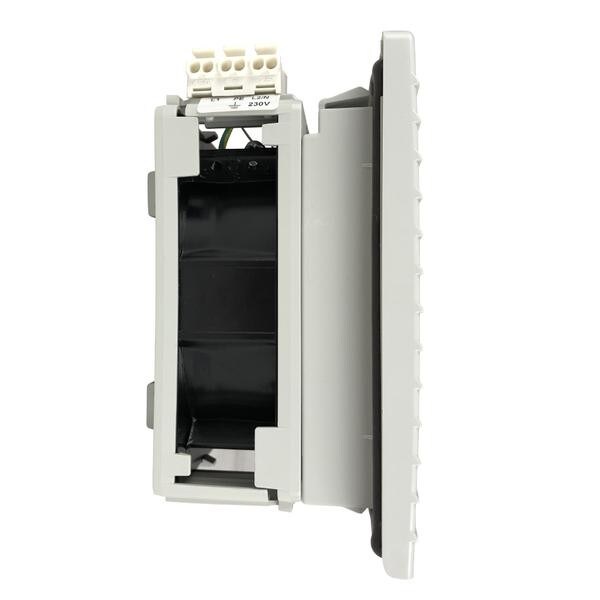

Electric connection	–	3-poles spring terminals
Duty cycle	–	100%
Operating temperature	°C	– 10 / +70 (+14 / +158)
Protection degree/class	–	IP54/Class I
Noise level	dB(A)	43 (49)
Flow direction	–	reversible: default factory setting outside-in
Bearing	–	ball
Filter mat (Eurovent)	–	G3
Service life (at 40°C)	hr	50 000
Material	–	ABS UL94V-0 Color RAL7035
Wall thickness	mm	1.2-2.4
Gasket	–	foam seal gasket
Weight (with packaging)	kg	0.76 (0.83)
Package dimensions	mm	165x165x90
Montaggio	–	fast clip-on
Cut-out dimensions	mm	125×125
Conformity/Approvals	–	CE
