Filter Vent 114 x 114 — IP Enclosures

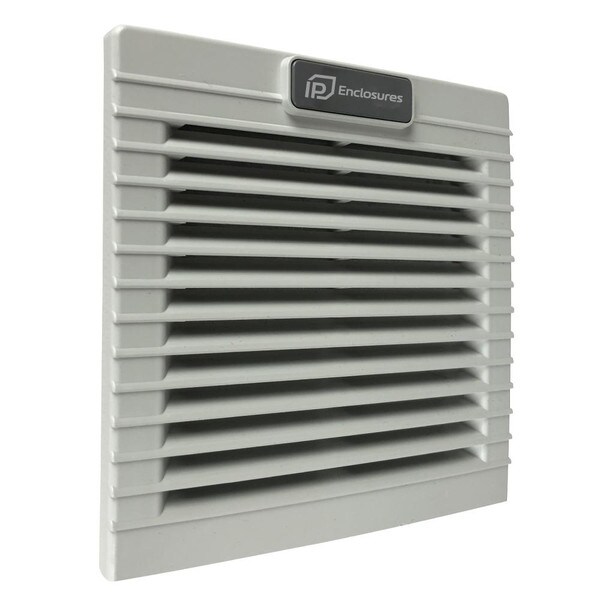

IP-V1000 - image 2

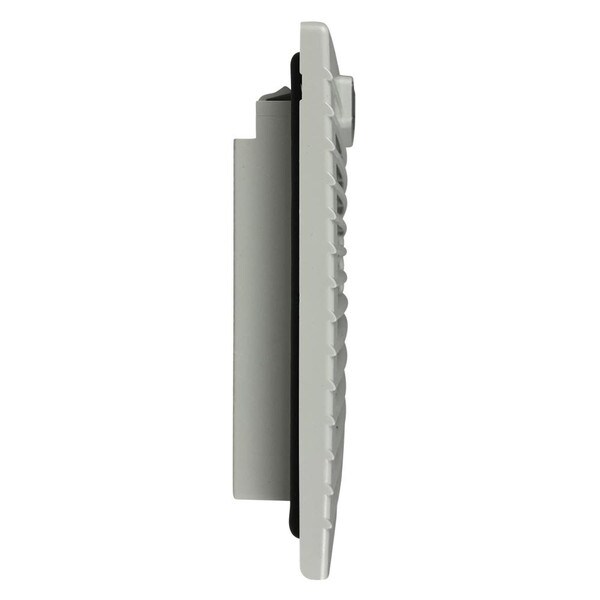

IP-V1000 - image 3
Filter Vent 114 x 114 — IP Enclosures
IP-V1000 - image 2
IP-V1000 - image 3

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Filter Vent 114 x 114

SKU
In stock
Stock on hand
NSW WarehouseAuburn, NSW 2144
55 in stock
QLD WarehouseBells Creek, QLD 4551
360 in stock
VIC WarehouseEpping, VIC 3076
106 in stock
Updated just now
Shipping & pickup →
$19.97 ex. GST $21.97 inc. GST
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 114
  • Width (mm) 114
  • Colour Grey
  • IP & IK Rating IP54

Filter Vent 114 x 114

High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.

G3 Filter Mat included.

Features Unit IP-V1000
Air flow rate (free blow) m³/h –
Flow rate with exit filter m³/h –
Power supply V/Hz –
Dimensions HxLxP mm 114x114x27
Power consumption W –
Current consumption A –
Overcurrent consumption – –
Electric connection – –
Duty cycle – –
Operating temperature °C – 10 / +70 (+14 / +158)
Protection degree/class – IP54
Noise level dB(A) –
Flow direction – –
Bearing – –
Filter mat (Eurovent) – G2
Service life (at 40°C) hr –
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 0.09 (0.11)
Package dimensions mm 125x125x35
Montaggio – fast clip-on
Cut-Out dimensions mm 92×92
Conformity/Approvals – CE
