Filter Vent 250 x 250

SKU
Restocking
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated 1 minute ago
Shipping & pickup →
$56.41 ex. GST $62.05 inc. GST
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Dimensions (H×W×D) 250
  • Width (mm) 250
  • IP & IK Rating IP54
  • Colour Grey (RAL7035)
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG

Filter Vent 250 x 250

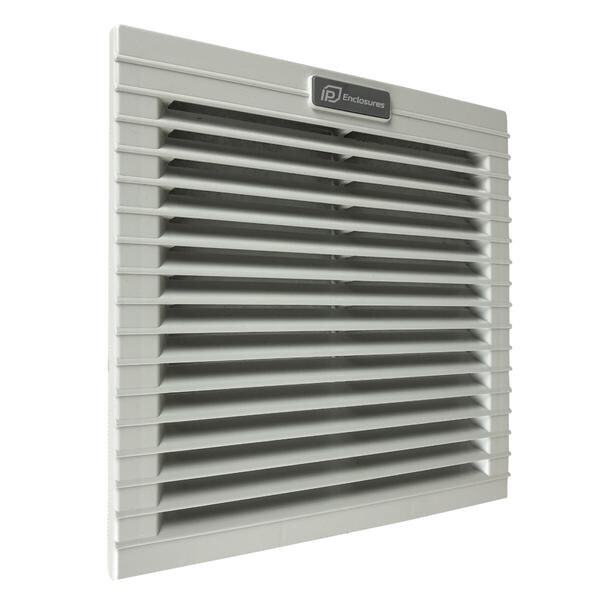

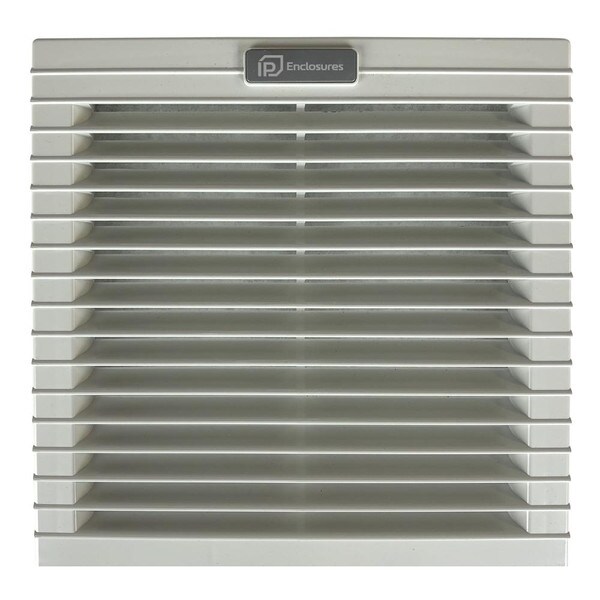

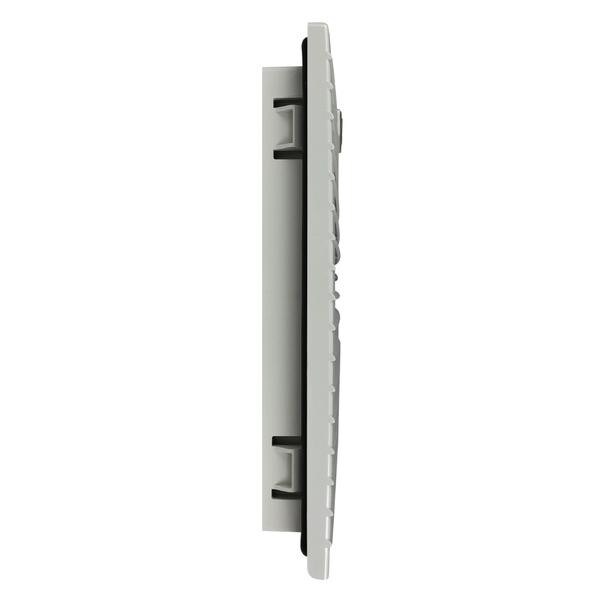

High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.

G3 Filter Mat Included.

Features Unit IP-V4000
Air flow rate (free blow) m³/h -
Flow rate with exit filter m³/h -
Power supply V/Hz -
Dimensions HxLxP mm 250x250x38
Power consumption W -
Current consumption A -
Overcurrent consumption - -
Electric connection - -
Duty cycle - -
Operating temperature °C - 10 / +70 (+14 / +158)
Protection degree/class - IP54
Noise level dB(A) -
Flow direction - -
Bearing - -
Filter mat (Eurovent) - G3
Service life (at 40°C) hr -
Material - ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket - foam seal gasket
Weight (with packaging) kg 0.52(0.62)
Package dimensions mm 270x270x45
Montaggio - fast clip-on
Cut-Out dimensions mm 224x224
Conformity/Approvals - CE
